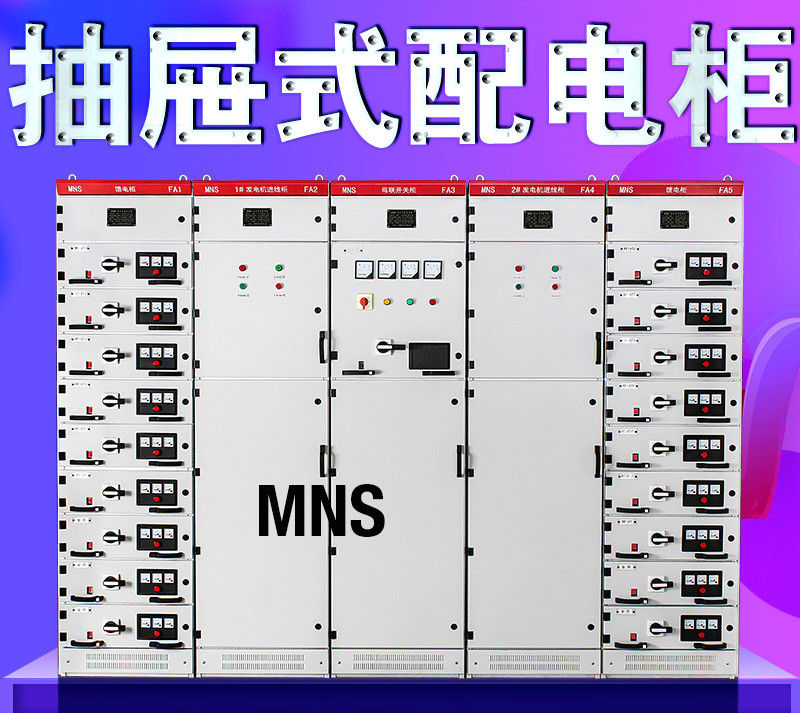

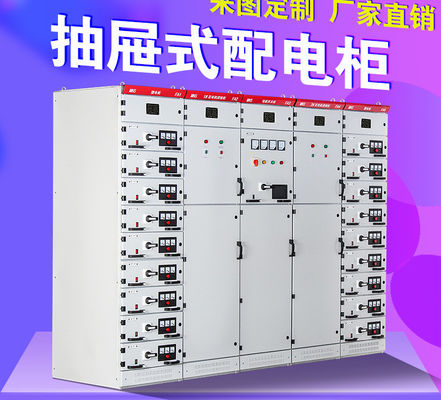

MNS Low Voltage Electrical Distribution Box Drawer - Out Switchgear Commercial Industrial

MNS Low Voltage Electrical Distribution Box Drawer - Out Switchgear Commercial Industrial
MNS Low Voltage Electrical Distribution Box Drawer - Out Switchgear Commercial Industrial MNS Low Voltage Electrical Distribution Box Drawer - Out Switchgear Commercial Industrial MNS Low Voltage Electrical Distribution Box Drawer - Out Switchgear Commercial Industrial MNS Low Voltage Electrical Distribution Box Drawer - Out Switchgear Commercial Industrial

Large Image :  MNS Low Voltage Electrical Distribution Box Drawer - Out Switchgear Commercial Industrial

Product Details:
Place of Origin: China
Brand Name: None
Model Number: MNS
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: USD1,200~USD20,000
Packaging Details: Standard export carton/crate wood box
Delivery Time: 5-8 working days or bulk order negotiate
Payment Terms: T/T, Western Union
Supply Ability: 300pcs/month
Detailed Product Description
Certification: CE Material: Cold Rolled Sheet Steel
Color: White,gray,RAL 7035 Application: To Protect Circuit Breakers Installed In The Panel Box,Indoor Or Outdoor,Industrial
Type: Distribution Box,Power Distribution System Protection Level: IP54
Rated Voltage: 220/380V,120V/240V Standard: IEC60439-3
Rated Current: 630A-4,000A Function: Electrical Distribution Or Motor Control Center
Working Temperature: -40 To +80 Degrees Centigrade Name: Distribution Cabinet/Power Electric Meter Box
Mounting Type: Flush Or Surface
High Light:

electrical power distribution box

,

industrial power distribution board

MNS Low Voltage Drawer-out Type Switchgear up to 4,000A for Commercial and Industrial Electrical Distribution IEC 61439





MNS Drawer Type Low-voltage Switchboard

MNS system are suitable for applications in all fields concerning the generation, distribution and use of electrical energy, e. g., they can be used as: Main and sub-distribution boards for energy and Motor current supply of Motor Control Centers
• Utility companies
• Power plants
• Oil refineries
• Off-shore drilling platforms
• Production facilities
• Buildings for other than dwelling purposes.

The MNS system is full complied with GB7251.1, IEC 439-1, EN 60 439-1, VDE 0660 part 500, BS 5486 Part 1 and UTE 63-410



MNS switchgear assembly is of scalable design, enabling ABB to supply integrated solutions for today's challenging business environment. It is the leading technology combining maintenance-free frame structures and busbars, a fully modular construction and the capability to integrate feeder, motor starter, variable speed drives, power factor compensation etc. and even UPS technologies in safety focused, space saving and project-optimized manner.

Main benefits

  • Unmatched safety for protection of personnel and plant exceeding standard requirements

  • Reduced operational expenditure through maintenance free bus bar design

  • Increased availability through modular design using withdrawable, plug-in, compact or fixed functional units

  • Reliable, flexible and scalable fully accessible from the front

  • Space saving design with compact, back-to-back or duplex arrangement

Main features

  • Fully certified to IEC 61439-1/-2 low-voltage switchgear assembly up to 690V, up to 6300A, up to 100kA

  • Passive arc protection criteria 1 to 7, tested acc. IEC TR 61641 Ed.3 criteria 1 to 7, arc proof certified up to 690V, 100kA

  • Modular construction, extendable at both ends and reconfiguration capabilities

  • Ease of operation with closed doors and single handle operation

  • Segregation up to form 4b



Main technical data

No.

Item

Unit

data

1

Rated voltage

V

Up to 690

2

Rated current for system

A

4000(special to 6300A)

3

Rated current for busbar

Horizontal Busbar

A

Busbar 6300 *extremely*

1600 @+40ºC

Vertical Busbar

4

Rated frequency

HZ

2000*Note*

5

Power frequency with voltage 1min

kV

8

6

Rated Short-timeWithstand Current

Horizontal Busbar

kA/1S

55-100/105-250

60/130-150

Vertical Busbar

7

Over voltage class

III

8

Pollution Degree

3

9

Protection Degree

IP30/IP40/IP54

10

Outline Dimensions(H*W*D)

mm

2200×600(800/1000)×600(800/1000)

Note:
1. The current of vertical busbar is extremely up to 2000A@+35ºC,(+40ºC with cooler) .
2. Protection Degree of IP54 is taken into consideration for special design if needed.

MNS Low Voltage Electrical Distribution Box Drawer - Out Switchgear Commercial Industrial 0

MNS Low Voltage Electrical Distribution Box Drawer - Out Switchgear Commercial Industrial 1

MNS Low Voltage Electrical Distribution Box Drawer - Out Switchgear Commercial Industrial 2

MNS Low Voltage Electrical Distribution Box Drawer - Out Switchgear Commercial Industrial 3

MNS Low Voltage Electrical Distribution Box Drawer - Out Switchgear Commercial Industrial 4
