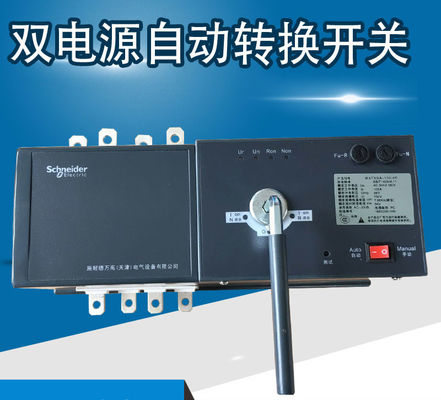

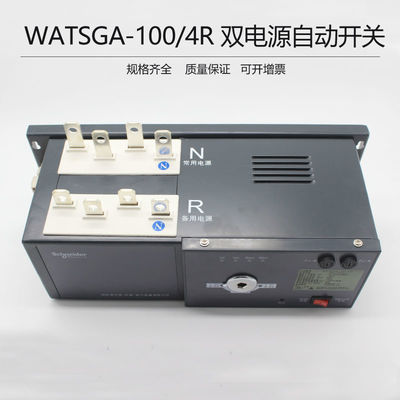

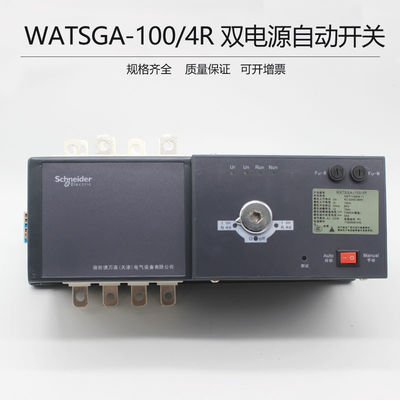

WATSG ATS Automatic Transfer Switch PC Class Self - Recovery Field Adjustable

WATSG ATS Automatic Transfer Switch PC Class Self - Recovery Field Adjustable

    • WATSG ATS Automatic Transfer Switch PC Class Self - Recovery Field Adjustable
    • WATSG ATS Automatic Transfer Switch PC Class Self - Recovery Field Adjustable
    • WATSG ATS Automatic Transfer Switch PC Class Self - Recovery Field Adjustable
    • WATSG ATS Automatic Transfer Switch PC Class Self - Recovery Field Adjustable
  • WATSG ATS Automatic Transfer Switch PC Class Self - Recovery Field Adjustable

    Product Details:

    Place of Origin: China
    Brand Name: Schneider Electric
    Certification: CE
    Model Number: WATSG

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: USD300~USD2,000/unit
    Packaging Details: Standard export carton
    Delivery Time: 5-8 working days bulk order negotiate
    Payment Terms: T/T, Western Union
    Supply Ability: 200pcs/month
    Contact Now
    Detailed Product Description
    Max. Current: 630A Max. Voltage: 690V
    Pole: 2P,3P,4P Rated Voltage: 380V,220V/400V,440,690
    Rated Current: 32~100A,100~630A Product Name: Dual Power Automatic Transfer Switch ATS
    Color: White,black Frequency: AC 50 Hz/60Hz
    Operation Type: Manual Operation,Auto&Manual Standard: IEC60947-6-1
    High Light:

    3 phase automatic transfer switch

    ,

    ats power automatic transfer switch

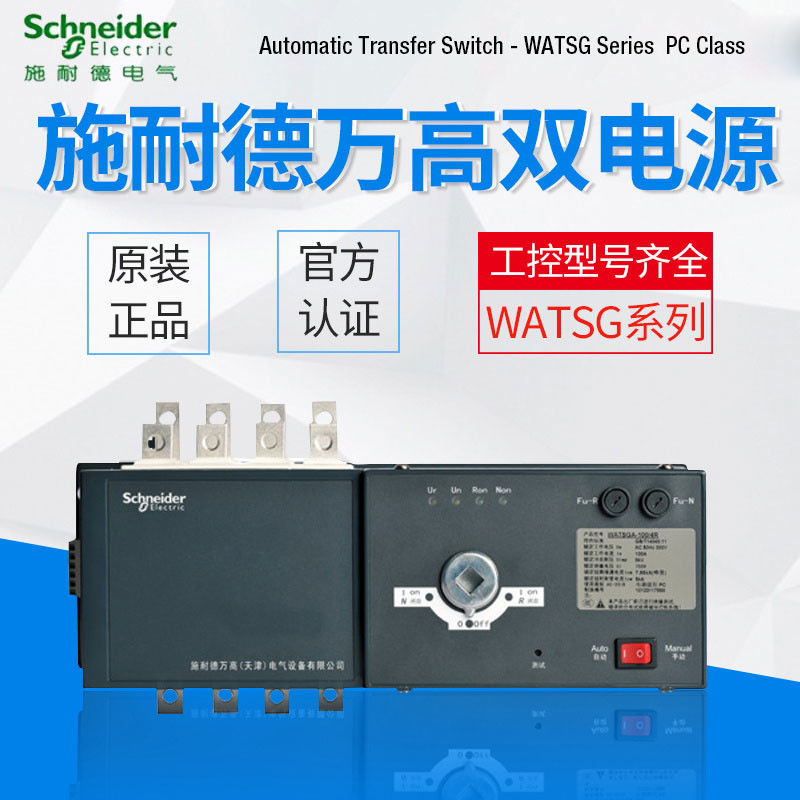

    Schneider Electric WATSG Automatic Transfer Switch PC class, 3P, 4P, 32~800A IEC-60947-6-1





    The brand-new WATSG, following the excellent quality of ATS from Schneider Electric, ensures the power continuity and safety to the utmost capacity, as well as optimizes the electric energy management.



    WATSGadopts Acti 9 iINT or NSX-NA switch, with current level of 32-800A. Its integrated design has increased its reliability greatly. In addition, a standard trip is installed, which provides effective protection when there is a failure. The multiple mechanical and electrical interlocks totally ensure the transfer reliability.



    WATSG provides multiple operation modes, such as automatic change and automatic recovery, automatic change and manual recovery, standby for each other, manual control, etc. The isolated power module of WATSG can improve the voltage withstand level.



    Two types of WATSG controllers with powerful functions provide customers with more choices.
    Type A Controller (built-in): supports the transfer between two commercial power sources, with adjustable transfer delay time.
    Type B Controller (external): besides the functions of Type A Controller, supports the transfer between commercial power source and generator, with parameter settings and displays on controller panel and with communication function as an option.



    WATSG meets IEC and GB standards, and passes CCC certification and EMC (Electromagnetic compatibility) testing.





    Wide range of applications

    Used in AC220V, AC380V systems
    Self-recovery, self-recovery, self-recovery, mutual standby, three working modes, field adjustable
    Easy access to intelligent monitoring systems

    High performance products

    High breaking capacity (CB level)
    Use breaking capacity equal to 100% limit breaking capacity (CB level)
    High current limiting, economical full selectivity (CB level)
    High short-circuit capability and rated short-time withstand capability (PC grade)
    Convenient connection and installation
    Horizontal loading without vertical demolition
    Downline does not need to derate

    Higher reliability

    Misconnected neutral alarm
    Conversion unsuccessful signal self-cut function

    Intelligent communication

    Configure RS485 communication interface, Modbus-RTU communication protocol
    Can realize remote signaling, telemetry, remote control, remote adjustment "four remote functions"





    WATSG-32

    WATSG-63

    WATSG-100

    WATSG-125

    WATSG-160

    WATSG-200



    3,4

    3,4

    3,4

    3,4

    3,4

    3,4





    400

    400

    400

    400

    400

    400



    750

    750

    750

    750

    750

    750



    8000

    8000

    8000

    8000

    8000

    8000



    5kA

    5kA

    5kA

    10kA

    10kA

    10kA



    7.65kA

    7.65kA

    7.65kA

    17kA

    17kA

    17kA



    100KA

    100KA

    100KA

    100KA

    100KA

    100KA



    50KA

    50KA

    50KA

    50KA

    50KA

    50KA



    10000

    10000

    10000

    10000

    10000

    10000



    6000

    6000

    6000

    6000

    6000

    6000



    12

    12

    12

    12

    12

    12





    Optional

    Optional

    Optional

    Optional

    Optional

    Optional





    WATSG-250

    WATSG-320

    WATSG-400

    WATSG-500

    WATSG-630

    WATSG-800



    3,4

    3,4

    3,4

    3,4

    3,4

    3,4





    400

    400

    400

    400

    400

    400



    750

    750

    750

    750

    750

    750



    8000

    8000

    8000

    12000

    12000

    12000



    10kA

    10kA

    10kA

    16kA

    16kA

    16kA



    17kA

    17kA

    17kA

    32kA

    32kA

    32kA



    100KA

    100KA

    100KA

    100KA

    100KA

    100KA



    50KA

    50KA

    50KA

    50KA

    50KA

    50KA



    10000

    10000

    10000

    10000

    10000

    10000



    6000

    6000

    6000

    2500

    2500

    2500



    12

    12

    12

    12

    12

    12





    Optional

    Optional

    Optional

    Optional

    Optional

    Optional



    WATSG ATS Automatic Transfer Switch PC Class Self - Recovery Field Adjustable 0

    WATSG ATS Automatic Transfer Switch PC Class Self - Recovery Field Adjustable 1
