Plug - In Industrial Electrical Controls Electromagnetic Power Relay 8 11 14 Pin Coil 12V 24V 230V

Plug - In Industrial Electrical Controls Electromagnetic Power Relay 8 11 14 Pin Coil 12V 24V 230V

    • Plug - In Industrial Electrical Controls Electromagnetic Power Relay 8 11 14 Pin Coil 12V 24V 230V
    • Plug - In Industrial Electrical Controls Electromagnetic Power Relay 8 11 14 Pin Coil 12V 24V 230V
    • Plug - In Industrial Electrical Controls Electromagnetic Power Relay 8 11 14 Pin Coil 12V 24V 230V
    • Plug - In Industrial Electrical Controls Electromagnetic Power Relay 8 11 14 Pin Coil 12V 24V 230V
  • Plug - In Industrial Electrical Controls Electromagnetic Power Relay 8 11 14 Pin Coil 12V 24V 230V

    Product Details:

    Place of Origin: China
    Brand Name: Chint
    Certification: CE,CCC etc.
    Model Number: JZX-22F/JQX-13F etc.

    Payment & Shipping Terms:

    Minimum Order Quantity: 12pcs
    Price: USD3~USD6/unit
    Packaging Details: Standard export carton
    Delivery Time: 5-8 working days or bulk order negotiate
    Payment Terms: T/T, Western Union
    Supply Ability: 100,000pcs/month
    Contact Now
    Detailed Product Description
    Product Name: Plug-in Electromagnetic Power Relay Type: Industrial Control Components
    Coil Volt: DC12V, DC24V, AC230V Rated Current: 10A, 5A,3A
    Contact Form: 2 C/O, 3C/O, 4C/O Similar Models: LY2(N), HH62P(-L)
    High Light:

    ac contactor switch

    ,

    home ac contactor

    Industrial Control Plug-in Electromagnetic Power Relay JZX/JQX 8-pin,11-pin,14-pin coil 12V, 24V, 230V Chint





    Presentation of the range


    The JQX/JZX miniature relay range comprises:
    1 10A(JQX) or 5/3A(JZX) relays with 2~4 C/O contacts. All these relays
    have the same dimensions.
    2 Sockets with mixed or separate contact terminals.
    3 Protection modules (diode, RC circuit, or varistor) common to all sockets.
    4 A metal maintaining clamp for all sockets.
    5 A plastic maintaining clamp for all sockets.
    6 A 2-pole bus jumper that can be used on sockets with separate contact terminals
    in order to simplify cabling when creating an equipotential link between the coil
    terminals.



    Relay description


    1 Spring return pushbutton for testing the contacts (green: c, red: a).
    2 Mechanical “relay status” indicator.
    3 Removable lock-down door enabling forced maintaining of the contacts for test
    sequences or maintenance purposes.
    4 LED (depending on version) indicating the relay status.
    5 Removable legend for relay identification.
    6 Four notches for rail mounting adapter or panel mounting adapter with fixing lugs.
    7 Eight, eleven, or fourteen Faston type pins.
    8 Area by which the product can be easily gripped.
    9 Mounting adapter enabling direct mounting of the relay on a panel.
    10 Mounting adapter enabling direct mounting of the relay on a DIN rail.


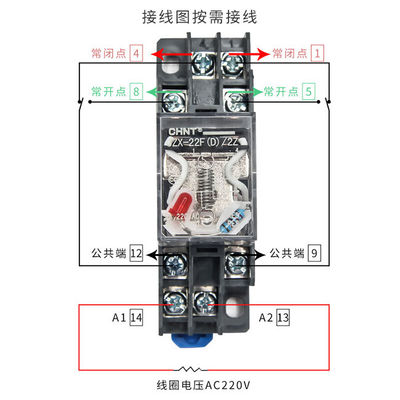

    Socket description


    Sockets with mixed contact terminals (1)
    1 Connection by screw clamp terminals or screw connector.
    2 Fourteen female contacts for the relay pins.
    3 Location for protection modules.
    4 Locking components for plastic and metal maintaining clamps.
    5 Locating slot for mounting on DIN rail with its compression spring or fixing clip.
    6 Two or four fixing holes for panel mounting.



    main information
    Product Series
    JZX-22F / JQX-13F
    Serial Number
    Small
    product type
    Plug-in relay
    Product short name
    JZX / JQX
    Contact type
    2/3/4 C+O
    Control loop voltage
    12/24 V DC  230V AC
    Rated load current in the housing [Ithe]
    10A / 6 A on -40...55 °C
    LED status
    Have
    Control type
    Lock test button
    Utilization factor
    20%
    Additional information
    Pin type
    Flat
    Rated insulation voltage [Ui]
    250 V compliant with IEC
    300 V compliant with CSA
    300 V compliant with UL
    Rated impulse withstand voltage [Uimp]
    2.5 kV at 1.2/50 μs
    Contact material
    AgNi
    Rated operating current [Ie]
    3 A on 28 V (DC) NC IEC compliant
    3 A on 250 V (AC) NC IEC compliant
    6 A on 28 V (DC) NO in accordance with IEC
    6 A on 250 V (AC) NO compliant with IEC
    6 A on 277 V (AC) UL compliant
    8 A on 30 V (DC) in line with UL
    Maximum switching voltage
    250 V compliant with IEC
    Resistive rated load
    6 A on 250 V AC
    6 A on 28 V DC
    Maximum switching capacity
    1500 VA/168 W
    Minimum switching capability
    170 mW on 10 mA, 17 V
    Working rating
    <=1200 times/hour underload
    <=18000 times/hour without load
    Mechanical life
    10000000 times
    Electrical life
    100000 times for resistive (load) load
    Average coil consumption in W
    0.9 W
    Pressure drop threshold
    >= 0.1 Uc
    Operate time
    20 ms
    Release time
    20 ms
    Average coil resistance
    650 Ω on 20 °C +/- 10 %
    Rated operating voltage limit
    19.2...26.4 V DC
    Safe and reliable data
    B10d = 100000
    Type of protection
    RT I
    Test level
    Class A
    Operating position
    any position

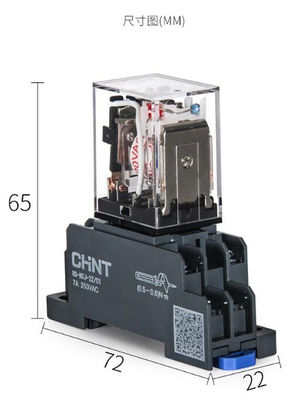

    CAD total height
    82.8 mm
    CAD total depth
    80.35 mm
    product weight
    0.037 kg
    Equipment introduction
    Product (non-parts)
    surroundings
    Insulation performance
    1300 V AC contact and micro-break insulation
    Between 2000 V AC coil and contact and reinforced insulation
    Between 2000 V AC poles and basic insulation
    certified product
    CE
    RoHS
    Standards compliant
    EN/IEC 61810-1
    UL 508
    CSA C22.2 No 14
    Storage ambient temperature
    -40...85 °C
    Ambient temperature
    -40...55 °C
    Vibration resistant
    3 gn, amplitude = +/- 1 mm (f = 10...150 Hz) 5 cycles, in operation
    5 gn, amplitude = +/- 1 mm (f = 10...150 Hz) 5 cycles, not working
    IP protection level
    IP40 complies with EN/IEC 60529
    Impact resistance
    10 gn for operation
    30 gn for non-operation
    Pollution level
    2

    Plug - In Industrial Electrical Controls Electromagnetic Power Relay 8 11 14 Pin Coil 12V 24V 230V 0

    Plug - In Industrial Electrical Controls Electromagnetic Power Relay 8 11 14 Pin Coil 12V 24V 230V 1

    Plug - In Industrial Electrical Controls Electromagnetic Power Relay 8 11 14 Pin Coil 12V 24V 230V 2

    Applications

    Market target

    • Industrial machines
    • Machines and building or medical equipement
    • Packaging machines
    • Textile machines
    • HVAC

    Applications

    • Simple hard-wired logic control system cycles
    • Extra feature for industrial PLCs
