| Product Name: | Manual Motor Starter, Motor Protection Circuit Breaker | Rated Voltage: | 440/690,230/400V, 500V AC 50/60Hz |
|---|---|---|---|
| Setting Current: | 0.1-0.16~25-32A | Poles Number: | 3P |
| Breaking Capacity: | 10-50kA | Material: | Plastic,High Standard Plastic Silver Copper,Nylon PA66 |
| Installation: | Fixed And Plug-in | Standard: | IEC 60947-2 |
| High Light: | molded case circuit breaker,electric circuit breaker |
||
Schneider Electric GV2-ME Manual Motor Starters 3 Pole 0.1~32A 230/400V 440V Icu up to 50kA in compliance with IEC 60947

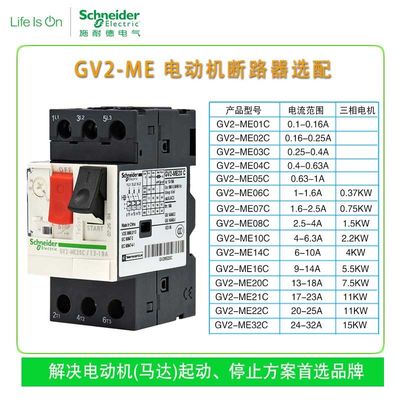

GV2-ME, GV3 manual motor starters / Motor Protection Circuit Breaker
characteristic
When the motor breaker operates by itself, it can be manually controlled (can be controlled by button control or knob), and can be remotely controlled when connected to the contactor;
The protection of the motor is provided by a circuit breaker integrated with a thermal relay-electromagnetic device;
All live parts are protected from direct touch by the front panel;

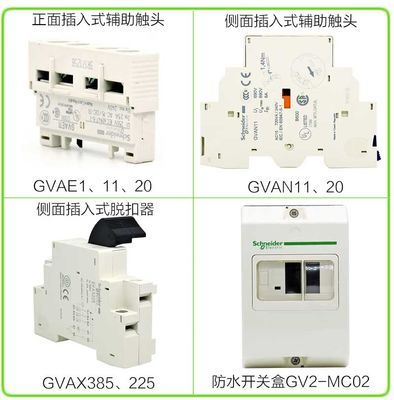

With an undervoltage trip module, the circuit breaker can be disconnected under undervoltage conditions;
With a shunt trip module, the disconnection of the component can be remotely controlled;
The manipulators of the open-mounted and enclosed motor breakers can be locked in the "N/C" position using three padlocks.
Warranty period: 18 months
Advantage
A product that is very protective

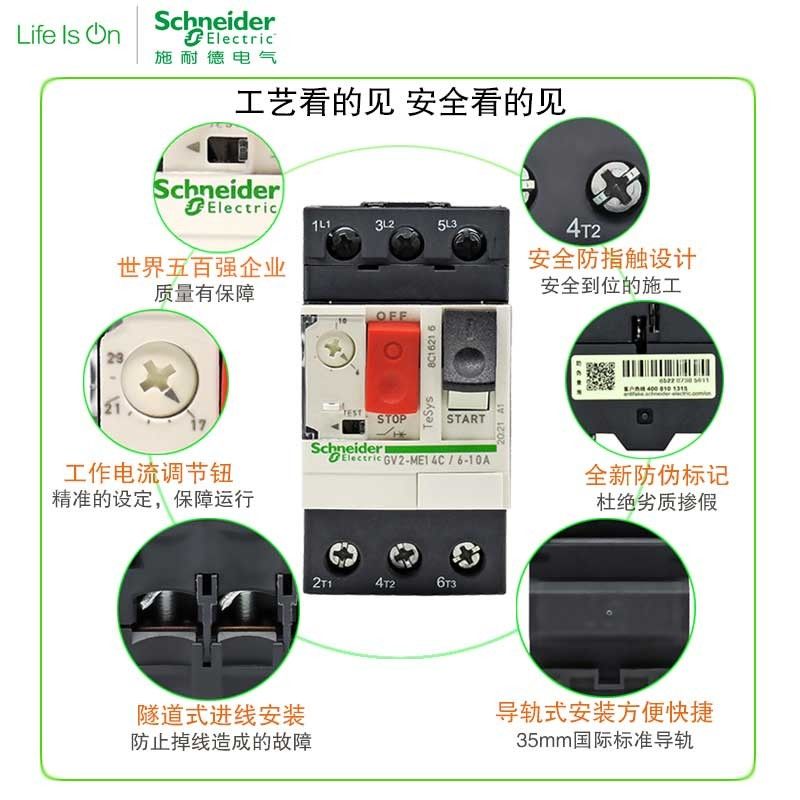

Compact and compact, the TeSys GV2 motor circuit breaker is only 45mm wide and is classified according to different types of performance and functions such as control type, breaking capacity, motor protection components and accessories.
application
Motor control and protection performance in accordance with IEC 947-2 and IEC 947-4-1 standards;
It is conveniently mounted on any device and is screwed or clamped to the rail.
|
Product Series |
TeSys |
|---|---|
|
product name |
GV2 |
|
Product short name |
GV2ME |
|
product type |
breaker |
|
Applications |
Motor protection |
|
Number of poles |
3P |
|
Network Type |
AC |
|---|---|
|
Network frequency |
50/60 Hz in accordance with IEC 60947-2 |
|
Control type |
(press type) button |
|
Installation method |
Rail mounting |
|
Installation location |
vertical |
|
Motor power (kW) |
1.5 kW on 440 V AC 50/60 Hz |
|
Rated current [In] |
4 A |
|
Trip unit type |
Thermal magnetic |
|
Electromagnetic trip current |
51 A |
|
Thermal overload protection setting range |
2.5...4 A |
|
Isolation function |
Applicable to IEC 60947-1 § 7-1-6 |
|
Mechanical shock resistance |
0.5 J IK04 |
|
Phase loss sensitivity |
Is in accordance with IEC 60947-4-1 § 7-2-1-5-2 |
|
Use category |
AC-3 complies with IEC 60947-4-1 |
|
Rated working voltage [Ue] |
690 V AC 50/60 Hz in accordance with IEC 60947-2 |
|
Rated insulation voltage [Ui] |
600 V AC 50/60 Hz in accordance with UL 508 |
|
Rated impulse withstand voltage [Uimp] |
6 kV in accordance with IEC 947-2 |
|
Power consumption per pole |
2.5 W |
|
Mechanical life |
100000 times |
|
Electrical life |
100000 times for AC-3 on 440 V In |
|
Maximum number of conversions |
25 cyc/h |
|
specified load |
Continuously in accordance with IEC 60947-4-1 |
|
Wiring ability |
Power circuit: Screw press-in terminal 2 1...6 mm2 Cable selection: Single-strand hard wire without wire terminal |
|
Tightening torque |
1.7 Nm through screw-in terminal cable 1...4 mm2 |
|
Breaking capacity |
Icu: >= 100 kA on 230/240 V AC 50/60 Hz in accordance with IEC 60947-2 |
|
Rated use short circuit breaking capacity [Ics] |
75 % on 690 V AC 50/60 Hz in accordance with IEC 60947-2 |
|
height |
89 mm |
|
width |
44.5 mm |
|
depth |
78.2 mm |
|
product weight |
0.26 kg |
|
Standards compliant |
GB 14048.4 |
|---|---|
|
certified product |
CCC |
|
Protective measures |
TH |
|
IP protection level |
IP20 complies with IEC 60529 (ontology) |
|
Shock and vibration resistance |
Impact resistance 11 ms (30 gn) in accordance with IEC 60068-2-27 |
|
Ambient temperature |
-20...40 °C inside the cabinet |
|
Storage ambient temperature |
-40...80 °C |
|
Refractory and resistant to abnormal high temperatures |
960 °C in accordance with IEC 60695-2-1 |
|
Working elevation |
<= 2000 m |
