DZ47s Miniature Circuit Breaker , Electric Circuit Breaker 1~63A 80~125A

DZ47s Miniature Circuit Breaker , Electric Circuit Breaker 1~63A 80~125A

    • DZ47s Miniature Circuit Breaker , Electric Circuit Breaker 1~63A 80~125A
    • DZ47s Miniature Circuit Breaker , Electric Circuit Breaker 1~63A 80~125A
    • DZ47s Miniature Circuit Breaker , Electric Circuit Breaker 1~63A 80~125A
    • DZ47s Miniature Circuit Breaker , Electric Circuit Breaker 1~63A 80~125A
  • DZ47s Miniature Circuit Breaker , Electric Circuit Breaker 1~63A 80~125A

    Product Details:

    Place of Origin: China
    Brand Name: Delixi
    Certification: CE, CCC etc.
    Model Number: DZ47s

    Payment & Shipping Terms:

    Minimum Order Quantity: 12pcs / 1doz.
    Price: USD2~30/unit
    Packaging Details: standard in carton box
    Delivery Time: 2~15days
    Payment Terms: T/T, Western Union
    Supply Ability: 100,000 pcs/month
    Contact Now
    Detailed Product Description
    Model: DZ47s Pole(s): 1,2,3,4
    Volt: 1P,2P-220/230/240V, 3P,4P-380~415V Hz: 50~60Hz
    Phase: 1/3 Standard: EN/IEC60898, IEC60947
    Certification: CCC, CE, GS Etc. Breaking Capacity: Ics=Icn=6000A
    Thermal Trip Curve: B,C,D Case Material: Nylon PA6 Recyclable
    Wiring: Terminal Block, Busbar Duct Etc. IP20B Electric Shock Protection: Class II
    Mechanical Life: 20,000 Electrical Life: 10,000
    High Light:

    industrial type circuit breaker

    ,

    molded case circuit breaker

    Delixi DZ47s Miniature Circuit Breaker 1~63A, 80~125A, 1P,2P,3P,4P for Circuit Protection AC230/400V Use





    MCB DZ47s

    AC Use Miniature Circuit Breakers 1~63 A, 80~125A,



    Miniature Circuit Breakers for AC Current circuits, offering terminal distribution installation protection



    The DZ47s is a miniature circuit breaker that offers AC current circuit protection. It protects circuits against short-circuit currents and overload currents.

    DZ47s mini circuit breaker is used in lighting distribution system or motor distribution system for protection overload and short-circuit in the system. The product is neoteris in structure, light in weight, reliable and excellent in performance. It has high breaking capacity, can trip quickly, and its case and items are adopted by high fire-resistant and shockproof plastics. The product with long life, is mainly used in AC 50Hz/60Hz single-pole 240 or two three, four-pole 415V circuit for overload and short-circuit protection as well as for unfrequent on-and-off switching electric equipment and lighting circuit in normal case. The products comply with IEC 60898 & BS 3711.

    • Compliant with IEC60898

    • Available in 1P, 2P 3P, 4P and 1P+N

    • B, C, D tripping curve

    • Up to 500V AC.

    DZ47s MCB combines the following functions:
    - Protection of circuits against short-circuit currents
    - Protection of circuits against overload currents
    - Control
    - isolation



    DZ47s MCB Specification Table



    Standard

    Rated Current (A)

    Pole

    Voltage(V)

    Breaking Capacity(A)

    BS3871-1 IEC60898

    1 to 40 50 to 63

    1

    240

    6000

    2,3,4

    415

    6000

    IEC157-1

    50 to 63

    1

    240

    4000

    2,3,4

    415

    4000

    1

    1

    220/240

    10000

    2,3,4

    220/240

    20000

    2,3,4

    380/415

    10000

    3

    1

    220/240

    8000

    2,3,4

    220/240

    20000

    2,3,4

    380/415

    8000

    10 to 40

    1

    220/240

    7000

    2,3,4

    220/240

    16000

    2,3,4

    380/410

    8000

    50

    1

    220/240

    6000

    2,3,4

    220/240

    10000

    2,3,4

    380/410

    6000

    63

    1

    220/240

    5000

    2,3,4

    220/240

    10000

    2,3,4

    380/410

    5000

    Standard

    Rated Current (A)

    Pole

    Voltage(V)

    Breaking Capacity(A)

    BS3871-1 IEC60898

    1 to 40

    1

    240

    4000

    2,3,4

    415

    4000

    IEC157-1

    1 to 40

    1

    220/240

    6000

    2,3,4

    220/240

    12000

    2,3,4

    380/415

    6000



    CONSTRUCTION AND FEATURE
    . Capable of switch electric circuit with load
    . Capable of quickly releasing stored energy operation
    . Adaptable to padlock device
    . Contact position indication
    . High short-circuit current withstand capacity
    . High lighted of high making and breaking capacity
    . Used as main switch for household and similar installation

    TECHNICAL DATA
    . Pole NO.:1,2,3,4
    . Rated Current(A):1,2,3,4,6,10,16,20,25,32,40,50,63
    . Rated frequency: 50/60Hz
    . Rated voltage: 230/400V AC
    . Rated withstand current: 1000A Within lesc
    . Electro-mechanical endurance: 10000 Cycles
    . Rated short-circuit making capacity: 4500A, 6000A
    . Connection Capacity: Rigid conductor 25mm2
    . Connection Terminal:
    . Screw terminal
    . Pillar terminal with lamp
    . Installation:
    . Panel mounting

    OVERALL & INSTALLATION DIMENSIONS



    Standard



    IEC/EN 60898-1

    Mechanical
    features

    Electrical life



    5000

    Mechanical life



    10000

    Protection degree



    IP20

    Reference temperature for
    setting of thermal element

    30

    Ambient temperature(with daily
    average≦35℃

    -5..+40

    Storage temperation



    Installation

    Terminal connection type



    Cable//U-type busbar/pin-type busbar

    Terminal size top/bottom for cable

    mm2

    25

    AWG

    18-3

    Terminal size top/bottom for busbar

    mm2

    25

    mm2

    18-3

    Tightening torque

    N*m

    2

    In-Ibs.

    18

    Mounting



    On DN rail EN 60715(35mm)by meas of fast clip device

    Connection



    From top and bottom



    Rated current
    In (A)

    Temperature compensation coefficient under various operational temperature

    -10℃

    0℃

    10℃

    20℃

    30℃

    40℃

    50℃

    55℃

    60℃

    6

    1.2

    1.14

    1.09

    1.05

    1.00

    0.96

    0.8

    0.75

    0.7

    10-32

    1.18

    1.12

    1.08

    1.04

    100

    0.96

    0.92

    0.88

    0.84

    40

    1.16

    1.12

    1.07

    1.03

    1.00

    0.97

    0.87

    0.83

    0.80





    Standard



    IEC/EN 60898-1

    Electrical
    features

    Rated current In

    A

    6,10,16,20,25,32,40,50,63

    poles



    1P,2P,3P,4P

    Rated voltage Ue

    V

    230/400

    Insulation voltage Ui

    V

    500

    Rated frequency

    Hz

    50/60Hz

    Rated breaking capacity

    KA

    6000

    Rated impelse withstand voltage(1.2/50)UimpStandard

    V

    4000

    Dielectric test voltage at ind,Fred,for 1 min

    KV

    2

    Polluttion degree



    2

    Themo-magnetic release characteristis



    B,C,D

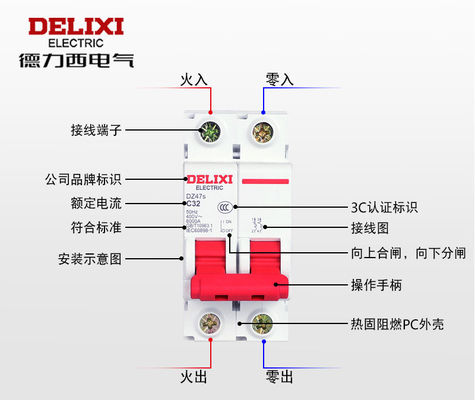

    DZ47s Miniature Circuit Breaker , Electric Circuit Breaker 1~63A 80~125A 0

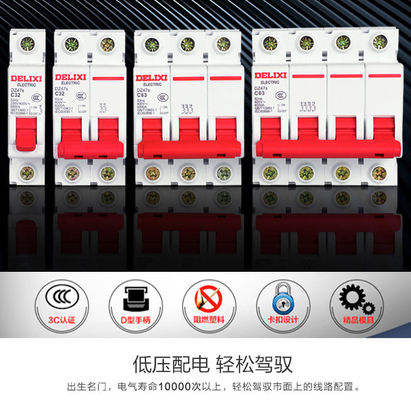

    DZ47s Miniature Circuit Breaker , Electric Circuit Breaker 1~63A 80~125A 1

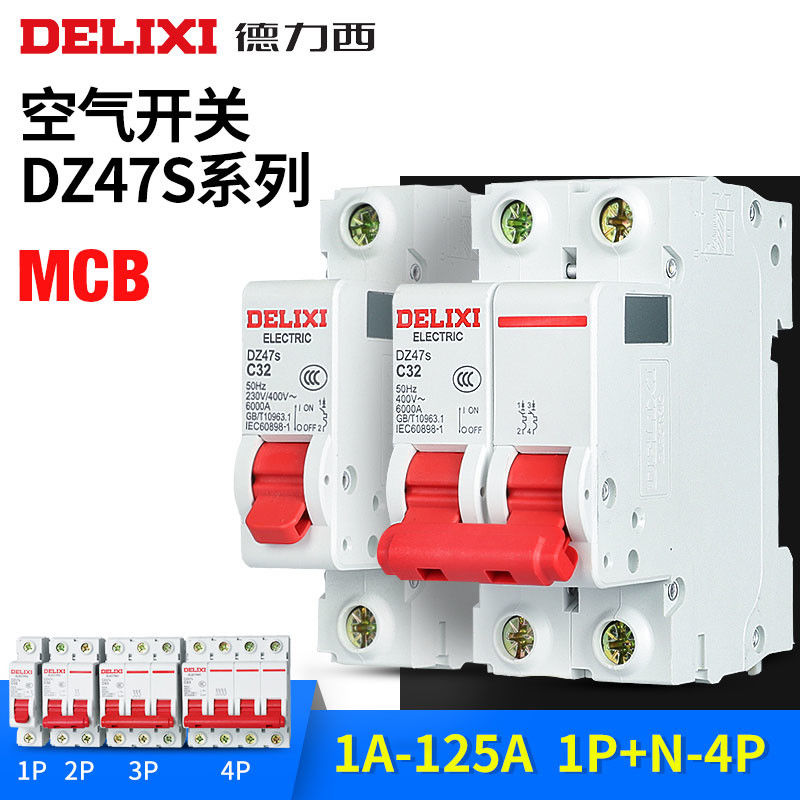

    DZ47s Miniature Circuit Breaker , Electric Circuit Breaker 1~63A 80~125A 2

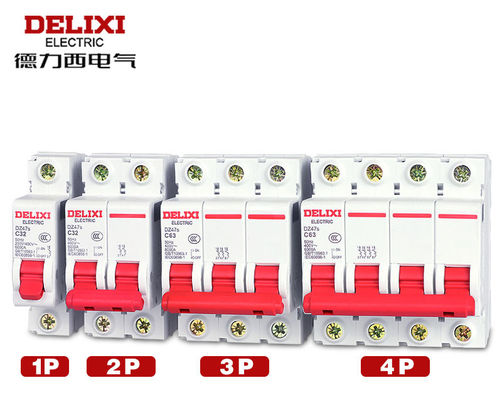

    DZ47s Miniature Circuit Breaker , Electric Circuit Breaker 1~63A 80~125A 3
