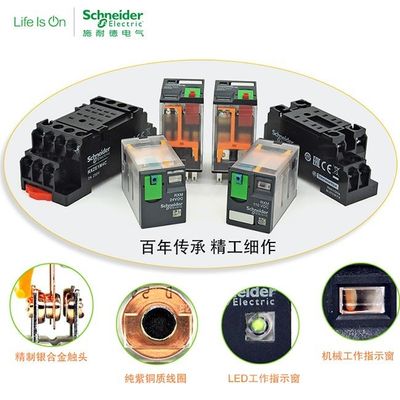

Plug - In Electromagnetic Power Relay , Miniature Power Relay RXM2 8 14 Pin 6A 3A

Plug - In Electromagnetic Power Relay , Miniature Power Relay RXM2 8 14 Pin 6A 3A

  • Plug - In Electromagnetic Power Relay , Miniature Power Relay RXM2 8 14 Pin 6A 3A
  • Plug - In Electromagnetic Power Relay , Miniature Power Relay RXM2 8 14 Pin 6A 3A
  • Plug - In Electromagnetic Power Relay , Miniature Power Relay RXM2 8 14 Pin 6A 3A
  • Plug - In Electromagnetic Power Relay , Miniature Power Relay RXM2 8 14 Pin 6A 3A
Plug - In Electromagnetic Power Relay , Miniature Power Relay RXM2 8 14 Pin 6A 3A
Product Details:
Place of Origin: China
Brand Name: Schneider Electric
Certification: CE,CCC etc.
Model Number: RXM2, RXM3 etc.
Payment & Shipping Terms:
Minimum Order Quantity: 12pcs
Price: USD5~USD8/unit
Packaging Details: Standard export carton
Delivery Time: 5-8 working days or bulk order negotiate
Payment Terms: T/T, Western Union
Supply Ability: 100,000pcs/month
Contact Now
Detailed Product Description
Product Name: Plug-in Electromagnetic Power Relay Type: Industrial Control Components
Series Name1: Zelio Coil Volt: DC12V, DC24V, AC230V
Rated Current: 12A,10A,6A,5A,3A Contact Form: 2 C/O, 3C/O, 4C/O
High Light:

ac contactor switch

,

electrical control equipment

Schneider Electric Electromagnetic Miniature Relay RXM2 8-pin, 14-pin 6A, 3A coil 12V, 24V, 230V Industrial Control





Presentation of the range


The RXM miniature relay range comprises:
1 12 A relays with 2 C/O contacts, 10 A relays with 3 C/O contacts, 6 A relays with
4 C/O contacts, and 3 A “low level” relays with 4 C/O contacts. All these relays
have the same dimensions.
2 Sockets with mixed or separate contact terminals.
3 Protection modules (diode, RC circuit, or varistor) common to all sockets.
4 A metal maintaining clamp for all sockets.
5 A plastic maintaining clamp for all sockets.
6 A 2-pole bus jumper that can be used on sockets with separate contact terminals
in order to simplify cabling when creating an equipotential link between the coil
terminals.
7 Clip-in legends for all sockets except RXZE2M114 and RXZE2S114S.





Relay description


1 Spring return pushbutton for testing the contacts (green: c, red: a).
2 Mechanical “relay status” indicator.
3 Removable lock-down door enabling forced maintaining of the contacts for test
sequences or maintenance purposes.
4 LED (depending on version) indicating the relay status.
5 Removable legend for relay identification.
6 Four notches for rail mounting adapter or panel mounting adapter with fixing lugs.
7 Eight, eleven, or fourteen Faston type pins.
8 Area by which the product can be easily gripped.
9 Mounting adapter enabling direct mounting of the relay on a panel.
10 Mounting adapter enabling direct mounting of the relay on a DIN rail.

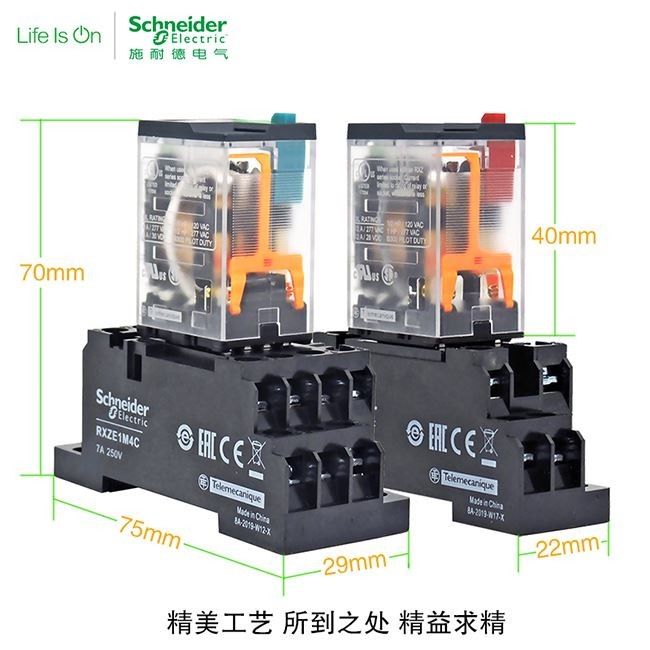

Socket description


Sockets with mixed contact terminals (1)
1 Connection by screw clamp terminals or screw connector.
2 Fourteen female contacts for the relay pins.
3 Location for protection modules.
4 Locking components for plastic and metal maintaining clamps.
5 Locating slot for mounting on DIN rail with its compression spring or fixing clip.
6 Two or four fixing holes for panel mounting.



main information

Product Series

Zelio Relay

Serial Number

Small

product type

Plug-in relay

Product short name

RXM

Contact type

4 OC

Control loop voltage

24 V DC

Rated load current in the housing [Ithe]

6 A on -40...55 °C

LED status

Have

Control type

Lock test button

Utilization factor

20%





Additional information

Pin type

Flat

Rated insulation voltage [Ui]

250 V compliant with IEC
300 V compliant with CSA
300 V compliant with UL

Rated impulse withstand voltage [Uimp]

2.5 kV at 1.2/50 μs

Contact material

AgNi

Rated operating current [Ie]

3 A on 28 V (DC) NC IEC compliant
3 A on 250 V (AC) NC IEC compliant
6 A on 28 V (DC) NO in accordance with IEC
6 A on 250 V (AC) NO compliant with IEC
6 A on 277 V (AC) UL compliant
8 A on 30 V (DC) in line with UL

Maximum switching voltage

250 V compliant with IEC

Resistive rated load

6 A on 250 V AC
6 A on 28 V DC

Maximum switching capacity

1500 VA/168 W

Minimum switching capability

170 mW on 10 mA, 17 V

Working rating

<=1200 times/hour underload
<=18000 times/hour without load

Mechanical life

10000000 times

Electrical life

100000 times for resistive (load) load

Average coil consumption in W

0.9 W

Pressure drop threshold

>= 0.1 Uc

Operate time

20 ms

Release time

20 ms

Average coil resistance

650 Ω on 20 °C +/- 10 %

Rated operating voltage limit

19.2...26.4 V DC

Safe and reliable data

B10d = 100000

Type of protection

RT I

Test level

Class A

Operating position

any position

CAD total height

82.8 mm

CAD total depth

80.35 mm

product weight

0.037 kg

Equipment introduction

Product (non-parts)





surroundings

Insulation performance

1300 V AC contact and micro-break insulation
Between 2000 V AC coil and contact and reinforced insulation
Between 2000 V AC poles and basic insulation

certified product

UL
CSA
GOST
CE
RoHS
Lloyd's
REACH

Standards compliant

EN/IEC 61810-1
UL 508
CSA C22.2 No 14

Storage ambient temperature

-40...85 °C

Ambient temperature

-40...55 °C

Vibration resistant

3 gn, amplitude = +/- 1 mm (f = 10...150 Hz) 5 cycles, in operation
5 gn, amplitude = +/- 1 mm (f = 10...150 Hz) 5 cycles, not working

IP protection level

IP40 complies with EN/IEC 60529

Impact resistance

10 gn for operation
30 gn for non-operation

Pollution level

2

Plug - In Electromagnetic Power Relay , Miniature Power Relay RXM2 8 14 Pin 6A 3A 0

Plug - In Electromagnetic Power Relay , Miniature Power Relay RXM2 8 14 Pin 6A 3A 1

Plug - In Electromagnetic Power Relay , Miniature Power Relay RXM2 8 14 Pin 6A 3A 2

Plug - In Electromagnetic Power Relay , Miniature Power Relay RXM2 8 14 Pin 6A 3A 3



Applications

Market target

  • Industrial machines

  • Machines and building or medical equipement

  • Packaging machines

  • Textile machines

  • HVAC

Applications

  • Simple hard-wired logic control system cycles

  • Extra feature for industrial PLCs
