Phase Sequence Phase Failure Protection Relay , Over Under Voltage Protection Relay 380-400V

Phase Sequence Phase Failure Protection Relay , Over Under Voltage Protection Relay 380-400V

  • Phase Sequence Phase Failure Protection Relay , Over Under Voltage Protection Relay 380-400V
  • Phase Sequence Phase Failure Protection Relay , Over Under Voltage Protection Relay 380-400V
  • Phase Sequence Phase Failure Protection Relay , Over Under Voltage Protection Relay 380-400V
  • Phase Sequence Phase Failure Protection Relay , Over Under Voltage Protection Relay 380-400V
Phase Sequence Phase Failure Protection Relay , Over Under Voltage Protection Relay 380-400V
Product Details:
Place of Origin: China
Brand Name: Chint
Certification: CE,CCC etc.
Model Number: NJB1-X, NJB1-X1
Payment & Shipping Terms:
Minimum Order Quantity: 12pcs
Price: USD12~USD15/unit
Packaging Details: Standard export carton
Delivery Time: 5-8 working days or bulk order negotiate
Payment Terms: T/T, Western Union
Supply Ability: 10,000pcs/month
Contact Now
Detailed Product Description
Product Name: Phase Sequence, Phase Loss Relay Type: Protection Relay
Function: Protection Of Phase Failure,Phase-Sequence, Under-voltage, Over-voltage Over-voltage Setting: 380V~460V 1.5s~4s (adjustable)
Under-voltage Setting: 300V~380V 2s~9s(adjustable) Operating Voltage: 380~400VAC
Contact Capacity: Ue/Ie: AC-15 380V/0.47A, Ith:3A
High Light:

home ac contactor

,

electrical control equipment

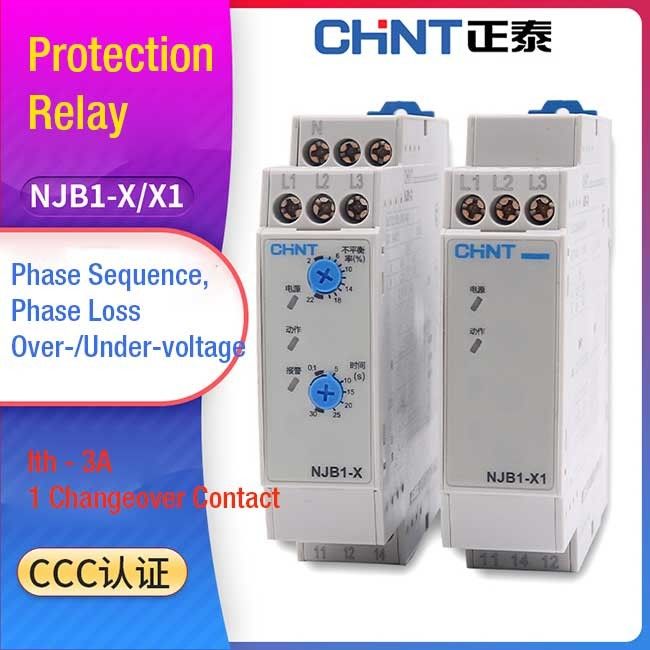

CHINT NJB1-X,X1 Phase Sequence Phase failure Protection Relay Over-/Under-voltage for AC Motor, fan 3-Phase 380-400V





NJB1-X,X1 series phase failure and phase sequence protection relay is used to provide overvoltage, undervoltage and phase failure protection in three-phase AC circuits and phase sequence protection in irreversible transmission devices and features reliable performance, wide application and convenient use.



The protector starts to function when it is connected to the power control circuit in accordance with the drawing. When the fuse of any phase of the three-phase circuit is open or when there is a phase failure in the power supply circuit, the NJB1-X,X1 operates immediately to control the contact to cut off the power supply of the AC contactor coil of the main circuit so that the main contact of the AC contactor operates to provide the load with phase failure protection.



When the phases of a three-phase irreversible device with predetermined phase sequence are connected incorrectly due to maintenance or change of the power supply circuit, the NJB1-X,X1 series will identify the phase sequence, stop supplying power to the power supply circuit and achieve the goal of protecting the device.

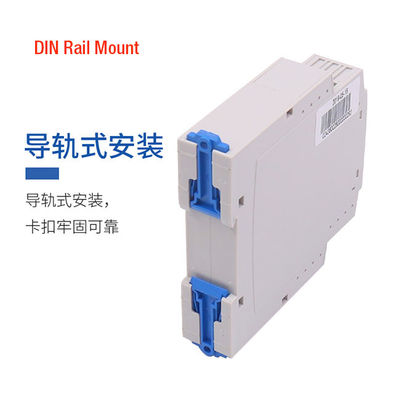

Phase Sequence Phase Failure Protection Relay , Over Under Voltage Protection Relay 380-400V 0

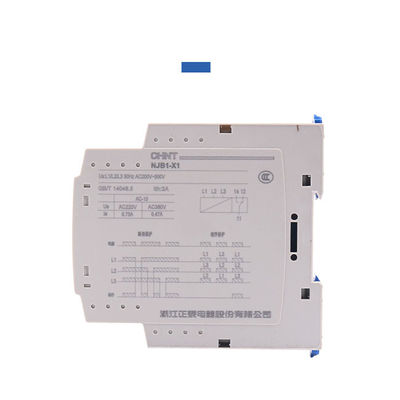

Phase Sequence Phase Failure Protection Relay , Over Under Voltage Protection Relay 380-400V 1

Phase Sequence Phase Failure Protection Relay , Over Under Voltage Protection Relay 380-400V 2

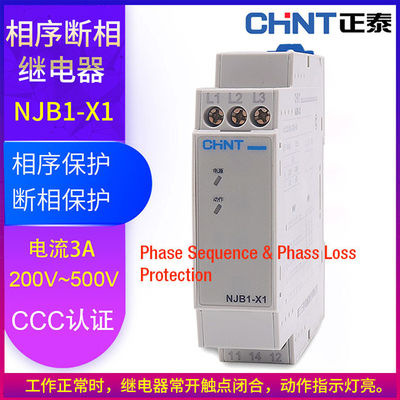

Phase Sequence Phase Failure Protection Relay , Over Under Voltage Protection Relay 380-400V 3

Phase Sequence Phase Failure Protection Relay , Over Under Voltage Protection Relay 380-400V 4

・
