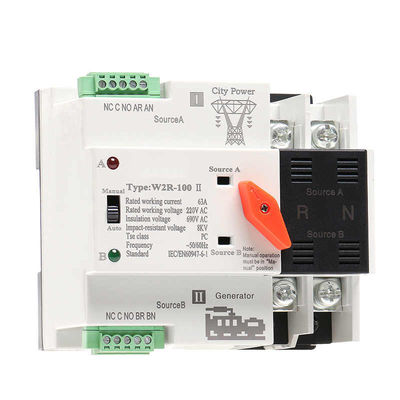

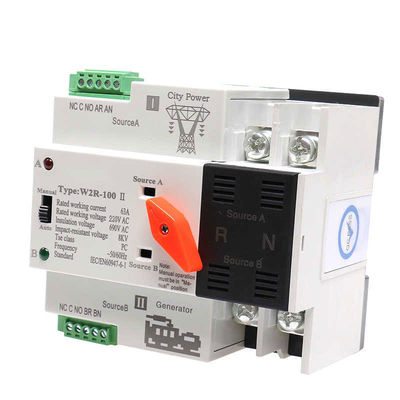

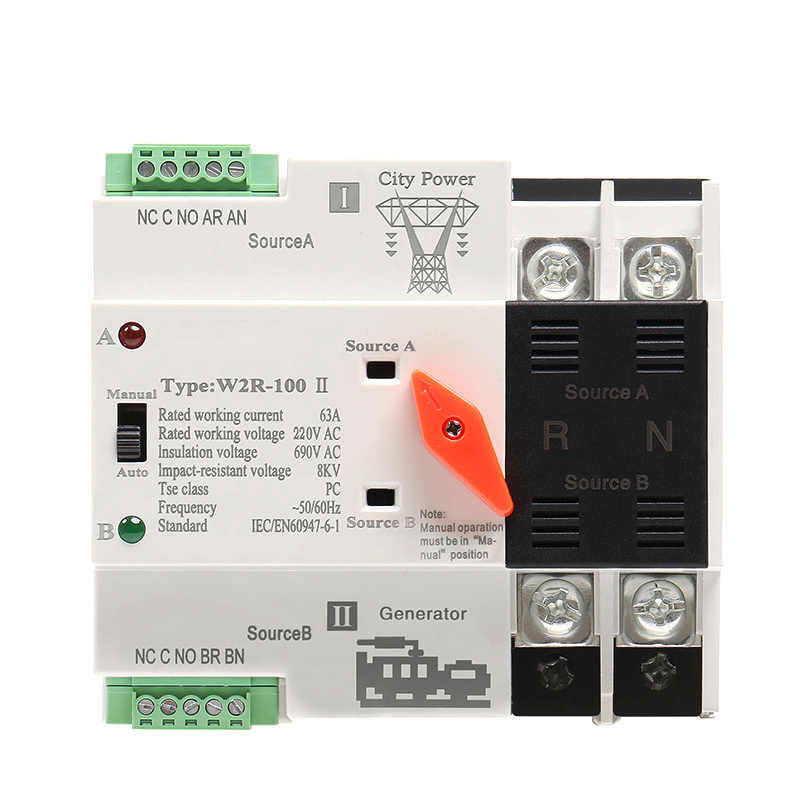

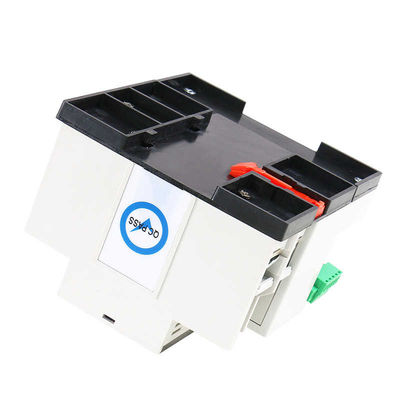

230V Solar Grid 2P Automatic Transfer Switch 16A 20A 25A 32A 40A 50A 63A 80A

230V Solar Grid 2P Automatic Transfer Switch 16A 20A 25A 32A 40A 50A 63A 80A

  • 230V Solar Grid 2P Automatic Transfer Switch 16A 20A 25A 32A 40A 50A 63A 80A
  • 230V Solar Grid 2P Automatic Transfer Switch 16A 20A 25A 32A 40A 50A 63A 80A
  • 230V Solar Grid 2P Automatic Transfer Switch 16A 20A 25A 32A 40A 50A 63A 80A
  • 230V Solar Grid 2P Automatic Transfer Switch 16A 20A 25A 32A 40A 50A 63A 80A
230V Solar Grid 2P Automatic Transfer Switch 16A 20A 25A 32A 40A 50A 63A 80A
Product Details:
Place of Origin: China
Brand Name: Fenigal/OEM
Certification: CE,CCC
Model Number: FMPC
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiate
Packaging Details: Standard export carton
Delivery Time: 5-8 working days bulk order negotiate
Payment Terms: T/T, Western Union
Supply Ability: 10,000pcs/month
Contact Now
Detailed Product Description
Max. Current: 100A Max. Voltage: 400V
Pole: 2P,3P,4P Rated Voltage: 230V/400V
Rated Current: 16A 20A 25A 32A 40A 50A 63A 80A 100A Product Name: Dual Power Automatic Transfer Switch ATS
Color: White Frequency: AC 50 Hz/60Hz
Operation Type: Manual Operation,Auto&Manual Standard: IEC60947-6-1
High Light:

2P generator automatic transfer switch

,

230V generator auto transfer switch

Fast Operation 2P Automatic Transfer Switch Dual Power 230V Solar Grid 16A 20A 25A 32A 40A 50A 63A 80A



BEST ATS QUALITY IN ALIEXPRESS---SILVER CONTACT POINT & RED COPPER PARTS & STABLE RELAY CONTROL

General

FMPC series dual power automatic transfer switch is new developed micro household power transfer switch.. The switch is mainly used for testing whether normal or spare power is normal or not. When the normal power is abnormal, the spare power works at once, which therefore ensures the continuirty, reliability, and safety of power supply. The product is specially designed for household orbit-type installation and specially use in DIN rail 35mm guided terminal distribution box.



FMPC series automatic transfer switch is suitable for the emergency power supply system with 50 or 60 Hz alternatting current rated 400V 60A. TSE is compact in structure, reliable in transfer, convenient in instabllation and maintenance, and has long lif expectancy. Widely used In various occasions where continuous power failure ls not allowed, it can be operated both electrically and manually.



Technical Data

ITEM NO. FMPC-100
Rated current Ie(A) 16A, 20A, 25A, 32A, 40A, 50A, 63A,100A
Installation Din rail
Rated insulation voltage Ui (V) AC690, 50HZ
Rated working voltage Ue (V) AC400, 50HZ
Rated impulse withstand voltage (KV ) 8KV
Poles 2P 3P 4P
Connecting and breaking 6.0Ie 1.05Ue cosØ=0.50±0.05, 50 times
Operating performance 2.0Ie 1.05Ue cosØ=0.80±0.05, 6000 times
Rated limited short-circuit current Iq 50KA
Control circuit

Rated supply voltage Us: AC220V, 50HZ.

Working condition:85% Us~110% Us

Ancillary circuit

Two isolated relays, each relay with 2 groups of passive

switch contact. Contact capacity: AC220 50Hz, Ie=5A

Switching time <50ms
Action time <50ms
230V Solar Grid 2P Automatic Transfer Switch 16A 20A 25A 32A 40A 50A 63A 80A 0
230V Solar Grid 2P Automatic Transfer Switch 16A 20A 25A 32A 40A 50A 63A 80A 1
230V Solar Grid 2P Automatic Transfer Switch 16A 20A 25A 32A 40A 50A 63A 80A 2
