| Place of Origin: | China |
| Brand Name: | Fenigal/OEM |
| Model Number: | FG62-63 |
| Minimum Order Quantity: | 12pcs / 1doz. |
|---|---|
| Price: | Negotiate |
| Packaging Details: | standard in carton box |
| Delivery Time: | 2~15days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 200,000 pcs/month |
| Certification: | CCC, CE, GS Etc. | Model: | FG62-63 |
|---|---|---|---|
| Pole(s): | 1,2,3,4, DPN/1P+N | Volt: | 220~240VAC, 380~400VAC |
| Hz: | 50~60Hz | Phase: | 1/3 |
| Standard: | EN/IEC60898 | Breaking Capacity: | Ics=Icn=6000A |
| Thermal Trip Curve: | B,C,D | Case Material: | Nylon 66 Recylable |
| Wiring: | Terminal Block, Busbar Duct Etc. IP20B | Electric Shock Protection: | Class II |
| Mechanical Life: | 10,000 | Electrical Life: | 4,000 |
| High Light: | 10kA switch type mcb,1P mcb 6 amp |
||

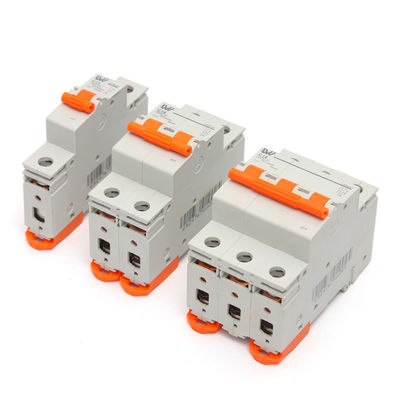

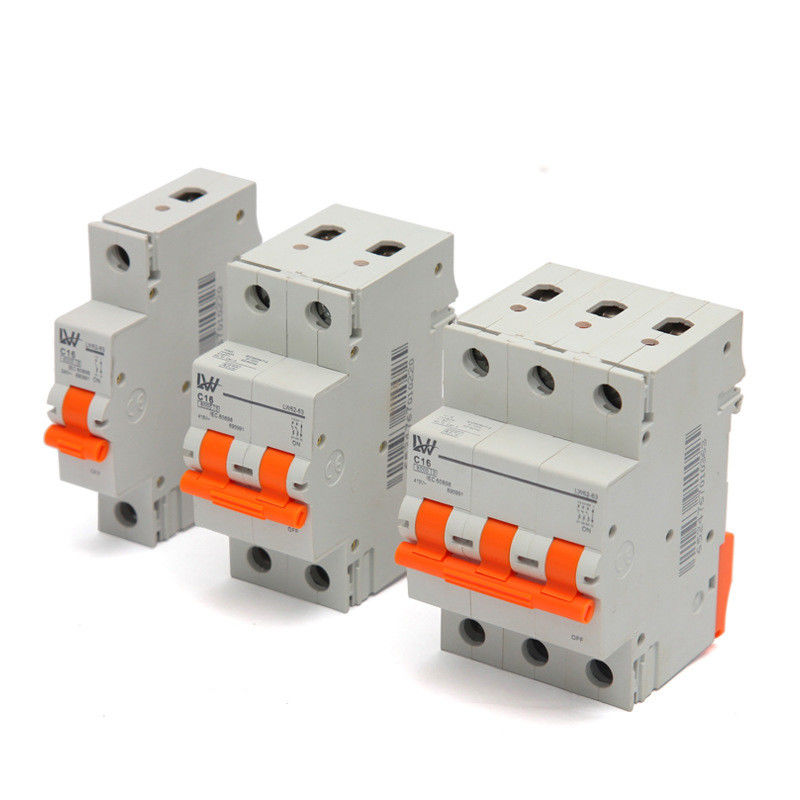

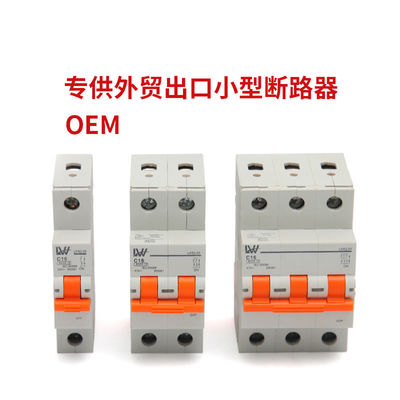

FG62-63 series circuit breaker is used in lighting distribution system or motor distribution system for protecting overload and short-circuit in the system.
The product novel in structure, light in weight, reliable and excellent in performance.
It has high breaking capacity, can trip quickly and its installation uses with guide, its case and items are adopted with high fire-resistant and shockproof plastic. The product, with long life, is mainly used in AC 50/60Hz single-pole 240V or two, three, four-pole 415V circuit for overload and short-circuit protection as well as for unfrequent on-and-off switching electric equipment and lighting circuit in normal case. This product conform with GB10963, IEC60898.
DZ47-63S Mini Circuit Breaker (MCB)
1. Specification
| Standard | IEC60898-1 |
| Electrical Feature | |
| Rated current In | 1, 2, 3, 4, 6, 10, 16, 20, 25, 32, 40, 50, 63A |
| Poles | 1P, 1P+N, 2P, 3P, 3P+N, 4P |
| Rated voltage Ue | 240/415V |
| Insulation voltage Ui | 500V |
| Rated frequency | 50/60Hz |
| Rated breaking capacity | 6000A / 10,000A |
| Energy limiting class | 3 |
| Rated impulse withstand voltage(1.2/50) Uimp | 4000V |
| Dielectric test voltage at ind. Freq. For 1 min | 2000V |
| Pollution degree | 2 |
| Thermo-magnetic release characteristic | B, C, D |
| Mechanical Feature | |
| Electrical life | 4000 |
| Mechanical life | 8000 |
| Protection degree | IP20 |
| Reference temperature for setting of thermal element | 30 º C |
| Ambient temperature (with daily average≤ 35º C) | -5 º C...+40 º C |
| Storage temperature | -25 º C...+70 º C |
| Installation | |
| Terminal size top/bottom for cable | 25 18-3AWG |
| Terminal size top/bottom for bus bar | 25 18-3AWG |
| Tightening torque | 2.0 N*m |
| Mounting | On DIN rail EN 60715 (35mm) by means of fast clip device |
| Connection | From top and bottom |
| Combination with Accessory | |
| Combination with accessories | Auxiliary contact, Shunt release, Under voltage release, Alarm contact |
