Sheet Metal Fabrication IEC60439-3 380V Electrical Switchboard Cabinet

Sheet Metal Fabrication IEC60439-3 380V Electrical Switchboard Cabinet

  • Sheet Metal Fabrication IEC60439-3 380V Electrical Switchboard Cabinet
  • Sheet Metal Fabrication IEC60439-3 380V Electrical Switchboard Cabinet
  • Sheet Metal Fabrication IEC60439-3 380V Electrical Switchboard Cabinet
  • Sheet Metal Fabrication IEC60439-3 380V Electrical Switchboard Cabinet
Sheet Metal Fabrication IEC60439-3 380V Electrical Switchboard Cabinet
Product Details:
Place of Origin: China
Brand Name: Chint
Model Number: XL-21, JXF, GGD
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: USD20~USD200
Packaging Details: Standard export carton/crate wood box
Delivery Time: 5-8 working days or bulk order negotiate
Payment Terms: T/T, Western Union
Supply Ability: 300pcs/month
Contact Now
Detailed Product Description
Certification: CE Material: Stainless Steel
Color: White Application: To Protect Circuit Breakers Installed, For Industrial
Type: Distribution Box,Power Distribution System Rated Voltage: 220/380V,120V/240V
Standard: IEC60439-3 Size: Custom
Working Temperature: -40 To +80 Degrees Centigrade Name: Distribution Cabinet/Power Electric Meter Box
Processing: Laser Cutting/Bending/Others
High Light:

IEC60439-3 electrical switchboard cabinet

,

380v switchboard cabinet

,

380V electrical switchboard cabinet

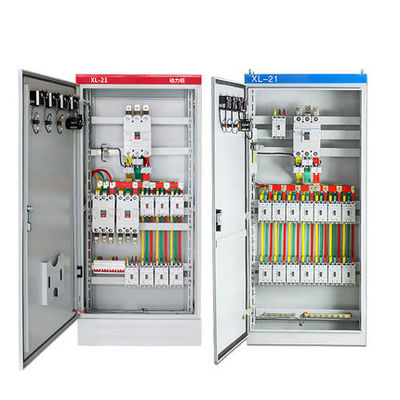

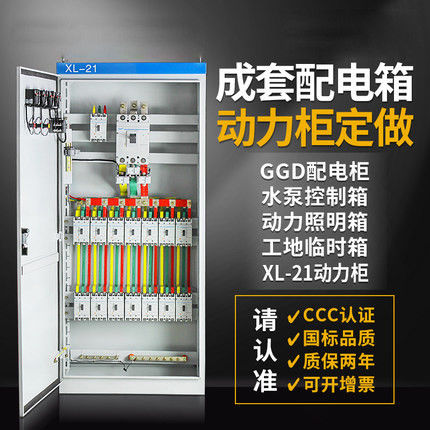

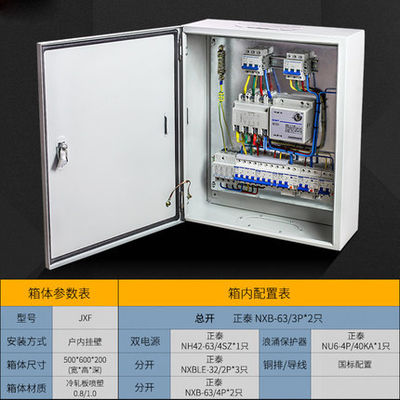

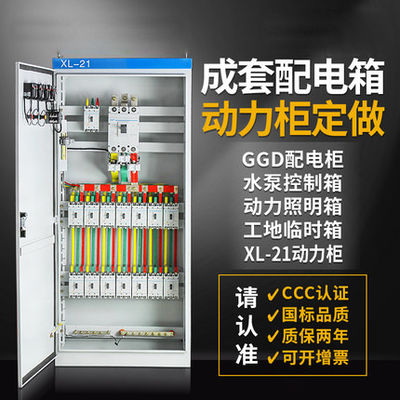

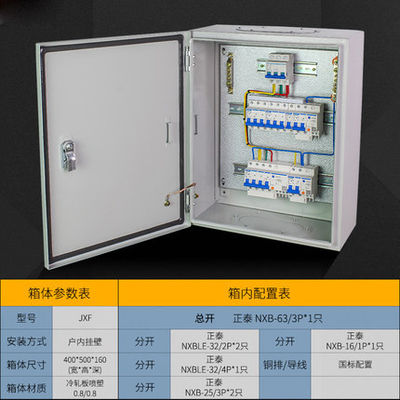

XL21 Chint Motor Control Center JXF Enclosure in Sheet Steel for Power Distribution or Water Pump Control Cabinet

Panel Building Services for Electrical Installation and Distribution



General



Outdoors integrated distribution cabinet series is suitable for AC 50 Hz, rated voltage up to 0.4 kV power transmission and distribution system. This series of product is a combination of automatic compensation and power distribution. And it is a innovative indoors and outdoors pressure distribution cabinet of electrical leakage protection, energy metering, over-current, over-pressure open phase protection. It has benefits of small volume, easy installation, low cost, electricity-stolen prevention, strong adaptability, resistance to aging, accurate rotor, no compensation error, etc. Therefore it is the ideal and preferred product for electric grid reformation.



Outdoors integrated distribution box - JP series is designed according to reformation requirements and operational experience of gird construction, based on the principle of security, economic, reasonable and reliable. It is a new type outdoors integrated distribution box with functions of power distribution, controlling, protection, reactive power compensation, power metering. At the same time the electric leakage protection can be added according to users' requirements. The product has several benefits: novel structure, reasonable, high protection grade, convenient installation, debugging, maintenance and repair, etc. The product conforms to standard GB7251.1-1997, and passed 3C certification. It is the ideal low-voltage apparatus in reformation of power grids. Outdoors integrated distribution box - JP series is suitable for 0.4 kV voltage grade of power distribution, metering , protection and automatic reactive power compensation.





Technical Data



Manufacturing Process Laser cutting,stamping, deep stamping,bending, punching, threading,welding, polishing,tapping,riveting,assembly.
Material Stainless steel, carbon steel,copper,aluminium, brass, iron, and bronze (according to customer's requirements)
Surface Treatment Galvanized(zinc-plated, nickel-plated,chrome-plated,silver-plated),
powder coating, polishing(mirror polishing, electrolytic polishing),
brushing,sand blasting,chemical etching,passivation treatment, etc.
Tolerance +/-0.01mm
Package Plastic film+harden carton box+plywood case
Application Auto parts,Food Machinery,medical testing and equipment, electronic products, electric appliance,power switches, miniature switches,A/V equipment.
Quality Control Conducted by ISO9001
Drawing File Format Solidworks,Pro/E,,Auto CAD,PDF
Features 1.Customized Design
2.Small Order Allowed
3.Sample Product Available
4.Competitive Price due to factory direct supply
Inspection IQC,PQC,FQC,OQA



Sheet Metal Fabrication IEC60439-3 380V Electrical Switchboard Cabinet 0Sheet Metal Fabrication IEC60439-3 380V Electrical Switchboard Cabinet 1Sheet Metal Fabrication IEC60439-3 380V Electrical Switchboard Cabinet 2Sheet Metal Fabrication IEC60439-3 380V Electrical Switchboard Cabinet 3Sheet Metal Fabrication IEC60439-3 380V Electrical Switchboard Cabinet 4
