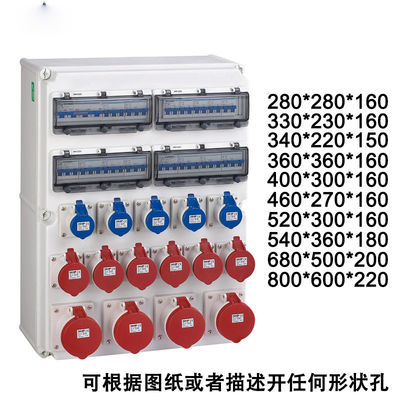

Industrial Socket Control IEC60439-3 Weatherproof Distribution Box

Industrial Socket Control IEC60439-3 Weatherproof Distribution Box

  • Industrial Socket Control IEC60439-3 Weatherproof Distribution Box
  • Industrial Socket Control IEC60439-3 Weatherproof Distribution Box
  • Industrial Socket Control IEC60439-3 Weatherproof Distribution Box
  • Industrial Socket Control IEC60439-3 Weatherproof Distribution Box
Industrial Socket Control IEC60439-3 Weatherproof Distribution Box
Product Details:
Place of Origin: China
Brand Name: Fenigal/None
Certification: CE,CCC
Model Number: WIP01
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: USD10~USD100
Packaging Details: Standard export carton
Delivery Time: 5-8 working days or bulk order negotiate
Payment Terms: T/T
Supply Ability: 1,000pcs/month
Contact Now
Detailed Product Description
Material: ABS/PC Color: Grey White/Transparent Cover
Application: Power Distributing Type: Distribution Box Electrical Boxes
Installation Type: Surface Type/ Flush Type Standard: IEC60439-3
Rated Voltage: 220V-380V,220/110V Rated Current: 32,63A,100A
Frequency: 50 HZ/60HZ External Size: 230*381*110mm
Way: 5,8,12,15,18,24 Working Temperature: -40 To +80 Degrees Centigrade
High Light:

IEC60439-3 outdoor power distribution box

,

iec60439-3 weatherproof distribution box

,

63A weatherproof distribution box

Industrial socket control distribution box PC flame retardant strong electrical wiring box

Feature:
1.Protection types: IP 44 and IP 67.
2.Enclosure materials: AMAPLAST and especially chemical-resistant AMELAN.
3.Colors: body grey orange black yellow
4.Equipped with: CEE receptacles from 16A, 3-poles up to 63A, 5-poles, grounding-type receptacles in accordance with many national standards, DUO receptacles switched and interlocked from 16A, 3p to 32A, 5P

Type:

1.Wall mounted, enclosure
2.Receptacle strip, enclosure
3.Portable, enclosure
4.Portable, with feeder cable, enclosure



Model NO.
WIP01
Application Range
Industrial Area
Shell Material
Plastic ABS PA
Shell Protection Grade
IP44 and IP67
Brand
Fenigal/OEM
Material
ABS PA Plastic
Color
Grey Orange Black Yellow
Protection Degree
IP44 and IP67
Certificate
CCC Ce
Voltage
220-250V
Current
16A 32A
Customization
for Standard Size Is Available
Payment
T/T
Application
Indoor / Outdoor
Advantage
Portable
Trademark
wonhen
Transport Package
by Carton
Specification
ABS PA



Name Socket box
Rated insulation voltage AC400V(660V)
Rated operation voltage AC230/400V, DC440V
Rated frequency 50Hz
Protection class IP44, IP67
Single-loop output current 16A, 32A, 63A, 125A etc.
Single-loop output voltage 20-25V,40-50V,100-130V,200-250V,380-480V, 500-660V
Environment temperature -30 ℃ ~+40 ℃, indoor and outdoor
Sample free

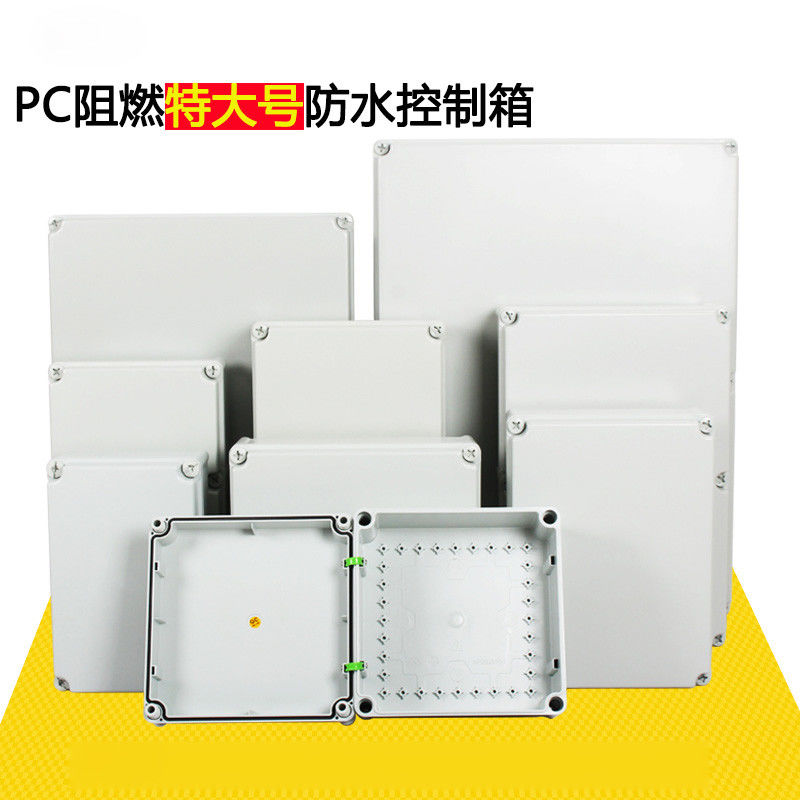

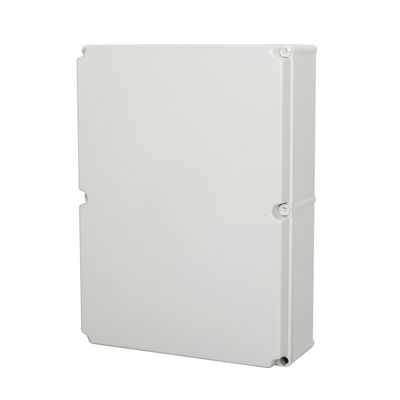

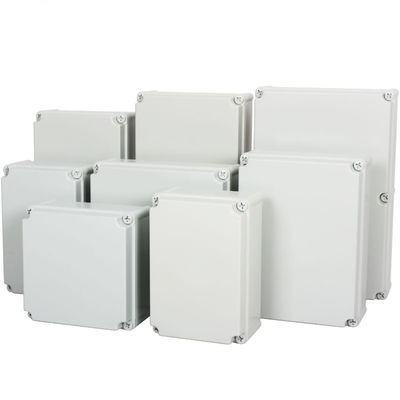

Models:

Order No. Product Name Dimension(mm)
223415 Water-proof Electric Box 220*340*150
304016 Water-proof Electric Box 300*400*160
305216 Water-proof Electric Box 300*520*160
274616 Water-proof Electric Box 270*460*160
365418 Water-proof Electric Box 360*540*180
233316 Water-proof Electric Box 230*330*160
282815 Water-proof Electric Box 280*280*150
363616 Water-proof Electric Box 360*360*160
608022 Water-proof Electric Box 600*800*220



Application:

They are widely used in the machine, Petroleum Chemical Industry , Electricity,Electronics,railway,Construction Site,Airports,mine, post-mining land, water treatment plant and port,Pier,market,hotel.



Feature:

Manufacture of CEE Industrial plugs and sockets with IEC60309-2 standard (CEE) and high quality with RoHS.

1.Poles: 2P+E, 3P+E, 3P+N+E;

2.Rated Voltage: 110V, 230V, 400V, 500V;

3.Rated Current: 16A, 32A, 63A, 125A;

4 Waterproof: IP44 or IP67;

5. Earth Contact Position: 3h, 6h, 9h

6.Feature: dust-proof,waterproof,Corrosion-Proof and heat-resistant,UV-stop

7.This Industrial Connector have soft-contact technique, and the cable penetration from top and buttom.

8. Various colors to choose from:Red, blue and black.









Industrial Socket Control IEC60439-3 Weatherproof Distribution Box 0Industrial Socket Control IEC60439-3 Weatherproof Distribution Box 1Industrial Socket Control IEC60439-3 Weatherproof Distribution Box 2Industrial Socket Control IEC60439-3 Weatherproof Distribution Box 3Industrial Socket Control IEC60439-3 Weatherproof Distribution Box 4
