| Place of Origin: | China |
| Brand Name: | FENIGAL |
| Certification: | CE |
| Model Number: | EDI stack E-cell-3X |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard export packing |
| Supply Ability: | 60000 Unit/Units per Month |
| Applicable Industries: | Power, Semiconductor, Chemical, Metallurgical | Resistivity: | > 16 MOhm-cm Lower Guarantees Also Available |
|---|---|---|---|
| Sodium: | <3 Ppb | Recovery: | Up To 96% |
| Voltage: | 0–300 VDC | Amperage: | 0–5.2 ADC |
| High Light: | 300 VDC Electrodeionization Modules,Ion Exchange Electrodeionization Modules,300 VDC Ion Exchange Stacks |
||

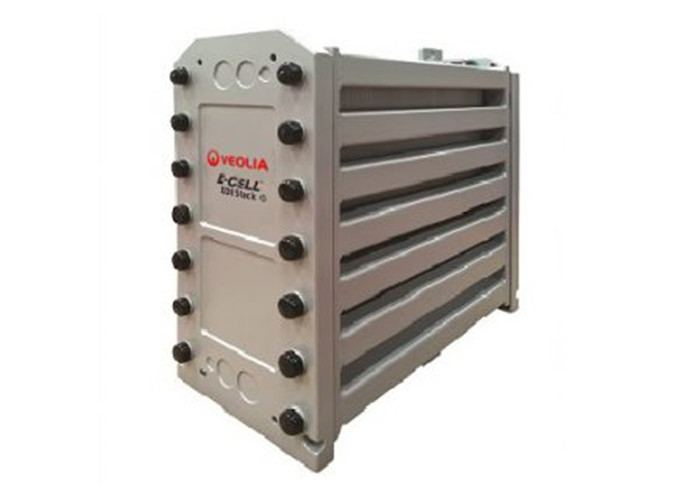

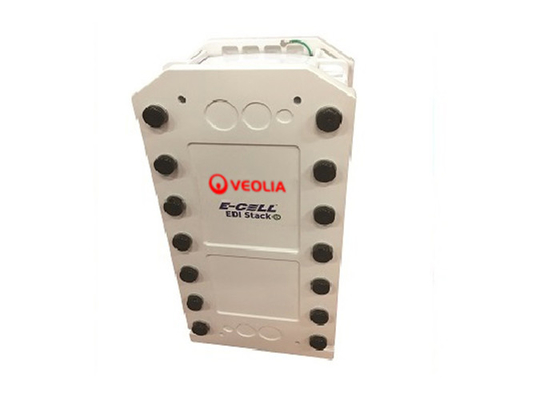

Ultra Pure Water Reverse Osmosis EDI Membrane Stack Electro-Deionization (EDI/CEDI) EDI stack MK-3
General Description
As part of the E-Cell* electrodeionization product line,the E-Cell MK-3 Stack is designed to:
• Use electrical current to provide ultrapure water for semiconductor fabrication, power generation,solar panel production, and many other heavy industries.
• Deliver premium performance including both the highest levels of product water quality and the lowest energy consumption.
• Minimize cleaning requirements at higher feed water hardness levels using counter-current
operation.
• Be leak free, guaranteed.
• Operate continuously and require no caustic or acid for regeneration of ion exchange resin within the stack.
• Require no brine injection or concentrate re-circulation.
Typical Applications
The product water from the E-Cell MK-3 can be relied upon to meet today’s most demanding ultrapure water applications including:
• Ultrapure water for rinsing of semiconductor chips, solar panels, and other microelectronics
• Demineralized boiler feed water for high pressure boilers found in power plants and other heavy industrial sites
For ease of design and additional confidence in your EDI application, E-Cell performance projections and guarantees are available in the Winflows* software
Quality Assurance
• CE, RoHS, CSA and EAC marked
• Manufactured in an ISO 9001 and ISO 14001 facility
• E-Cell MK-3 Stacks are halal certified by the Islamic Food and Nutrition Council of America (IFANCA®)
| MK-3 Stack Specifications | ||
| Nominal Flow | 3.4 m3 /h | 15 gpm |
| Flow Rate Range | 1.7 – 4.5 m3 /h | 7.5 – 20 gpm |
| Shipping Weight | 92 kg | 202 lbs |
|
Dimensions (width x height x depth) |
30 cm x 61 cm x 54 cm | 12’’ x 24” x 22 |
| Product Water Quality Note 1 | |
| Guarantees Available | |
| Resistivity | > 16 MOhm-cm Lower guarantees also available |
| Sodium | < 3 ppb |
| Silica (SiO2) | As low as 5 ppb |
| Boron | As low as 0.08 ppb |
| Typical Removal Efficiencies | |
| Sodium | > 99.9% removal |
| Silica (SiO2) | Up to 99% removal |
| Boron | Up to 96% removal |
| Operating Parameters | ||
| Recovery | Up to 96% | |
| Voltage | 0–300 VDC | |
| Amperage | 0–5.2 ADC | |
| Inlet Pressure Note 2 | < 6.9 bar | < 100 psi |
| Pressure Drop Note 3 | 1.4–2.8 bar | 20–40 psi |
| Feed Water Specifications Note 4 | ||
|
Total Exchangeable Anions (TEA as CaCO3) Note 5 |
< 60 mg/l | < 60 ppm |
| Conductivity Equivalent | < 103 μS/cm | < 103 μS/cm |
| Temperature | 4.4–40˚C | 40–104˚F |
| Total Hardness (as CaCO3) Note 6< 1.0 mg/l | < 1.0 mg/l | < 1.0 ppm |
| Silica (SiO2) Note 7 | < 1.0 mg/l | < 1.0 ppm |
| Total Organic Carbon (TOC as C) | < 0.5 mg/l | < 0.5 ppm |
| Total Chlorine | < 0.05 mg/l | < 0.05 ppm |
| Fe, Mn, H2S | < 0.01 mg/l | < 0.01 ppm |
| Boron Note 8 | < 1.0 mg/l | < 1.0 ppm |
| pH | 4 to 11 | |
| Oil & Grease | None detectable | |
| Particulate Note 9 | RO permeate | |
| Oxidizing Agents | None detectable | |
| Color Note 10 | < 5 APHA | |
