| Place of Origin: | China |
| Brand Name: | VEOLIA |
| Certification: | CE |
| Model Number: | E-Cell MK-7 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard export packing |
| Delivery Time: | 5- 8 work days |
| Supply Ability: | 60000 Unit/Units per Month |
| Weight (KG): | 95 Kg | Resistivity: | >16 Mohm-cm |
|---|---|---|---|
| PH For Treated Water: | 6.5-8.0 | Sodium: | <3 Ppb |
| Boron Removal: | >95% | Silica (SiO2) Removal: | Up To 99% Or <5ppb |
| High Light: | edi module water treatment,electrodeionization module,water treatment edi modules |
||

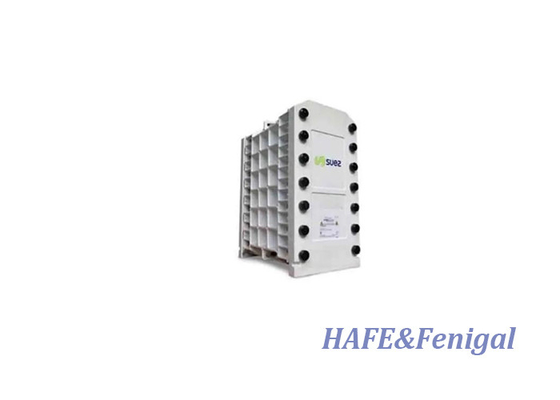

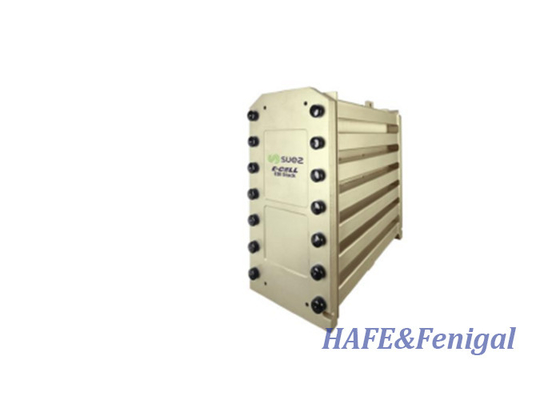

Stacked High-quality Ultrapure Water Reverse Osmosis EDI Module For Water Treatment
MK-7 is designed to
• Provide ultrapure water for industrial applications including power and general industry.
• Produce mixed bed quality water on a continuous basis.
• Require no caustic or acid for regeneration of ion exchange resin within the stack.
• Be leak free, guaranteed.
• Eliminate brine injection and concentrate recirculation, simplifying system design.
description and use
MK-7 are high flow electrodeionization (EDI) stacks which use electrical current to deionize and polish reverse osmosis (RO) permeate water. MK-7 product water is at an ultrapure level required in today’s most demanding applications.
| Stack Specifications | ||
| Flow | 4.2 - 7.8 m3 /hr | 8 - 34 gpm |
| Maxmium flow | 7.8 m3 /hr | 34 gpm |
| Nominal flow | 6.0 m3 /hr | 26 gpm |
| Shipping weight | 137 kg | 300 lb |
|
Dimensions (width x length x height) |
31cm x 61cm x66cm | 12’’ x 24” x 26” |
| Typical Performance | ||
| Product Quality | ||
| Resistivity | > 16 MOhm-cm | |
| Sodium | < 3 ppb | |
| Silica (SiO2) Removal | Up to 99% / < 5 ppb | |
| Boron Removal | > 95% | |
| Operation Parameters | ||
| Recovery | Up to 97% | |
| Concentrate Flow (vs. Product Flow) | Countercurrent, hardness ≥0.10 ppm as CaCO3 Cocurrent, hardness | |
| Voltage | 0 - 400 VDC | |
| Amperage | 0 - 5.2 ADC | |
| Inlet Pressure Cocurrent | 3.1 - 6.9 bar | 45 - 100 psi |
| Inlet Pressure Countercurr | 4.1 - 6.9 bar | 60 - 100 psi |
| Pressure Drop | .0 - 3.8 bar | 15 - 55 psi |
| Maximum Feed Water Specifications | ||
| Feed Water - Total Exchangeable Anions (TEA as CaCO3) | < 25 mg/l | < 25 ppm |
| Feed Water – Conductivity, NaHCO3 equivalent | < 43 μS/cm | < 43 μS/cm |
| Temperature | 5 - 40˚C | 41 - 104˚F |
| Total Hardness (as CaCO3) | < 1.0 mg/l | < 1.0 ppm |
| Silica (SiO2) | < 1.0 mg/l | < 1.0 ppm |
| Total Organic Carbon (TOC as C) | < 0.5 mg/l | < 0.5 ppm |
| Total Chlorine | < 0.05 mg/l | < 0.05 ppm |
