Luxury Lighting Distribution Box 14 22 26 36 42 56 63 66 72 96 110 168 Modules

Luxury Lighting Distribution Box 14 22 26 36 42 56 63 66 72 96 110 168 Modules

    • Luxury Lighting Distribution Box 14 22 26 36 42 56 63 66 72 96 110 168 Modules
    • Luxury Lighting Distribution Box 14 22 26 36 42 56 63 66 72 96 110 168 Modules
    • Luxury Lighting Distribution Box 14 22 26 36 42 56 63 66 72 96 110 168 Modules
    • Luxury Lighting Distribution Box 14 22 26 36 42 56 63 66 72 96 110 168 Modules
  • Luxury Lighting Distribution Box 14 22 26 36 42 56 63 66 72 96 110 168 Modules

    Product Details:

    Place of Origin: China
    Brand Name: Matech/OEM
    Certification: CE,CCC
    Model Number: Custom

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Unit
    Price: USD30~USD1,000
    Packaging Details: Standard export carton
    Delivery Time: 5-8 working days or bulk order negotiate
    Payment Terms: T/T
    Supply Ability: 1,000pcs/month
    Contact Now
    Detailed Product Description
    Material: Sheet Steel With Special Surface Treatment Color: Grey White/Transparent Cover/Other
    Application: Power Distributing Type: Distribution Box Electrical Boxes
    Installation Type: Surface Type/ Flush Type Standard: IEC60439-3
    Rated Voltage: 220V-380V,220/110V Rated Current: 63A,100A, 250A
    Frequency: 50 HZ/60HZ External Size: 230*381*110mm
    Way: 14,22,26,36,42,56,63,66,72,96,110,168 Working Temperature: -40 To +80 Degrees Centigrade
    High Light:

    power distribution box

    ,

    electrical db box

    Luxury Matech Distribution Box Enclosure in Sheet Steel 14,22,26,36,42,56,63,66,72,96,110,168 modules





    Applications

    • Surface and flush mounted modular enclosures designed with simplicity, ease of installation and flexibility of finish in mind.
    • Suitable for all commercial building installations.
    • Ideal for high-end residential building installations.



    Brief Introduction

    A distribution board (also known as panelboard, breaker panel, or electric panel) is a component of an electricity supply system that divides an electrical power feed into subsidiary circuits, while providing a protective fuse or circuit breaker for each circuit in a common enclosure.



    Normally, a main switch, and in recent boards, one or more residual-current devices (RCD) or residual current breakers with overcurrent protection (RCBO), are also incorporated.



    About Us

    Wuxi Fenigal Science and Technology Co. ,Ltd. is a high-tech enterprise specialized in reseach and developement of products on latest Electrical Distribution and Industrial Control & Automation, as well as special Lighting technology and products on Film & Media, Event, Industrial and Domestic use etc.



    Through years of effort, we are aiming to build a large range of lineup coverage and service capability for the sectors we serve. We promise to provide our clients best products with most reasonable prices in most cases of no M.O.Q. (Minimum Order Quantity) requirement. Our team work with from raw materials, parts, elements, design and developement, engineering to purchase, assembly, test, logistics, deliver and after sales service, in short, to earn the client's satisfaction and create customer values.

    Each year, we export many special products to panel builders, system integrators, event planners and event management companies, project owners, engineers or their teamsin many corners of the world.



    Working together with us, you can find blow benefits.



    Our Advantages

    1) We are manufacturer and have factory facility for many of our unique products

    2) Integrating flexible resources that could enable our fast response to client's demand on regular or customized

    3) No M.O.Q. and very low M.O.Q.

    4) Leatime period is short 1-3 days or 5-7 days normally, special order or bulk order to be negotiated

    5) Private label or OEM business is provided

    6) We have plenty of channels that enbles us to supply world best brands of authnentic materials originally made in China, quicker and efficient than anyone else.

    7) We are able to deliver to you through international courier service by Air, like FedEx, DHL, TNT, UPS etc. to most parts of the world very soon in best condition. (Bulk order is still suggested to be delivered by Sea)

    8) Our in-depth expertise and know-how of the industries and product knowledge stored in our mind and team work.

    Luxury Lighting Distribution Box 14 22 26 36 42 56 63 66 72 96 110 168 Modules 0

    Luxury Lighting Distribution Box 14 22 26 36 42 56 63 66 72 96 110 168 Modules 1

    Luxury Lighting Distribution Box 14 22 26 36 42 56 63 66 72 96 110 168 Modules 2

    Luxury Lighting Distribution Box 14 22 26 36 42 56 63 66 72 96 110 168 Modules 3

    Luxury Lighting Distribution Box 14 22 26 36 42 56 63 66 72 96 110 168 Modules 4

    Luxury Lighting Distribution Box 14 22 26 36 42 56 63 66 72 96 110 168 Modules 5

    Luxury Lighting Distribution Box 14 22 26 36 42 56 63 66 72 96 110 168 Modules 6

    Luxury Lighting Distribution Box 14 22 26 36 42 56 63 66 72 96 110 168 Modules 7

    Features:

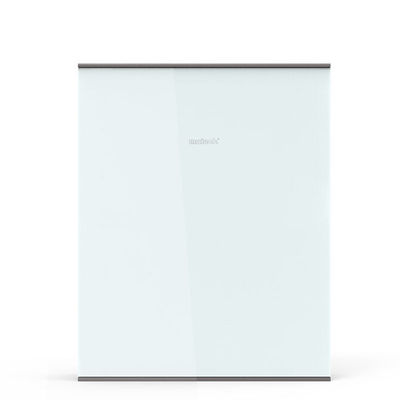

    Tempered glass panel with white screen priting,

    Aluminum alloy hinge, alluminium alloy panel frame. Closed by magnet adsorption

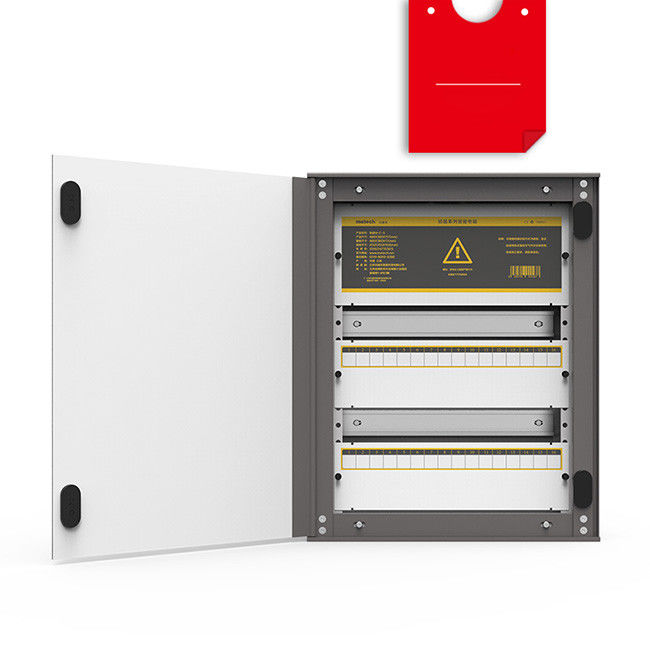

    2 rows din rail, 21ways per rail, total 2 rows 42P, with label

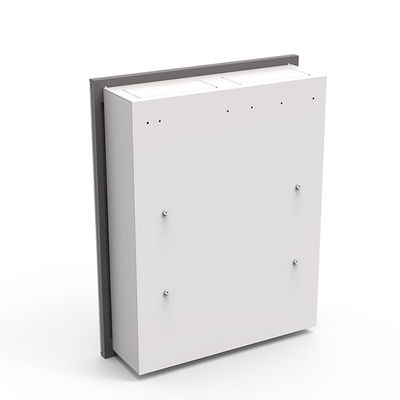

    1.0mm cold-rolled steel sheet bottom box
    The holes in 4 sides can be knocked off are convenient for wiring
    High face score, high quality, suitable for modern home

    Description /Model
    External  dimension (mm)
     Panel dimension (mm)
    Installation dimension(mm)
    14 way, 1 row /Platinum crystal C-Q/R
    332X246X114
    332X246X14
    300X210X100
    20 way, 1 row /Platinum crystal SM-D-Q/R /Platinum metal SM-Q/R
    470X310X14
    470X310X14
    440X270X100
    26 way, 2 rows /Platinum crystal SM-E-Q/R
    470x310x114
    470x310x14
     450x275x100
    32 way, 2 rows /Platinum crystal M-C-S-Q/R
    480X380X117
    480X380X17
    450X350X100
    42 way, 2 rows /Platinum crystal smart home S-C
    520X450X137
    520X450X17
    495X420X120
    63 way, 3 rows /Platinum crystal smart home L-C
    790X450X137
    790X450X17
    765X420X120
    44 way, 2 rows /Platinum crystal smart home S-Q
    560X480X140
    560X480X20
    530X450X120
    66 way, 3 rows /Platinum crystal smart home L-Q
    720X480X140
    720X480X20
    690X450X120
    110 way, 5 rows /Platinum crystal smart home XL-Q
    1040X480X140
    1040X480X20
    1010X450X120

    Luxury Lighting Distribution Box 14 22 26 36 42 56 63 66 72 96 110 168 Modules 8

    Luxury Lighting Distribution Box 14 22 26 36 42 56 63 66 72 96 110 168 Modules 9

    Luxury Lighting Distribution Box 14 22 26 36 42 56 63 66 72 96 110 168 Modules 10

    Luxury Lighting Distribution Box 14 22 26 36 42 56 63 66 72 96 110 168 Modules 11

    Luxury Lighting Distribution Box 14 22 26 36 42 56 63 66 72 96 110 168 Modules 12

    Luxury Lighting Distribution Box 14 22 26 36 42 56 63 66 72 96 110 168 Modules 13

    Material details:

    42 way indoor electrical distribution box with tempered glass panel:

    ※ Tempered glass panel with white screen printing

    ※ Logo:laser printing

    ※ Aluminium alloy panel frame

    ※ Aluminum alloy hinge

    ※ 1.0mm cold-rolled steel sheet bottom box

    ※ Alumilium alloy din rail for circuit breaker or module, black, x2,(21P/rail, total 2rows/42P)

    ※ Cover for din rail: black steel with powder coating,x3

    ※ Zero line termial blocks:10 joint, x1

    ※ Grounding terminal blocks:10 joint, x1

    Dimensions:(HxWxD)

    ※ External dimension(mm): 520x450x137

    ※ Panel dimension (mm): 520x450x17

    ※ Installation dimension(mm): 495x420x120

    ※ Vertical rail length: 450mm

    ※ Din rail length: 380mm(21P)
