6kA Electric Circuit Breaker , 2 Pole Circuit Breaker 1~63A 1P 3P 4P 1P+N

6kA Electric Circuit Breaker , 2 Pole Circuit Breaker 1~63A 1P 3P 4P 1P+N

    • 6kA Electric Circuit Breaker , 2 Pole Circuit Breaker 1~63A 1P 3P 4P 1P+N
    • 6kA Electric Circuit Breaker , 2 Pole Circuit Breaker 1~63A 1P 3P 4P 1P+N
    • 6kA Electric Circuit Breaker , 2 Pole Circuit Breaker 1~63A 1P 3P 4P 1P+N
    • 6kA Electric Circuit Breaker , 2 Pole Circuit Breaker 1~63A 1P 3P 4P 1P+N
  • 6kA Electric Circuit Breaker , 2 Pole Circuit Breaker 1~63A 1P 3P 4P 1P+N

    Product Details:

    Place of Origin: China
    Brand Name: Schneider Electric
    Certification: CE, CCC etc.
    Model Number: OSMC32N

    Payment & Shipping Terms:

    Minimum Order Quantity: 12pcs / 1doz.
    Price: USD3~50/unit
    Packaging Details: standard in carton box
    Delivery Time: 2~15days
    Payment Terms: T/T, Western Union
    Supply Ability: 100,000 pcs/month
    Contact Now
    Detailed Product Description
    Model: OSMC32N Pole(s): 1,2,3,4, DPN/1P+N
    Volt: 220~240VAC, 380~400VAC Hz: 50~60Hz
    Phase: 1/3 Standard: EN/IEC60898
    Certification: CCC, CE, GS Etc. Breaking Capacity: Ics=Icn=6000A 10kA
    Thermal Trip Curve: B,C,D Case Material: PC Thermal Formed
    Wiring: Terminal Block, Busbar Duct Etc. IP20B Electric Shock Protection: Class II
    Mechanical Life: 20,000 Electrical Life: 10,000
    High Light:

    molded case circuit breaker

    ,

    electric circuit breaker

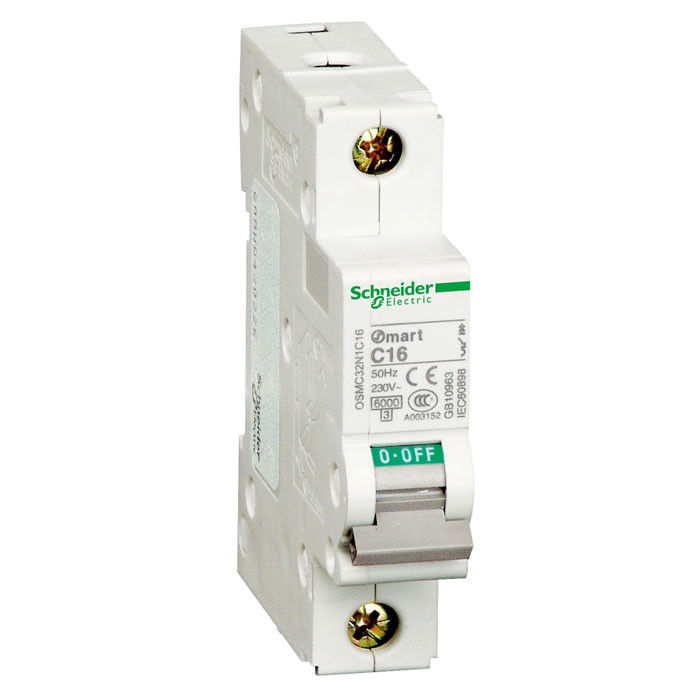

    Osmart OSMC32N 6kA Schneider Electric Miniature Circuit Breaker 1~63A, 1P,2P,3P,4P,1P+N in compliance with IEC-EN60898





    Osmart OSMC32N MCBs

    Schneider Electric Original Made In China

    Miniature Circuit Breakers up to 63 A

    characteristic

    * Product standard: GB10963.1/IEC 60898
    * Product Certification: CCC, CE, CCS, RoHS, REACh
    * Product poles: 1P, 2P, 3P, 4P
    * Tripping curve: B/C/D
    * Breaking capacity: 6kA
    * Rated current: 1~63A
    * Base temperature: 30 ° C
    * Use ambient temperature: -30 ° C ~ +70 ° C
    * Mechanical life: 20000



    Advantage

    Modular product
    * Each module is unified to a width of 9mm, which is simplified to simple
    2. Tunnel terminal block
    * Make the wire easy to be put into the correct position, the wire is crimped more firmly, and the terminal heat and product damage caused by poor contact caused by the virtual connection are prevented.
    3. Bistable locking clip
    * Easy to install on DIN international standard rails without special installation. It can be mounted vertically or horizontally on the track as needed without affecting its performance.
    4. Thermoplastic casing
    * Strong impact resistance
    * Recyclable
    * bouncy
    * Self-extinguishing
    5. Materials comply with EU Rohs certification
    * Fully meet the domestic use and equipment export of OEM users.

    application

    It is suitable for OEM protection of various industrial equipment and industrial control cabinets, and is not suitable for the protection of low-voltage distribution systems in the construction field.



    main information

    Product Series

    Osmart

    product name

    C32N

    product type

    Miniature Circuit Breaker

    Number of poles

    1P

    Number of protection poles

    1

    Rated current [In]

    16 A at 30 °C in accordance with IEC 60898-1
    16 A on 30 °C in accordance with GB 10963.1

    Trip curve

    C



    Additional information

    Network Type

    AC

    Network frequency

    50 Hz

    Rated working voltage [Ue]

    230 V AC 50 Hz

    Trip unit type

    Thermal magnetic

    Breaking capacity

    6 kA Icn on 230 V AC 50 Hz in accordance with IEC 60898-1
    6 kA Icn on 230 V AC 50 Hz in accordance with GB 10963.1

    Current limit

    3 in accordance with IEC 60898-1
    3 in line with GB 10963.1

    Installation type

    Snap lock

    Installation method

    DIN rail mounting

    height

    81 mm

    width

    18 mm

    depth

    44 mm

    product weight

    110 g

    colour

    Light body: light grey (RAL 7035)
    Handle: Dark grey (Pantone 402C)
    Locking buckle: Light grey (RAL 7035)

    Mechanical life

    20000 times

    Pollution level

    3

    Tightening torque

    2 Nm wiring or wiring



    surroundings

    Standards compliant

    GB 10963.1
    IEC 60898-1

    certified product

    CCC
    CCS
    REACH

    Quality identification

    CE statement

    Compliance with instructions

    RoHS

    Moisture resistance

    2

    Relative humidity

    95 % on 55 °C

    Operating temperature

    -30...70 °C



    main information

    Product Series

    Osmart

    product name

    C65H

    product type

    Miniature Circuit Breaker

    Number of poles

    4P

    Number of protection poles

    4

    Rated current [In]

    25 A at 40 °C in accordance with IEC 60947-2
    25 A at 40 °C in accordance with GB 14048.2

    Trip curve

    D



    Additional information

    Network Type

    AC

    Network frequency

    50 Hz

    Rated working voltage [Ue]

    415 V AC 50 Hz

    Trip unit type

    Thermal magnetic

    Breaking capacity

    10 kA Icu on 415 V AC 50 Hz in accordance with IEC 60947-2
    10 kA Icu on 415 V AC 50 Hz in accordance with GB 14048.2

    Current limit

    3 in accordance with IEC 60947-2
    3 in line with GB 14048.2

    Installation type

    Snap lock

    Installation method

    DIN rail mounting

    height

    81 mm

    width

    72 mm

    depth

    44 mm

    product weight

    450 g

    colour

    Light body: light grey (RAL 7035)
    Handle: Dark grey (Pantone 402C)
    Locking buckle: Light grey (RAL 7035)

    Mechanical life

    20000 times

    Pollution level

    3

    Tightening torque

    3.5 Nm wiring or wiring



    surroundings

    Standards compliant

    GB 14048.2
    IEC 60947-2

    certified product

    CCC
    CCS
    CE

    Compliance with instructions

    RoHS

    Moisture resistance

    2

    Relative humidity

    95 % on 55 °C

    Operating temperature

    -30...70 °C

     6kA Electric Circuit Breaker , 2 Pole Circuit Breaker 1~63A 1P 3P 4P 1P+N 0

    6kA Electric Circuit Breaker , 2 Pole Circuit Breaker 1~63A 1P 3P 4P 1P+N 1

    6kA Electric Circuit Breaker , 2 Pole Circuit Breaker 1~63A 1P 3P 4P 1P+N 2
