Custom Low Voltage Distribution Board , GCK/GCS Switch Panel Enclosure Up To 4000A IEC 61439

Custom Low Voltage Distribution Board , GCK/GCS Switch Panel Enclosure Up To 4000A IEC 61439

    • Custom Low Voltage Distribution Board , GCK/GCS Switch Panel Enclosure Up To 4000A IEC 61439
    • Custom Low Voltage Distribution Board , GCK/GCS Switch Panel Enclosure Up To 4000A IEC 61439
    • Custom Low Voltage Distribution Board , GCK/GCS Switch Panel Enclosure Up To 4000A IEC 61439
    • Custom Low Voltage Distribution Board , GCK/GCS Switch Panel Enclosure Up To 4000A IEC 61439
  • Custom Low Voltage Distribution Board , GCK/GCS Switch Panel Enclosure Up To 4000A IEC 61439

    Product Details:

    Place of Origin: China
    Brand Name: None
    Certification: CE,CCC
    Model Number: GCK/GCS

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Unit
    Price: USD600~USD10,000
    Packaging Details: Standard export carton/crate wood box
    Delivery Time: 5-8 working days or bulk order negotiate
    Payment Terms: T/T, Western Union
    Supply Ability: 300pcs/month
    Contact Now
    Detailed Product Description
    Material: Cold Rolled Sheet Steel Color: White,gray,RAL 7035
    Application: To Protect Circuit Breakers Installed In The Panel Box,Indoor Or Outdoor,Industrial Type: Distribution Box,Power Distribution System
    Protection Level: IP54 Rated Voltage: 220/380V,120V/240V
    Standard: IEC60439-3 Rated Current: 630A-4,000A
    Function: Electrical Distribution Or Motor Control Center Certification: CE
    Working Temperature: -40 To +80 Degrees Centigrade Name: Distribution Cabinet/Power Electric Meter Box
    Mounting Type: Flush Or Surface
    High Light:

    distribution board box

    ,

    industrial power distribution board

    Custom Low Voltage Electrical Distribution GCK/GCS Switch Panel Enclosure up to 4,000A in Complianced with IEC 61439





    GCS switch cabinets/Switchgear panel

    GCS device is suitable for power plants, petroleum, chemical, metallurgy, textile, high-rise building and other industries of power distribution system . In large power plant ,petrochemical system, and computer interface places with a high degree of automation,requiring for computer interface ,as the three-phase AC frequency of 50 (60) Hz, rated working voltage is 380V (400V), (660 V), rated current is 4000A and below, distribution in the power supply system, motor centralized control,power distribution using reactive power compensation of low voltage device.





    Technical data

    Item

    Name

    Parameter

    1

    Main circuit rated voltage(V)



    AC 380(400),(660)

    2

    Rated voltage of auxiliary circuit(V)



    AC 220,380(400) DC 110,220

    3

    Rated frequency(Hz)



    50/60

    4

    Rated insulation voltage(V)



    660(1000)

    5

    Rated current(A)

    Horizontal busbar

    ≤4000





    Vertical busbar(MCC)

    1000

    6

    Busbar rated short-time withstand current(kA/1s)



    50,80

    7

    Busbar rated peak withstand current(kA/0.1s)



    105,176

    8

    Power frequency test voltage(V/1min)

    Main circuit

    2500





    Auxiliary circuit

    1760

    9

    A bus or bus bar

    Three-phase four wire system

    A.B.C.PEN





    Three-phase five wire system

    A.B.C.PE.N

    10

    Protection level



    IP30.IP40

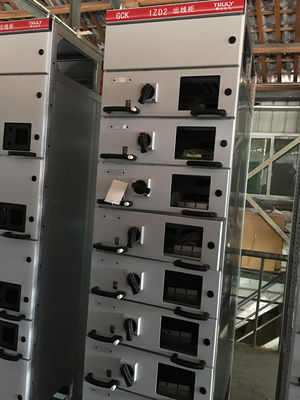

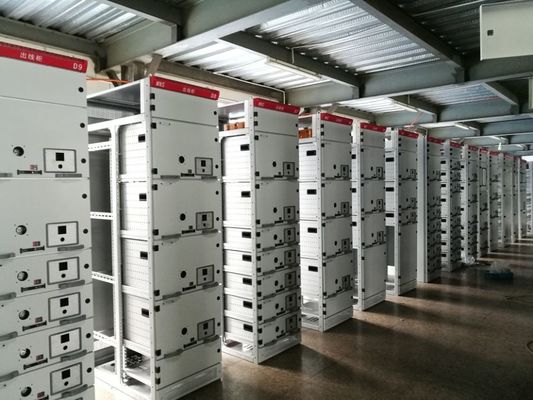

    GCK switch cabinets/Switchgear panel

    GCK switch cabinets/Switchgear panel apply to the exchange of 50HZ, rated insulation voltage 380V low-voltage distribution system as affected by electricity, feed, the mother Union, lighting, motor control and power compensation purposes, which includes Power Center (PC) and the Motor Control Center (MCC) the function and can be designed as a fixed cabinets and drawer cabinets hybrid systems to meet the needs of the different power supply.



    GCK Switchgear panel for the whole assembly-type composite structure, the basic framework with specific profiles, assembly formed.
    2. Enclosure skeleton, part dimensions and hole size according to the basic module, E = 20mm change.
    3. In the MCC program, Switchgear panel parts into five areas (rooms): the level of bus zone, vertical busbar area, functional unit area, cable rooms, neutral grounding bus zone. District of mutual isolation, to ensure normal operation of line, effectively preventing the failure to expand.
    4. Since all structures Shelves are sturdy self-tapping locking screw connection is made to avoid the welding deformation and stress, improve accuracy and grounding continuity.
    5. Good versatility, adaptability, a high degree of standardization.
    6. Functional unit (drawer) is out, insert as a lever action, 320mm Following a single drawing board, 400mm above the upper and lower pairs of pull pull, rack configuration roll
    Dynamic bearing operating light and reliable.
    7. MCC drawer has eight kinds of standard sizes, namely:
    8. PC program, each one to three cabinets can be mounted air circuit breaker.
    9. MCC program in the second couplings, in the docking mode of use of mobile rail-oriented, to ensure interchangeability of modules, while the functional units can be used in accordance
    10. This Switchgear panel is out type switch cabinet and other comparative features of compact structure, high strength, high-performance, safe and reliable and so on.
    11. Framework, doors and so on with epoxy powder coating electrostatic spray insulation is good, durabletion



    Type

    Switchgear panel Project

    Switchgear panel Specifications

    GCK

    Switchgear panel Standard

    GB7251,IEC439,VPE0660,JB/T9661

    Switchgear panel Protection level

    IP4X

    Rated working voltageV

    380

    frequency HZ

    50

    Rated insulation voltage

    660



    Switchgear panel Working environment

    environment



    Altitude

    ≤2000m

    Temperature

    -10~40,

    -30

    -10 ~ +40 in storage, transport conditions,
    A minimum temperature of -30

    Relative Humidity

    ≤90%

    Control of motor capacity KW

    0.45~155

    Switchgear panel Mechanical life

    500



    Switchgear panel Rated current



    1600,2000,2500,3200,4000



    1000,1200



    Main circuit contact connector

    200,400,630



    Auxiliary circuit contact connector

    10,20



    The maximum current-fed circuit

    PC

    1600

    MCC

    630

    the electric circuit

    1000,1600,2000,2500,3150,4000





    Rated short-time withstand current



    RMS

    50,80

    peak

    105,176



    Pressure V/1min

    2500





    Custom Low Voltage Distribution Board , GCK/GCS Switch Panel Enclosure Up To 4000A IEC 61439 0

    Custom Low Voltage Distribution Board , GCK/GCS Switch Panel Enclosure Up To 4000A IEC 61439 1

    Custom Low Voltage Distribution Board , GCK/GCS Switch Panel Enclosure Up To 4000A IEC 61439 2

    Custom Low Voltage Distribution Board , GCK/GCS Switch Panel Enclosure Up To 4000A IEC 61439 3

    Custom Low Voltage Distribution Board , GCK/GCS Switch Panel Enclosure Up To 4000A IEC 61439 4
