SMC/DMC Weatherproof Distribution Box FRPGRP Fiberglass Enclosure Electrical Polyester Enclosure

SMC/DMC Weatherproof Distribution Box FRPGRP Fiberglass Enclosure Electrical Polyester Enclosure

    • SMC/DMC Weatherproof Distribution Box FRPGRP Fiberglass Enclosure Electrical Polyester Enclosure
    • SMC/DMC Weatherproof Distribution Box FRPGRP Fiberglass Enclosure Electrical Polyester Enclosure
    • SMC/DMC Weatherproof Distribution Box FRPGRP Fiberglass Enclosure Electrical Polyester Enclosure
    • SMC/DMC Weatherproof Distribution Box FRPGRP Fiberglass Enclosure Electrical Polyester Enclosure
    • SMC/DMC Weatherproof Distribution Box FRPGRP Fiberglass Enclosure Electrical Polyester Enclosure
  • SMC/DMC Weatherproof Distribution Box FRPGRP Fiberglass Enclosure Electrical Polyester Enclosure

    Product Details:

    Place of Origin: China
    Brand Name: Fenigal/None
    Certification: CE,CCC
    Model Number: WPB

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Unit
    Price: USD30~USD200
    Packaging Details: Standard export carton
    Delivery Time: 5-8 working days or bulk order negotiate
    Payment Terms: T/T
    Supply Ability: 1,000pcs/month
    Contact Now
    Detailed Product Description
    Material: Polyester Color: Grey White/Transparent Cover
    Application: Power Distributing Type: Distribution Box Electrical Boxes
    Installation Type: Surface Type/ Flush Type Standard: IEC60439-3
    Rated Voltage: 220V-380V,220/110V Rated Current: 32,63A,100A
    Frequency: 50 HZ/60HZ External Size: 230*381*110mm
    Working Temperature: -40 To +80 Degrees Centigrade
    High Light:

    ac power distribution box

    ,

    weatherproof db box

    FRP/GRP Fiberglass enclosure IP66 Electrical Polyester Enclosure SMC/DMC distribution box



    Polyester enclosure
    New type, made by polyesters. The characteristics of the polyesters is its own min 30% fibre glass, make it reached high
    resistance and mechanical stiffness, have the same effect of metal enclosure which is 3 times heavier than it. Compared with metal enclosure,
    Lighter, more adequate for corrosion and dankish environment.
    Material:fiberglass/ SMC,self-extinguishable or UV material are on request

    Polyester enclosures(Fiberglass/SMC/FRP/GRP Enclosure)

    Material:fiberglass/SMC/DMC, self-extinguishable or UV material are on request.



    Resistance against rusting and corrosion by chemical or atmospherical condition.

    Easy to machine/ easy to move around and install because of its lightness.

    Door hinges allows more than 180° opening.



    -Supply include:

    Door with lock system,enclosure,wall mount brackets 4pcs/set.

    Mounting plate to be supplied separately as to the clients request.



    Color: RAL7035

    Protection degree: IP65

    Working temperature: -40 to +120 degree

    Mechanical impact: IK09



    Surface treatment: painted with epoxy polyester coating



    Dimension Allowance: ±1mm





    Application: -for housing sensitive electronic assemblies, pneumatic, hydraulic and electrical devics in commercial and

    industrial environments, providing effective shielding of EMI & RFI.

    - boxes on internal base for fixing PCB horizontally or connection of earth grounding, terminals, etc



    Advantages: -excellent resistance against chemicals.

    - can be used in wide temperature range

    - can be used indoor, outdoor, even harmful environment, eg. coastal area where expects to contact sea water



    Supply include:
    door with lock system,enclosure,wall mount brackets 4pcs/set.
    Mounting plate to be supplied separately as to the clients request
    Resistance against rusting and corrosion by chemical or atmospherical condition
    Easy to machine/easy to move around and install because of its lightness.
    Door hinges allows more than 180°opening

    .The use is also convenient for the installation of Terminal Substitution Rail, aluminium case , Button Box, Small Terminal, Signal ,Relay and Sensor, Communication and joint Box etc.

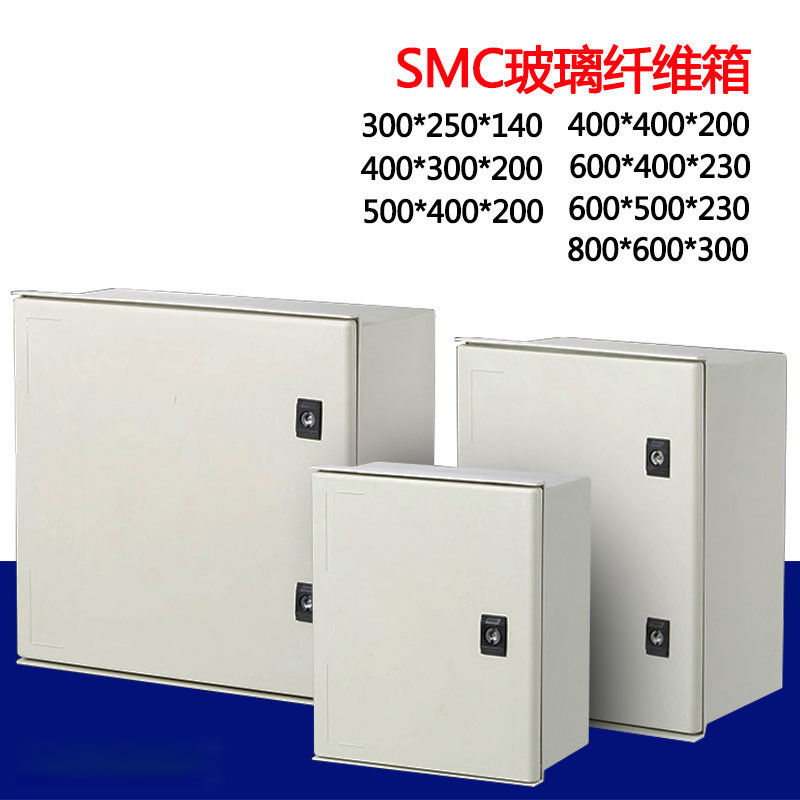

    SMC Ployster Enclosure,Fiberglass Box

    DMC Ployster Enclosure,Fiberglass Box

    Size

    Model

    Size

    Model

    300*250*140

    SMC-302514

    300*240*150

    DMC-302415

    400*400*200

    SMC-404020

    418*318*162

    DMC-413116

    500*400*200

    SMC-504020

    500*430*200

    DMC-504320

    600*500*230

    SMC-605023

    650*500*250

    DMC-655025

    800*600*300

    SMC-806030

    400*400*200

    DMC-404020
