Three Phase Compensation 415V Power Voltage Stabilizer

Three Phase Compensation 415V Power Voltage Stabilizer

    • Three Phase Compensation 415V Power Voltage Stabilizer
    • Three Phase Compensation 415V Power Voltage Stabilizer
    • Three Phase Compensation 415V Power Voltage Stabilizer
    • Three Phase Compensation 415V Power Voltage Stabilizer
  • Three Phase Compensation 415V Power Voltage Stabilizer

    Product Details:

    Place of Origin: China
    Brand Name: Fenigal
    Certification: CE,CCC
    Model Number: SBW

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: Negotiate
    Packaging Details: Standard export carton
    Delivery Time: 5-8 working days or bulk order negotiate
    Payment Terms: T/T, Western Union
    Supply Ability: 1,000pcs/month
    Contact Now
    Detailed Product Description
    Voltage: 380V/415V Power: 10kVA~200kVA(3phase)
    Material: Steel Case + Pure Copper Coil
    High Light:

    415V low voltage stabilizer

    ,

    Three Phase power guard stabilizer

    SBW series three phase full-automatic compensation power voltage stabilizer 380V-415V



    SBW series single-phase and three phase full-automatic compensation power voltage stabilizer(hereafter call voltage stabilizer) is a contact adjustable stabilizer,application when outside electricity power fluctuation or load power all time difference rebellious voltage fluctuation,this stabilizer can automatic keep output voltage stabilization,this series products compare with other stabilizer have as follow feature:have big capacity,efficiency very high, non-lack fidelity in wave distortion,the voltage adjustable balance,self-cooling and successively working for long period and long service time,can endure instantaneous over-load,as well as transferring between manual control and automatic control system,besides it is provided with protection over-voltage,over-load(over-current),lack phase or phase fail,phase sequence protect and mechanical breakdown automatic protect,EMI and surge protector and has following merites:small volume,light weight.convenient installation and reliable running and so on(pin meter display and digital display),



    Service Occasions:

    Widely used in electromechanical equipment,metal processing equipment,production line.construction device.excvavtor for gold mine,post and telecommunications,department stores,elevators.hospitals equipment.schools.printing machine.securities and other occasions where all need normally voltage to ensure,such as workshop mines medium enterprises.some of the important equipement and computer power and support where need voltage stabilization.


    Spec.:

    Input Voltage Range Three phase four wire,300V-460V or 266V-495V(SBW).pls indicate when placing order
    Phase Number Three Phase Four Wire(SBW)
    Frequency 50/60Hz
    Output Voltage

    Three phase four wire,phase voltage 220V,wire voltage 380V,singe-phase voltage 220V(SBW)

    Output Precsion 380V±3%,220V±2%,2-5% adjustable
    Response Time <1.5sec.against 10% input voltage deviation
    Efficiency AC-AC >98% other we can do according to customer requirement such as 80%
    Power Factor Cost 0.8
    Waveform Distortion Non-lack fidelity waveform, Sine Wave
    Insulation Resistance >2MΩ
    Over-load capability 2 times rated current,keeping 1minuter(voltage stabilizer special for elevator and CT and servo-motor and water pump)
    Electric Strength Bear power frequency sine voltage 2000V for 1 Minute without breakdown or flash over.
    Auto/Manual Power on can be choice inside build knife switch and AC contactor
    Protection Function Over-Voltage,under-voltage.Over-load(over-current), Short Circuit,Delay time choice,surge protect,EMI,phase-sequency and phase fail and phase UN-balance protection and machical fault.,
    Ambient Temperature -10℃+45℃
    Relative Humidity

    >90%







    Three Phase Compensation 415V Power Voltage Stabilizer 0



    Three Phase Compensation 415V Power Voltage Stabilizer 1

    Three Phase Compensation 415V Power Voltage Stabilizer 2

    Three Phase Compensation 415V Power Voltage Stabilizer 3



    SBW Series Packing information:

    Model Output Max Current(A) Products Dimension(cm) Net Weight(kg)
    SBW-30kVA 45 70×57×121 250
    SBW-50kVA 76 80×54×135 300
    SBW-60kVA 91 80×54×135 315
    SBW-80kVA 121 85×62×150 350

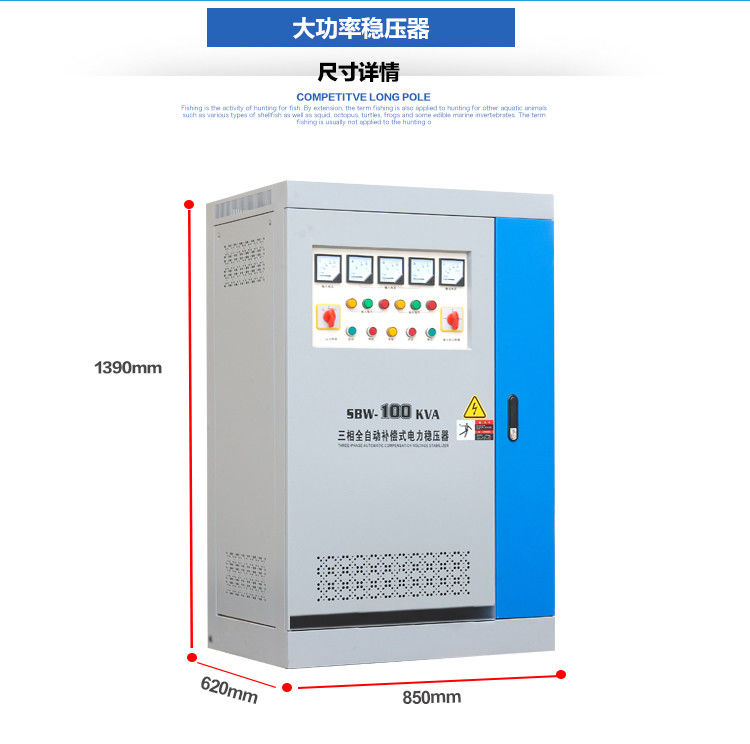

    SBW-100kVA 152 85×62×150 400
    SBW-120kVA 182 85×62×150 460
    SBW-150kVA 227 100×70×165 480
    SBW-180kVA 273 100×70×165 550

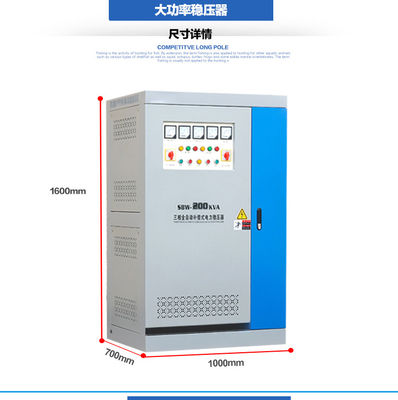

    SBW-200kVA 303 100×70×165 580
    SBW-225kVA 241 110×80×185 715
    SBW-250kVA 379 110×80×185 755

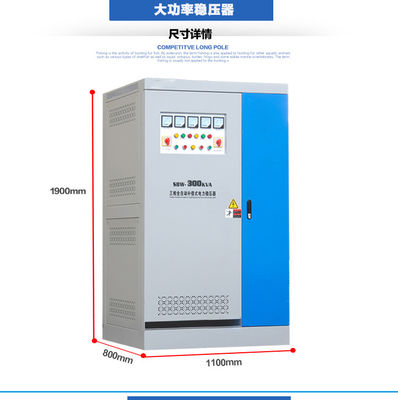

    SBW-300kVA 455 110×80×200 810
    SBW-320kVA 485 110×80×200 900
    SBW-350kVA 530 110×80×200 950

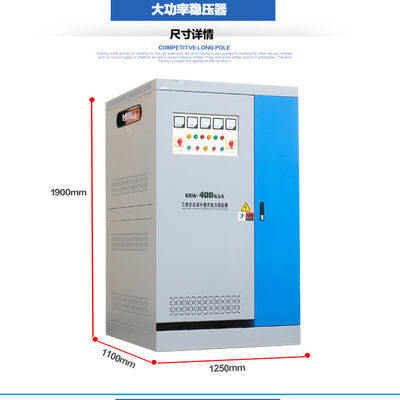

    SBW-400kVA 606 120×85×200 1030
    SBW-450kVA 682 100×80×200/2 Case 1380
    SBW-500kVA 758 100×80×200/2 Case 1510
    SBW-600kVA 909 100×80×200/2 Case 1700
    SBW-800kVA 1212 100×80×200/3 Case 2750
    SBW-1000kVA 1515 100×80×200/3 Case 3050
    SBW-1200kVA 1818 100×80×200/4 Case 3650
    SBW-1400kVA 2121 100×80×200/4 Case 4080
    SBW-1600kVA 2424 100×80×200/4 Case 5100
    SBW-2000kVA 3030 100×80×200/4 Case 5800
