Customised Complete IP44 Electrical Distribution Box

Customised Complete IP44 Electrical Distribution Box

    • Customised Complete IP44 Electrical Distribution Box
    • Customised Complete IP44 Electrical Distribution Box
    • Customised Complete IP44 Electrical Distribution Box
    • Customised Complete IP44 Electrical Distribution Box
  • Customised Complete IP44 Electrical Distribution Box

    Product Details:

    Place of Origin: China
    Brand Name: Chint
    Certification: CE,CCC
    Model Number: XL-21, JXF, GGD

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Unit
    Price: USD20~USD200
    Packaging Details: Standard export carton/crate wood box
    Delivery Time: 5-8 working days or bulk order negotiate
    Payment Terms: T/T, Western Union
    Supply Ability: 300pcs/month
    Contact Now
    Detailed Product Description
    Material: Stainless Steel Color: White
    Application: To Protect Circuit Breakers Installed In The Panel Box,Indoor Or Outdoor,Industrial Type: Distribution Box,Power Distribution System
    Protection Level: IP44 Standard: IEC60439-3
    Function: Stainless Distribution Box Certification: CE
    Name: Distribution Cabinet/Power Electric Meter Box Specification: 1800*800*400
    High Light:

    customised electrical distribution box

    ,

    IP44 electrical distribution box





    General:

    XL21 metal floor stand cabinets comprise a 9-folded profile structure, unwelded at the top and bottom of the frame, with removable screws in vertical profiles for strength and versatility with the cabinets. Thermosetting epoxy polyester powder coating in textured RAL 7035 or RAL 7032.



    This Series Flush Type and Surface Type Suitable for indoor use, meanwhile, the plastic-sprayed surface has a stylish appearance.
    Products are available for the installation of terminal substitution rail, button box, small terminal, sigal, relay and sensor, communication and joint box etc.



    Technical Data



    Items Parameters
    Rated insulation voltage (V) 660
    Rated operating voltage (V) 380/660
    Auxiliary circuit rated voltage (V) AC 220/380
      DC 110/220
    Operating frequency (Hz) 50 - 60
    Rated current (A) Horizontal bus-bar < 3150
      Vertical bus-bar 630/800
    Rated short-time withstand current Midline (kA/1 s) 50
      Bus-bar (kA/1 s) 30
    Rated peak current (kA/0.1 s) 105/50
    Functional unit breaking capacity (kA) 50 (effective value)
    Cabinet protection degree IP40
    Bus-bar Three phase four wire system, three phase five wire system
    Operating mode On-site, distance and automatic

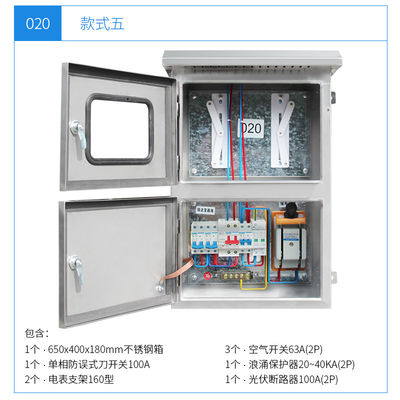

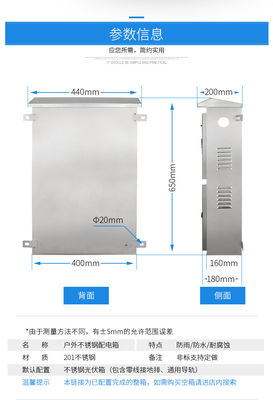

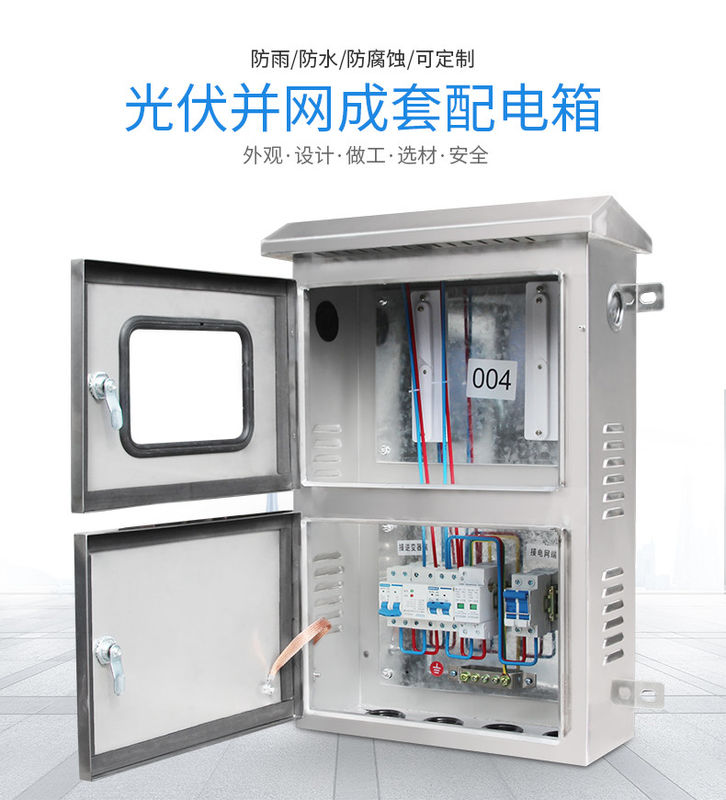

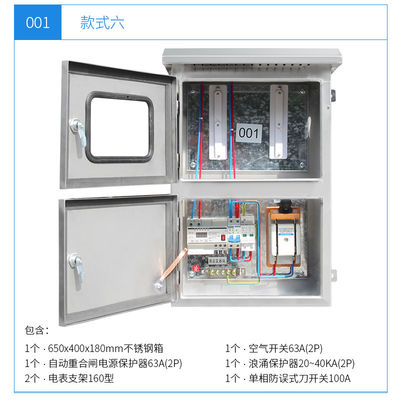

    Customised Complete IP44 Electrical Distribution Box 0Customised Complete IP44 Electrical Distribution Box 1Customised Complete IP44 Electrical Distribution Box 2Customised Complete IP44 Electrical Distribution Box 3

    Customised Complete IP44 Electrical Distribution Box 4
