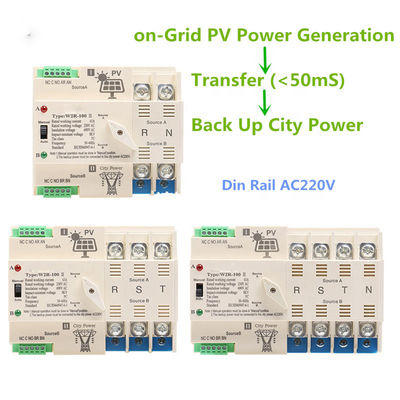

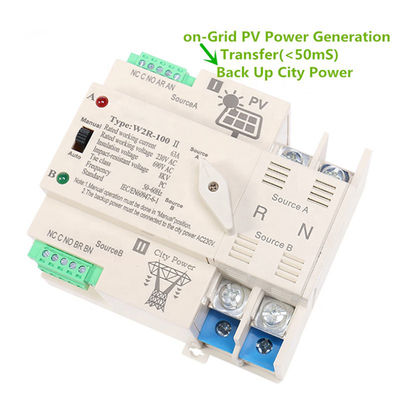

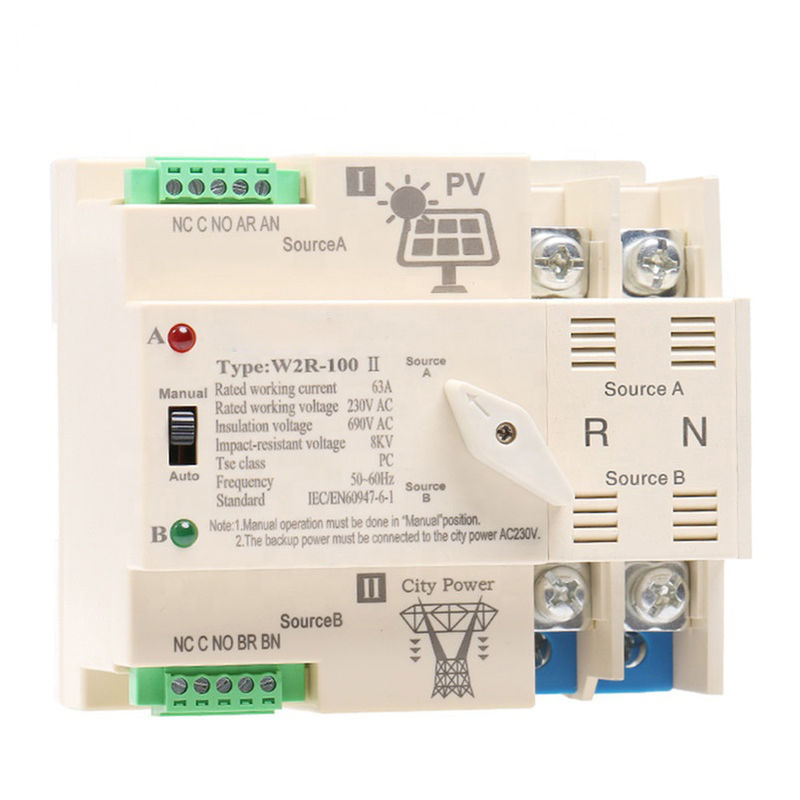

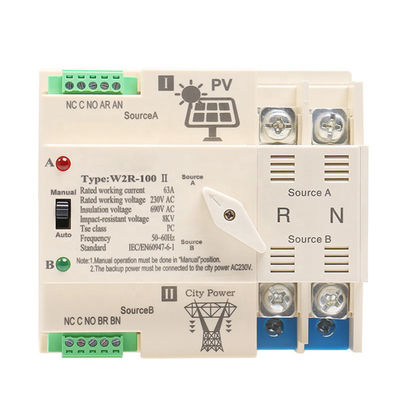

AC220V PV Solar Din Rail 2P 63A ATS Dual Power Automatic Transfer Switch

AC220V PV Solar Din Rail 2P 63A ATS Dual Power Automatic Transfer Switch

  • AC220V PV Solar Din Rail 2P 63A ATS Dual Power Automatic Transfer Switch
  • AC220V PV Solar Din Rail 2P 63A ATS Dual Power Automatic Transfer Switch
  • AC220V PV Solar Din Rail 2P 63A ATS Dual Power Automatic Transfer Switch
  • AC220V PV Solar Din Rail 2P 63A ATS Dual Power Automatic Transfer Switch
AC220V PV Solar Din Rail 2P 63A ATS Dual Power Automatic Transfer Switch
Product Details:
Place of Origin: China
Brand Name: Fenigal/OEM
Certification: CE,CCC
Model Number: GEYA
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiate
Packaging Details: Standard export carton
Delivery Time: 5-8 working days bulk order negotiate
Payment Terms: T/T, Western Union
Supply Ability: 10,000pcs/month
Contact Now
All Products
Lighting Distribution Box (33)
Electrical Distribution Box (31)
Weatherproof Distribution Box (47)
Fiberglass Enclosure Box (36)
ATS Automatic Transfer Switch (55)
EDI Modules (24)
Industrial Circuit Breaker (81)
Solar PV System (72)
Electric EV Charging Station (21)
Modular Timing Relays (12)
Automation Control Relays (64)
Voltage Regulator Transformer (16)
Film Lighting Balloons (105)
Moon Balloon Light (119)
Tripod LED Balloons (58)
Inflatable Light Tower (39)
Terminal Block Accessories (6)
Detailed Product Description
Product Name: PV Solar Power Dual ATS Pole: 2P 3P 4P
Standard: IEC60947-6-1 Product Name: Dual Power Automatic Transfer Switch ATS
Color: White, Grey Rated Current: 10A-63A
Operation Type: Manual Operation,Auto&Manual Rated Voltage: 1000V And Below
Power Supply: AC 230V Rated Frequency:: 50/60Hz
High Light:

ats dual power automatic transfer switch

,

220V ats dual power automatic transfer switch

,

dual power automatic transfer switch ats

AC220V PV Solar Power Dual Power Automatic Transfer Switch Din Rail 2P 63A ATS



General

PV Solar Power Dual ATS series dual power automatic transfer switch is new developed micro household power transfer switch..

The switch is mainly used for testing whether normal or spare power is normal or not. When the normal power is abnormal, the spare power works at once, which therefore ensures the continuirty, reliability, and safety of power supply. The product is specially designed for household orbit-type installation and specially use in PZ30 power distribution box.

FMQ1D-63 series automatic transfer switch is suitable for the emergency power supply system with 50 or 60 Hz alternatting current rated 400V 63A. ATS is compact in structure, reliable in transfer, convenient in instabllation and maintenance, and has long lif expectancy. Widely used In various occasions where continuous power failure ls not allowed, it can be operated both electrically and manually.



Technical Data
Main technical indexes
Conventional heating current 125A 160A 250A 400A 630A 800A 1000A 1250A 1600A 2000A 2500A 3200A
Rated insulation voltage Ui 800V
Rated impaction withstand voltage Uimp 8Kv 12KV
Rated working voltage Ue AC440v
Rated working current le AC-32B 125 160 250 400 630 800 1000 1000 1250 2000 2000 2500
Rated making copaaity 17KA 25.2KA 34KA
Rated breaking capocity 　
Rated limiting short-circuit current 20KA 50KA
Rated short time withstand current ls 10KA 12.6KA 20KA
Change-over time 2S 3S
voltage of control power supply AC220V
Energy consumption of the motor Start 300w 325w 355w 400w 440w 600w
Normal 55w 62w 74w 90w 98w 120w
Weight Kg 4-pole 7.5 8.8 9 16.5 17 32 36 40 49 95 98 135
AC220V PV Solar Din Rail 2P 63A ATS Dual Power Automatic Transfer Switch 0

AC220V PV Solar Din Rail 2P 63A ATS Dual Power Automatic Transfer Switch 1
