Veolia MK-9 EDI Stack 35 GPM Ultrapure Water for Solar PV

Veolia MK-9 EDI Stack 35 GPM Ultrapure Water for Solar PV

  • Veolia MK-9 EDI Stack 35 GPM Ultrapure Water for Solar PV
  • Veolia MK-9 EDI Stack 35 GPM Ultrapure Water for Solar PV
  • Veolia MK-9 EDI Stack 35 GPM Ultrapure Water for Solar PV
Veolia MK-9 EDI Stack 35 GPM Ultrapure Water for Solar PV
Product Details:
Place of Origin: China
Brand Name: VEOLIA
Certification: CE
Model Number: MK-9
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: standard export packing
Delivery Time: 5- 8 work days
Payment Terms: T/T,Western Union
Supply Ability: 60000 Units per Month
Contact Now
All Products
Lighting Distribution Box (33)
Electrical Distribution Box (33)
Weatherproof Distribution Box (48)
Fiberglass Enclosure Box (60)
ATS Automatic Transfer Switch (68)
EDI Modules (139)
Ultrafiltration Membrane Modules (57)
Industrial Circuit Breaker (85)
Solar PV System (72)
Electric EV Charging Station (21)
Modular Timing Relays (12)
Automation Control Relays (64)
Voltage Regulator Transformer (16)
Film Lighting Balloons (136)
Moon Balloon Light (131)
Tripod LED Balloons (115)
Inflatable Light Tower (62)
Terminal Block Accessories (6)
Detailed Product Description
Stack Name: MK-9 Dimensions (cm As Width X Height X Depth): 30 X 61 X 74
Total Exchangeable Anions (ppm As CaCO3 ): <13 Conductivity (μS/cm): <22
PH: 4-11 Temperature (°C): 4.4-40
Hardness (ppm As CaCO3 ): <1.0 Pressure Drop: 2.4–3.4 Bar (35–50 Psi)
Inlet Pressure: ≤ 6.9 Bar (100 Psi) Amperage: 0–5.2 ADC
Voltage: 0–400 VDC Recovery: Up To 97%
Application: Solar Photovoltaics And Green Hydrogen
Highlight:

Veolia MK-9 EDI Stack

,

35 GPM ultrapure water system

,

EDI module for solar PV

35 GPM Veolia MK-9 EDI Stack Ultrapure Water for Solar Photovoltaics and Green Hydrogen
Product Specifications
Attribute Value
Stack Name MK-9
Dimensions (cm) 30 x 61 x 74 (W x H x D)
Total exchangeable anions (ppm as CaCO3) <13
Conductivity (μS/cm) <22
pH Range 4-11
Temperature Range (°C) 4.4-40
Hardness (ppm as CaCO3) <1.0
Silica (ppm as SiO2) <1.0
Typical designed water production (m3/hr) 6.0-10.0
Recovery Rate Up to 97%
Voltage 0-400 VDC
Key Features & Benefits
  • Optimized Flow Rate (8.0 m³/h): Designed for mid-to-large-scale industrial systems requiring reliable high-purity water production
  • Veolia/Suez Advanced EDI Technology: Incorporates next-generation membrane and spacer design (MK-9) for superior ion removal efficiency
  • Zero Chemical Regeneration: Eliminates hazardous acid/caustic regeneration chemicals, reducing operational costs and environmental footprint
  • Enhanced Energy Efficiency: Optimized stack hydraulics minimize power consumption per liter of purified water
  • Robust Design & Reliability: Engineered for 24/7 continuous operation with high resistance to scaling and fouling
  • Smart Operation & Integration: Compatible with modern PLC/SCADA systems for real-time monitoring
Technical Parameters
Parameter Value
Brand Veolia EDI
Inlet Pressure 6.9 bar (100 psi)
Max Temperature 40°C (104°F)
Pressure Drop 2.4-3.4 bar (35-50 psi)
Flow Rate 8.0m3/h
Shipping Weight 165 kg (364 lbs)
Veolia MK-9 EDI Stack 35 GPM Ultrapure Water for Solar PV 0

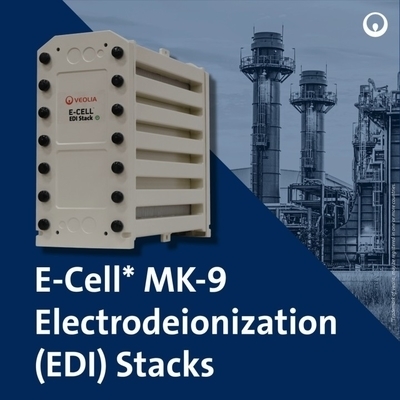

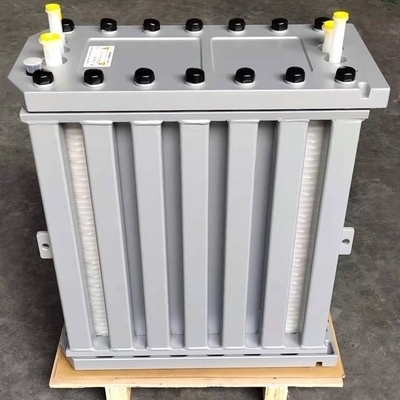

The E-Cell MK-9 module is an electrodeionization (EDI) module that uses electric current to deionize and polish reverse osmosis (RO) water. The MK-9 produces ultrapure water, suitable for today's most demanding water quality industries.
Key Advantages
  • Continuously produces ultrapure water of mixed bed water quality
  • No acid and base regeneration required
  • Guaranteed leak-proof design
  • Simplified system design with no brine injection or concentrated water circulation
Typical Applications
  • Power generation (NOx, boiler feed water)
  • Electronics manufacturing
  • General industrial applications
  • Pharmaceutical & Biotech (WFI pre-treatment)
  • Microelectronics & Semiconductor Manufacturing
  • Laboratory Ultra-Pure Water Systems
Veolia MK-9 EDI Stack 35 GPM Ultrapure Water for Solar PV 1 Veolia MK-9 EDI Stack 35 GPM Ultrapure Water for Solar PV 2 Veolia MK-9 EDI Stack 35 GPM Ultrapure Water for Solar PV 3
Why Choose Veolia MK-9 EDI?
As the direct successor to Suez's industry-leading E-Cell™ technology, the MK-9 stack leverages Veolia's global expertise in water treatment. It delivers unmatched operational efficiency, sustainability, and reliability for demanding 8.0 m³/h ultrapure water applications, backed by Veolia's worldwide service and support network.
