Large Area Illumination Multi Purpose 6m Inflatable Lighting Tower For Engineering Construction

Large Area Illumination Multi Purpose 6m Inflatable Lighting Tower For Engineering Construction

  • Large Area Illumination Multi Purpose 6m Inflatable Lighting Tower For Engineering Construction
  • Large Area Illumination Multi Purpose 6m Inflatable Lighting Tower For Engineering Construction
  • Large Area Illumination Multi Purpose 6m Inflatable Lighting Tower For Engineering Construction
  • Large Area Illumination Multi Purpose 6m Inflatable Lighting Tower For Engineering Construction
Large Area Illumination Multi Purpose 6m Inflatable Lighting Tower For Engineering Construction
Product Details:
Place of Origin: China
Brand Name: Fenigal/NA
Certification: CE
Model Number: Columus-MH1000
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiate
Packaging Details: Standard export carton
Delivery Time: 5-8 working days or bulk order negotiate
Payment Terms: T/T, Western Union
Supply Ability: 200pcs/month
Contact Now
Detailed Product Description
Input Voltage(v): 120V, 230V Working Lifetime(hour): 10000
Height: 6 Meters Weight: 22kg
Lamp Luminous Efficiency(lm/w): 100 Product Type: Glare Free HID Lamp
Color Temperature(cct): Cool White,Warm White Beam Angle(°): 360 Degree
Colour: White,Yellow
High Light:

6m inflatable lighting tower

,

inflatable lighting tower 6m

,

10000h inflatable lighting tower

Inflatable light tower for large area illumination 400w or 1000w

Columus is a name for portable inflatable light tower, which outputs high quality luminance by metal halide lamp or HMI lamp. It integrates high quality HID light sources that could be found in conventional light towers. Besides the virtues that a conventional light tower has, Columus inflatable light tower is best for its portability making transport, storage, setup and use (1 person ok) features, aiming to provide a very different and possible solution for where requiring glare free & 360 degree efficient safey lighting..

It takes 3-5 minutes to setup a columus light tower only by one person. Easy-to-carry features make it a perfect temporary lighting option for quick deploy night actions or other outdoor activities , i.e. wild rescue, fire response, police checkpoint, emergency operation in confined space or area (for example in subway maintenance), and camping etc..

In all, Columus series Inflatable Light Tower is mainly intended for specific application in special occasions, construction, industrial, safety & rescue etc..

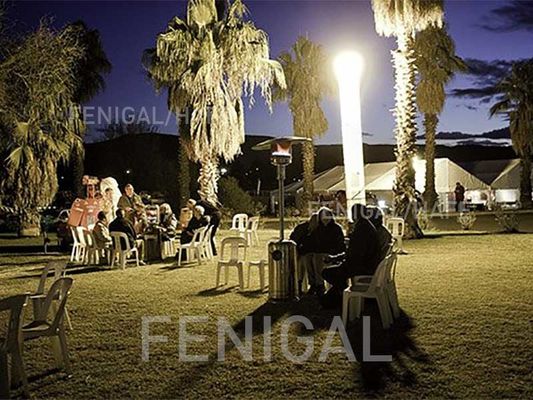

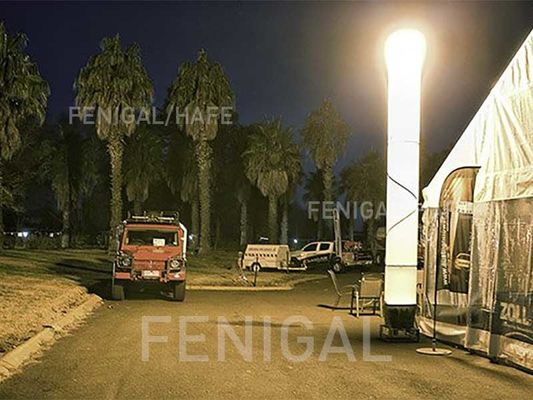

Large Area Illumination Multi Purpose 6m Inflatable Lighting Tower For Engineering Construction 0

Large Area Illumination Multi Purpose 6m Inflatable Lighting Tower For Engineering Construction 1

A revolutionary solution for a large area illumination

  • Simple and rapid deployment by one person in under 1 minute
  • Proven performer in the harshest conditions
  • Able to operate independent of infrastructure
  • Easily transported into the boot of a car
  • Unprecedented lighting coverage of up to 10,000 square metres

TECHNICAL INFORMATION

  • Adjustable Tower height from 3-5 metres
  • Light Source: 600 watt high pressure sodium or metal halide bulb
  • Can resist winds of up to 70 km per hour (with lanyards)
  • Mains power supply 8 amps 240V/50Hz

WEIGHT AND SIZE

  • Weight: 22 kg
  • Length 650 mm
  • Width 485 mm
  • Height 420 mm

GENERAL FEATURES

1) Indoor or outdoor use

2) Two type of high efficient HID light source available - metal halide / HMI

3) Electrically adaptable to global electrical power in AC110, 120, 220, 230V etc. DC/AC convertor version for low-watt models.

4) Resistant to wind up to 40km/h; weather proof;

5) Highly portable, easy to transport



Columus™ has 3 standard ranges:

  • Columus flex (economic) - 400w~2,400w. Lighted area (>1 lx): 1,075m2/11,625ft2 ~ 6,632m2/71,386ft2;
    dia. 40cm x H2.5~4.0m. Either on mains or generator (<4kVA) or battery/converter (12v/24v/48v, columus < 575w), for mobile site, camp, rescue & emergency use etc.
  • Columus standard - 400w~2,400w. Lighted area (>1 lx): 1,075m2/11,625ft2 ~ 6,632m2/71,386ft22;
    Steel frame base + dia. 40cm x H2.8~4.2m. Either on mains or generator (<4kVA) or battery/converter (12v/24v/48v, columus < 575w), for mobile site, camp, rescue & emergency use etc.
  • Columus box - 400w~2,400w. . Lighted area (>1 lx): 1,075m2/11,625ft2 ~ 6,632m2/71,386ft22;
    dia. 40cm x H2.8~4.2m. Either on mains or generator (<4kVA) or battery/converter (12v/24v/48v, columus < 575w)

Besides, Columus could also be classified into below categories on light source options:

  • Columus MH (metal halide, CCT4200k) - 400w~2,000w;
  • Columus HMI (quick hot-restrike, CCT5600k) - 575w~2,400w;
  • Columus SV (sodium vapor, CCT2900k) - 400w~1,000w;

FUNCTIONS

1) lighting/illumination 2) signal 3) decoration

APPLICATIONS

1) Construction
2) Safety & rescue, firefighting, police check point etc.
3) All kinds of event outdoor illumination
4) Camping
5) Military maneuvre
6) National safety, drill

FEATURED PRODUCTS

  • Columus flex400 - 400w metal halide, 36,000lm;
  • Columus flex575 - 575w HMI, 49,000lm;
  • Columus flex1000 - 1000w metal halide, 110,000lm;
  • Columus standard - 1000w metal halide, 110,000lm;
  • Columus standard - 1200w HMI, 110,000lm;

Technical parameters:



    1000w 120-230 V AC 1200w 120-230 V AC
Lighted area > 1lux / 0.1fc m²/ sq.ft. 760 / 2,640 820 /2,810
Lighted area > 10 lux / 1fc m²/ sq.ft. 1,900 / 6,510 910 / 85
Maximum lumen lm 36,000 49,000
Color temperature °K 4200 6500



Applications:

Fire Departments: Staging, First Aid
Police Departments: Forensics, CSI and Emergency Rescue
Homeland Security: Housing Staging, Security
Disaster Cleanup: power outage and cleanup
Construction(DOT): Anti glare lighting
Tunnels: Special Zipper model for tunnels
Roofing: Night time roofing work
Golf: Driving ranges, Putting Greens and Maintenance.
Facilities: Security and Maintenance
Special Events: Wedding, night time events
Rental Industry: Nighttime Rentals
Motion Picture Industry: Security and Lighting
Camping: Scouts, Adventure & Family
City and County Disaster Preparedness: Staging, Cleanup and Organization
Airport Authority: Maintenance and Disaster Recovery
Cruise Lines: Security and emergency rescue
Trucking Industry: Highway Service Vehicles
School System: Security and Emergency Lighting
Armed Services: Army, Navy, Airforce, Marines and National Guard
Border Patrol: Security

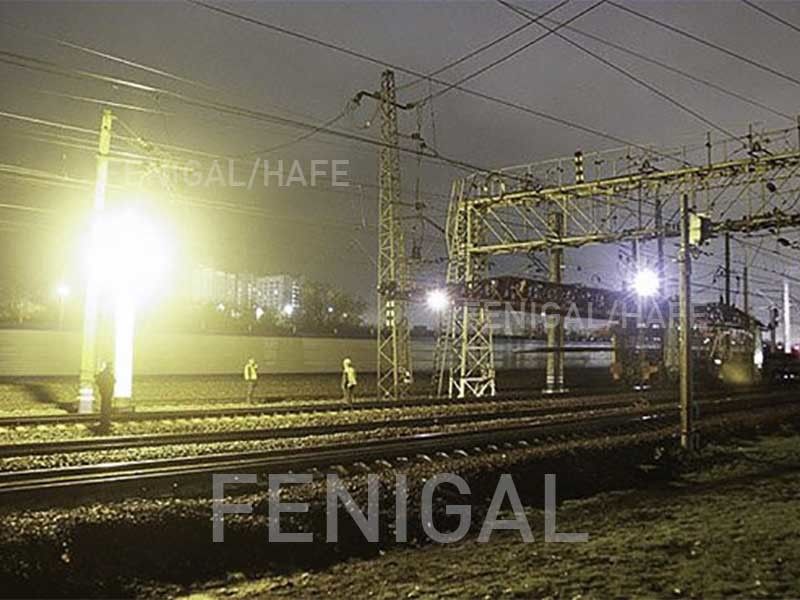

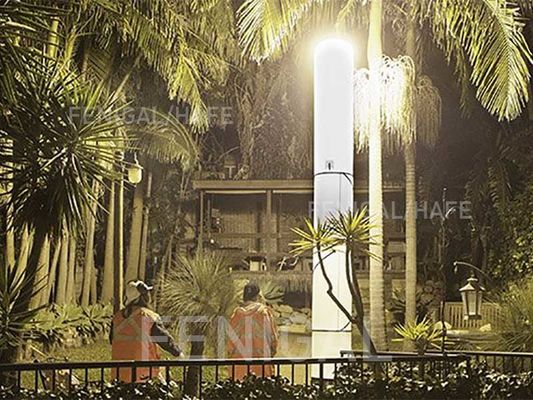

Large Area Illumination Multi Purpose 6m Inflatable Lighting Tower For Engineering Construction 2Large Area Illumination Multi Purpose 6m Inflatable Lighting Tower For Engineering Construction 3
