230V 2P ATS Automatic Transfer Switch 16A 63A 80A Solar Grid
Product Details
| Max. Current: | 100A | Max. Voltage: | 400V |
|---|---|---|---|
| Pole: | 2P,3P,4P | Rated Voltage: | 230V/400V |
| Rated Current: | 16A 20A 25A 32A 40A 50A 63A 80A 100A | Product Name: | Dual Power Automatic Transfer Switch ATS |
| Color: | White | Frequency: | AC 50 Hz/60Hz |
| Operation Type: | Manual Operation,Auto&Manual | Standard: | IEC60947-6-1 |
| Highlight |
Solar Grid Automatic Transfer Switch,230V Automatic Transfer Switch,80A Automatic Transfer Switch |
||
Product Description

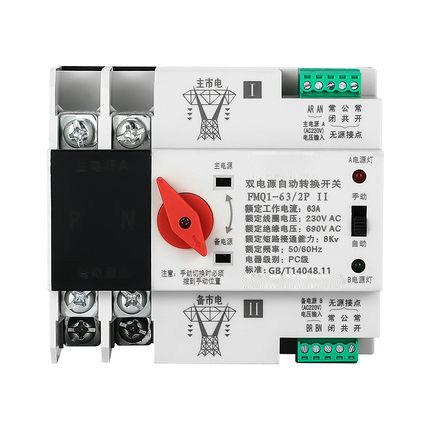

230V Solar Grid 2P Automatic Transfer Switch 16A 20A 25A 32A 40A 50A 63A 80A
General
FMPC series dual power automatic transfer switch is new developed micro household power transfer switch.. The switch is mainly used for testing whether normal or spare power is normal or not. When the normal power is abnormal, the spare power works at once, which therefore ensures the continuirty, reliability, and safety of power supply. The product is specially designed for household orbit-type installation and specially use in DIN rail 35mm guided terminal distribution box.
FMPC series automatic transfer switch is suitable for the emergency power supply system with 50 or 60 Hz alternatting current rated 400V 60A. TSE is compact in structure, reliable in transfer, convenient in instabllation and maintenance, and has long lif expectancy. Widely used In various occasions where continuous power failure ls not allowed, it can be operated both electrically and manually.
Technical Data
| ITEM NO. | FMPC-100 |
| Rated current Ie(A) | 16A, 20A, 25A, 32A, 40A, 50A, 63A,100A |
| Installation | Din rail |
| Rated insulation voltage Ui (V) | AC690, 50HZ |
| Rated working voltage Ue (V) | AC400, 50HZ |
| Rated impulse withstand voltage (KV ) | 8KV |
| Poles | 2P 3P 4P |
| Connecting and breaking | 6.0Ie 1.05Ue cosØ=0.50±0.05, 50 times |
| Operating performance | 2.0Ie 1.05Ue cosØ=0.80±0.05, 6000 times |
| Rated limited short-circuit current Iq | 50KA |
| Control circuit |
Rated supply voltage Us: AC220V, 50HZ. Working condition:85% Us~110% Us |
| Ancillary circuit |
Two isolated relays, each relay with 2 groups of passive switch contact. Contact capacity: AC220 50Hz, Ie=5A |

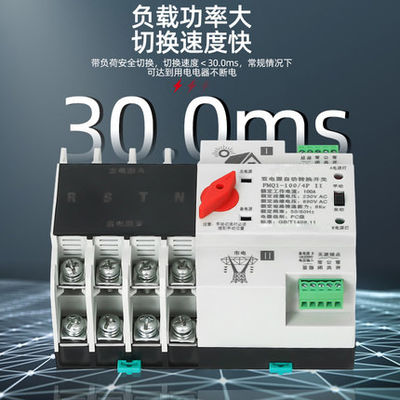

| Switching time | <50ms |
| Action time | <50ms |
