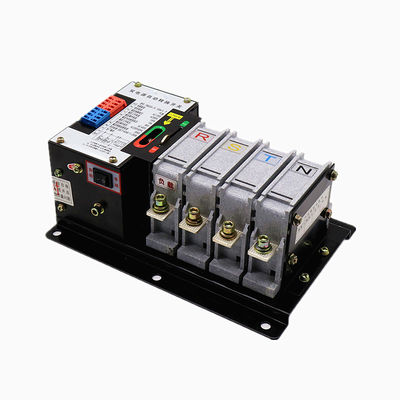

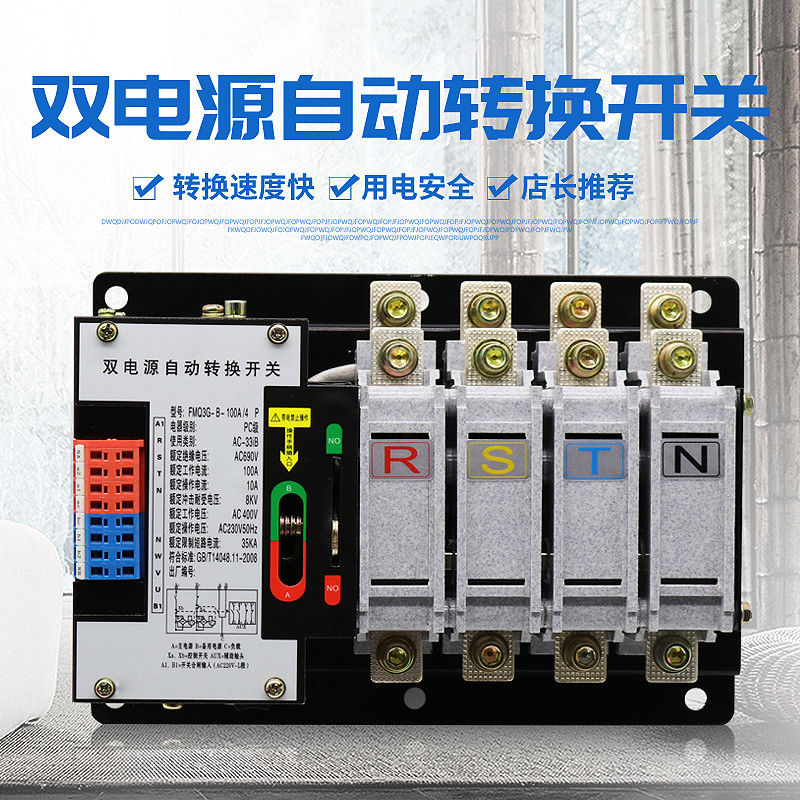

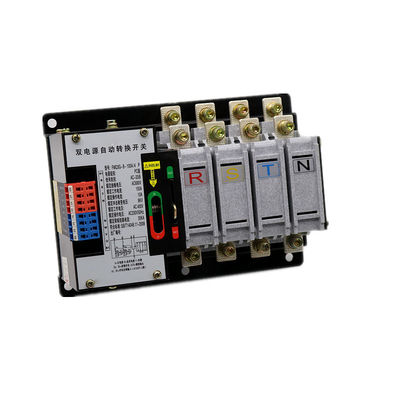

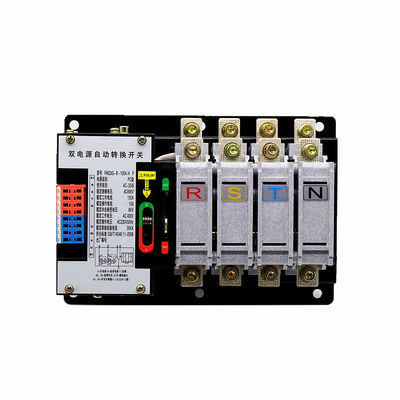

220V 100 Amp Dual Power Automatic Transfer Switch ATS
Product Details
| Max. Current: | 100A | Pole: | 2P 4P |
|---|---|---|---|
| Rated Voltage: | 1000V-1500V | Rated Current: | 63A 100A |
| Product Name: | Dual Power Automatic Transfer Switch ATS | Color: | White |
| Frequency: | AC 50 Hz/60Hz | Operation Type: | Manual Operation,Auto&Manual |
| Standard: | IEC60947-6-1 | Arc Extinguishing Method: | Magnetic Blower Circuit Breaker |
| Highlight |
220v dual power automatic transfer switch,220v 100 amp automatic transfer switch,dual power automatic transfer switch ATS |
||
Product Description
General
The system for FMQ3G ATS is designed to provide continuous power supply and two electrical souces automatic switch in case of failure or deviation from the set parameters.
The sysytem for dual power change-over switch consists of two high capacity circuit breakers mounted on a metal frame connected with common operating mechanism and controlled by a command devices that controls the system parameters correspondence.
| Rated operating voltage:690V.50/60Hz |
| Surge voltage wear resistance:8000V |
| Joining termainal:bolt connection with 4 bolts to the power supply rail |
| Connecting: |
| copper rails |
| flexible or rigid conductors |
| Electrical wear resistance(number of cyles):10000 |
| Mechanical wear resistance(number of cyles):20000 |
| IP code: IP21 |
| Mounting: |
| clamping with bolts |
| mounting position:vertical gradient-maximum 5o |
| Plastic material of the breakers of UV rays and non-flammable |
| Ambient temperature: -10oC+45oC |
| Installation altitude:up to 2000m |
Product Highlights
General The system for FMQ3G ATS is designed to provide continuous power supply and two electrical souces automatic switch in case of failure or deviation from the set parameters. The sysytem for dual power change-over switch consists of two high capacity circuit breakers mounted on a metal frame ...
