Single Phase ATS Automatic Transfer Switch PC Class 63a 50ms Changeover

Single Phase ATS Automatic Transfer Switch PC Class 63a 50ms Changeover

  • Single Phase ATS Automatic Transfer Switch PC Class 63a 50ms Changeover
  • Single Phase ATS Automatic Transfer Switch PC Class 63a 50ms Changeover
  • Single Phase ATS Automatic Transfer Switch PC Class 63a 50ms Changeover
  • Single Phase ATS Automatic Transfer Switch PC Class 63a 50ms Changeover
Single Phase ATS Automatic Transfer Switch PC Class 63a 50ms Changeover
Product Details:
Place of Origin: China
Brand Name: Fenigal/OEM
Certification: CE,CCC
Model Number: ATS AC CB Class
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiate
Packaging Details: Standard export carton
Delivery Time: 5-8 working days bulk order negotiate
Payment Terms: T/T, Western Union
Supply Ability: 10,000pcs/month
Contact Now
All Products
Lighting Distribution Box (32)
Electrical Distribution Box (31)
Weatherproof Distribution Box (28)
ATS Automatic Transfer Switch (52)
Solar PV System (20)
Electric EV Charging Station (8)
Modular Timing Relays (12)
Automation Control Relays (64)
Industrial Circuit Breaker (76)
Voltage Regulator Transformer (16)
Film Lighting Balloons (85)
Moon Balloon Light (59)
Tripod LED Balloons (46)
Inflatable Light Tower (26)
Terminal Block Accessories (6)
Fiberglass Enclosure Box (26)
Detailed Product Description
Product Name: Dual Power Automatic Transfer Switch ATS Max. Voltage: 690V
Control Power Supply Voltage: 400V, 380V, 220V, 480V Pole: 4P
Current: 400A Operation Type: Manual
Voltage: 63A Standard: IEC60947-6-1
High Light:

Single Phase ATS Automatic Changeover Switch

,

50ms ATS Automatic Changeover Switch

,

PC Class 63a Automatic Changeover Switch

Double Power Single Phase PC Class 63a Automatic 50ms Changeover Switch



newly developed miniature household power transfer switch, is mainly used to test whether the main power or reserve power is normal.used in rated voltage below 690V two power supply system. It can make a automatic transfer between the Normal Power and Reserve Power but without manual operation. This switch accords with the following terms of national GB/T14048.11



When the normal power supply is abnormal, the reserve power supply will start work immediately to ensure continuity, reliability and safety of the power supply. It is specially designed for household rail installation for PZ30 distribution box.



The ATS is suitable for emergency power supply systems of AC50 or 60Hz and rated voltage 400V. It is featured with firm structure, reliable transfer, easy installation and maintenance, and long life, is widely used in places where frequent power outage is not allowed. Both electric and operation and manual operation are available. The ATS is composed of TES and controller.



Technical data:



ITEM NO.
ATS-125
Rated current Ie(A)
16A, 20A, 25A, 32A, 40A, 50A, 63A,100A
Installation
Din rail
Rated insulation voltage Ui (V)
AC690, 50HZ
Rated working voltage Ue (V)
AC400, 50HZ
Rated impulse withstand voltage (KV )
8KV
Poles
2P 3P 4P
Weight (KG)
1.7 2.1 2.6
Connecting and breaking
6.0Ie 1.05Ue cosØ=0.50±0.05, 50 times
Operating performance
2.0Ie 1.05Ue cosØ=0.80±0.05, 6000 times
Rated limited short-circuit current Iq
50KA
SCPD (FUSES )
RT16-00-63A
Control circuit
Rated supply voltage Us: AC220V, 50HZ.
Working condition:85% Us~110% Us
Ancillary circuit
Two isolated relays, each relay with 2 groups of passive
switch contact. Contact capacity: AC220 50Hz, Ie=5A
Switching time
<50ms
Action time
<50ms

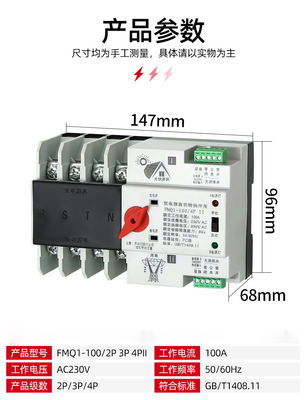

Single Phase ATS Automatic Transfer Switch PC Class 63a 50ms Changeover 0

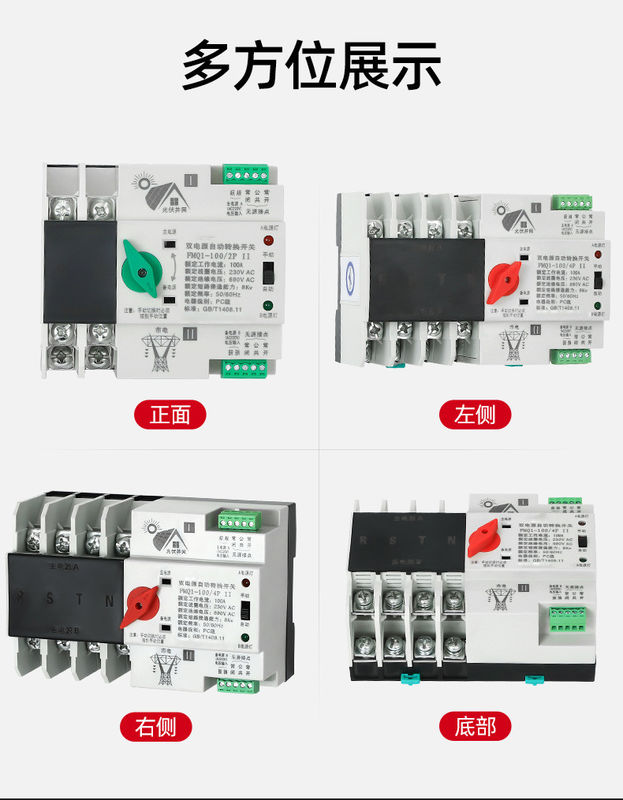

Single Phase ATS Automatic Transfer Switch PC Class 63a 50ms Changeover 1

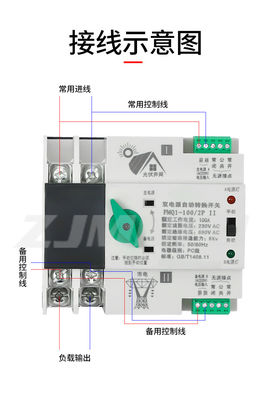

Single Phase ATS Automatic Transfer Switch PC Class 63a 50ms Changeover 2
