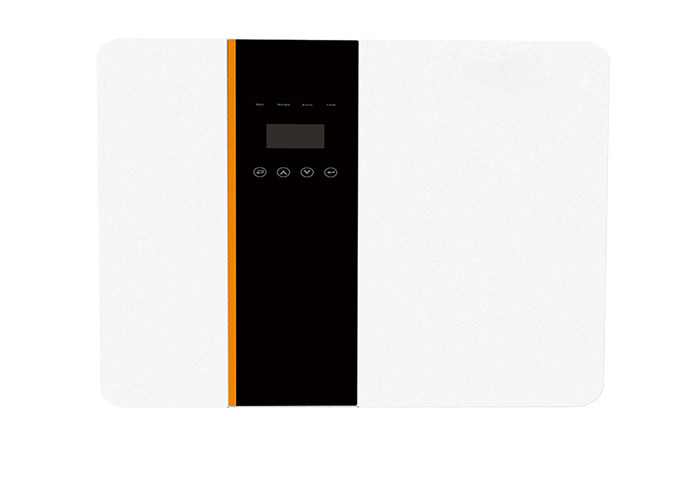

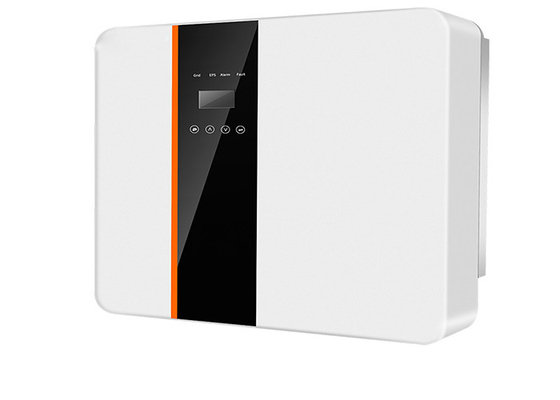

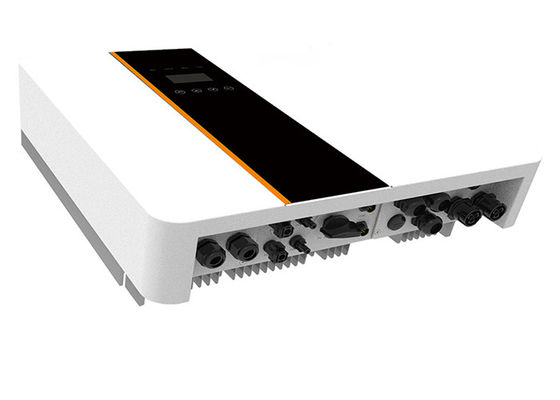

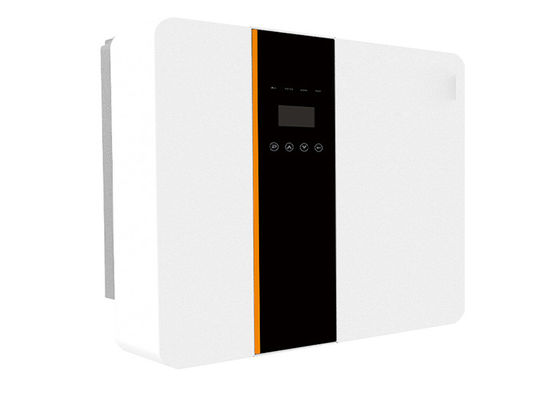

Single Phase Solar Hybrid Inverter 3 - 6KW 2 MPPT 60HZ

Single Phase Solar Hybrid Inverter 3 - 6KW 2 MPPT 60HZ

  • Single Phase Solar Hybrid Inverter 3 - 6KW 2 MPPT 60HZ
  • Single Phase Solar Hybrid Inverter 3 - 6KW 2 MPPT 60HZ
  • Single Phase Solar Hybrid Inverter 3 - 6KW 2 MPPT 60HZ
  • Single Phase Solar Hybrid Inverter 3 - 6KW 2 MPPT 60HZ
Single Phase Solar Hybrid Inverter 3 - 6KW 2 MPPT 60HZ
Product Details:
Place of Origin: China
Brand Name: Fenigal
Certification: ISO, CE
Model Number: 6000 watt PV Solar System
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiate
Packaging Details: Standard export carton
Delivery Time: 5-8 working days bulk order negotiate
Payment Terms: T/T, Western Union
Supply Ability: depend on quantity
Contact Now
Detailed Product Description
Product Name: 6000 Watt PV Solar System Solar Panel Type: Grade A Polycrystalline
Output Voltage (V): 230/400V Inverter: Growatt Off-grid Inverter
Panel Power: 10000W Output Frequency: 50/60HZ
Load Power (W): 10kw Solar Panel Max Power Voltage: 47.13V
Solar Module Efficiency: Mono Panel Upto 22%, Poly Panel Upto 19%
High Light:

Single Phase Solar Hybrid Inverter

,

6KW Solar Hybrid Inverter

,

60HZ Single Phase Hybrid Inverter

Single Phase Hybrid Inverter 3-6KW 2 MPPT
FNE single phase hybrid solar Inverter series can convert solar energy to AC energy and store energy into battery. Worked with 48V battery both lead-acid and lithium type, the PV hybrid inverter has multiple application modes such as self-consume, peak shaving and valley filling, and backup power supply. The operating mode of hybrid inverter solar system depends on photovoltaic energy and user preferences. In addition, It supports parallel connection of multiple machines and is suitable for Hybrid energy storage solar system.

Flexible configuration


Support multi-parallel connection
Support flexible access of diesel generator
Compatible with lead-acid and lithium-ion battery


Safe and reliable


Passed IEC/EN62109-1/-2, IEC/EN62477-1, South Africa NRS097-2-1:2017, IEC/EN 61000-6-1, IEC/EN 61000-6-3 test certification
Battery reverse connection protection, anti-power control function;


Convenient operation and maintenance


Support intelligent EMS management function
Support on/off-grid automatic switching function to ensure
uninterrupted power when important loads are off-grid

Advanced

Home smart energy management system
Support full power discharge, automatic management of battery charge and discharge
Equipped with CAN port, RS485 port, RS232 port for remote control, x1 DRM port, which makes the system smart and flexible

Benefits

Higher yields, reduce electricity costs by 50% per year
● Free energy available at night
● Participate in peak load shifting to gain additional economic benefits
● keeping critical load operation in power off
● Support 7*24 remote service



Single Phase Solar Hybrid Inverter 3 - 6KW 2 MPPT 60HZ 0

Application
Solar Villa
● Telecom Base Station
● Solar Plus Storage
● Solar Farm
● Residential Rooftop
● Field Power Supply



Model FNE3K-D1 FNE3.6K-D1 FNE4K-D1 FNE4.6K-D1 FNE5K-D1 FNE6K-D1
Input (PV)
Max. input power(kW) 4600W 6000W 7000W
Max. DC voltage(V) 550V
MPPT voltage range(V) 125V-500V
Max.input current of single MPPT(A) 14A
MPPT tracker/strings 2/1
AC output
Rated output power(kVA) 3000VA 3600VA 4000VA 4600VA 5000VA 6000VA
Max. output current(A) 13A 16A 17.4A 20A 21.7A 26A
Grid voltage/range(V) 230Vac /176Vac~270Vac
Frequency (Hz) 50 /60Hz
PF 0.8lagging-0.8leading
THDI <3%
AC output topology L+N+PE
Battery
Battery voltage range(V) 40~58V
Max. charging voltage(V) 58V
Max. charge/discharge current(A) 95A/62.2A 95A/75A 95A/83.3A 95A/95.8A 95A/104.2A 95A/110A
Battery type lithium /Lead-acid
Communication interface CAN/RS485
EPS output
Rated power (VA) 3000VA 3600VA 4000VA 4600VA 5000VA 6000VA
Rated output voltage(V) 230Vac
Rated output current(A) 13A 16A 17.4A 20A 21.7A 26A
Rated frequency (Hz) 50 /60Hz
Automatic switching time (ms) <20ms
THDU <2%
Overload capacity 110%, 30S/120%, 10S/150%, 0.02S
General data
Battery chage/dischage efficiency 95.0%
DC Max. efficiency 97.6%
Europe efficiency 97.0%
MPPT efficiency 99.9%
Ingress protection IP65
Noise emission (dB) <35dB
Operation temperature -25~+60℃
Cooling Natural
Relative humidity 0 ~95%(non-condensing)
Altitude 2,000m(>2,000 Derating)
Dimensions W*D*H (mm) 550/200/515mm
Weight (kg) 25kg
Isolation transformer
Self-consumption(W) <3W
Display and communication
Display LCD
Interface:RS485/Wifi/4G/
CAN/DRM
Yes/ Opt/ Opt/ Yes/ Yes
Safety standard IEC/EN62109-1/-2, IEC/EN62477-1
EMC IEC/EN 61000-6-1, IEC/EN 61000-6-3
On-grid South Africa NRS097-2-1:2017, UK G98,G99



Single Phase Solar Hybrid Inverter 3 - 6KW 2 MPPT 60HZ 1
