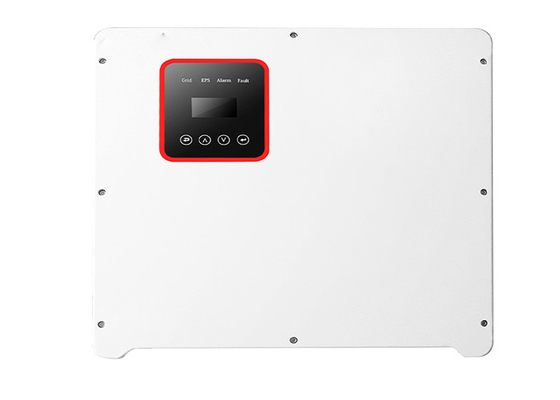

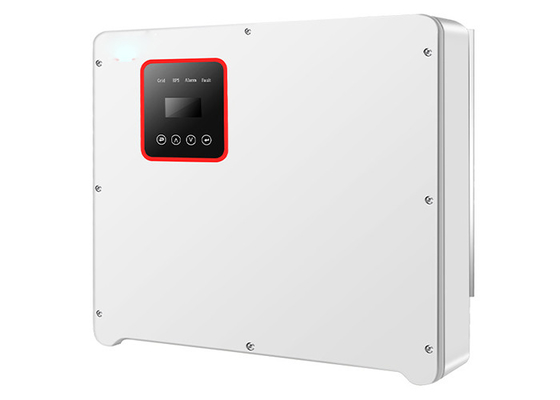

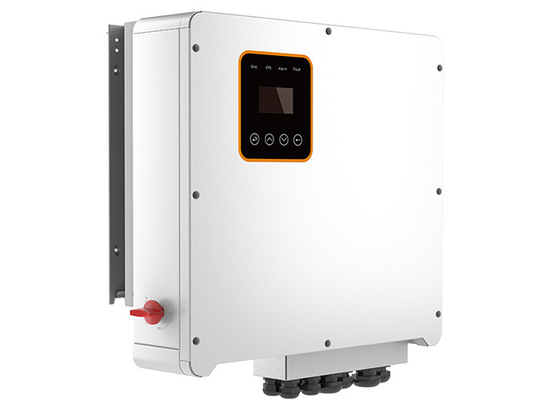

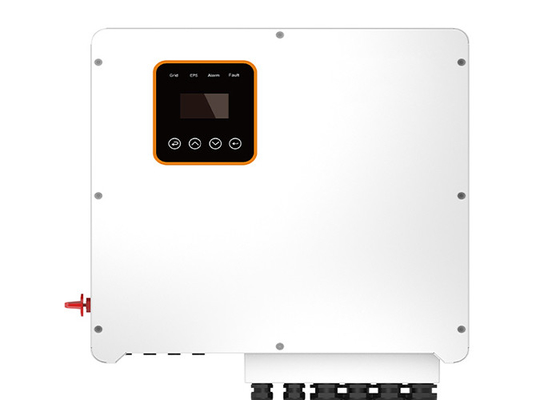

2 MPPT Single Phase Hybrid Inverter 8 - 12KW Growatt Off Grid

2 MPPT Single Phase Hybrid Inverter 8 - 12KW Growatt Off Grid

  • 2 MPPT Single Phase Hybrid Inverter 8 - 12KW Growatt Off Grid
  • 2 MPPT Single Phase Hybrid Inverter 8 - 12KW Growatt Off Grid
  • 2 MPPT Single Phase Hybrid Inverter 8 - 12KW Growatt Off Grid
  • 2 MPPT Single Phase Hybrid Inverter 8 - 12KW Growatt Off Grid
2 MPPT Single Phase Hybrid Inverter 8 - 12KW Growatt Off Grid
Product Details:
Place of Origin: China
Brand Name: Fenigal
Certification: ISO, CE
Model Number: 6000 watt PV Solar System
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiate
Packaging Details: Standard export carton
Delivery Time: 5-8 working days bulk order negotiate
Payment Terms: T/T, Western Union
Supply Ability: depend on quantity
Contact Now
Detailed Product Description
Product Name: 6000 Watt PV Solar System Solar Panel Type: Grade A Polycrystalline
Output Voltage (V): 230/400V Inverter: Growatt Off-grid Inverter
Panel Power: 10000W Output Frequency: 50/60HZ
Load Power (W): 12kw Solar Panel Max Power Voltage: 47.13V
Solar Module Efficiency: Mono Panel Upto 22%, Poly Panel Upto 19%
High Light:

2 MPPT Single Phase Hybrid Inverter

,

Single Phase 12KW Hybrid Inverter

,

2 MPPT Single Phase Hybrid Inverter

2 MPPT Single Phase Hybrid Inverter 8-12KW
FNE single phase hybrid solar Inverter series can convert solar energy to AC energy and store energy into battery. Worked with 48V battery both lead-acid and lithium type, the PV hybrid inverter has multiple application modes such as self-consume, peak shaving and valley filling, and backup power supply. The operating mode of hybrid inverter solar system depends on photovoltaic energy and user preferences. In addition, It supports parallel connection of multiple machines and is suitable for Hybrid energy storage solar system.

Flexible configuration


Support PV, diesel generator, battery, load at the same time access, also has strong adaptability, support black start
Compatible with lead acid and lithium batteries and other battery type
Various working modes can be set flexibly

Safe and reliable


Passed IEC/EN 62109-1/-2, IEC/EN 62477-1, IEC/EN 61000-6-1/-6-3, European grid connection: EN50549-1, German grid connection: VDE4105/0124 , UK grid connection: G99, South Africa: NRS097-2-1:2017 test certification
Battery reverse connection protection, anti-power control function;


Abundant configuration


It is more economical to support multiple operating modes
Can be as a UPS for the important loads when power off.

Advanced

Home smart energy management system of PV Hybrid Inverter
Support full power discharge, automatic management of battery charge and discharge
Equipped with CAN port, RS485 port, RS232 port for remote control, DRM port, which makes the system smart and flexible
Benefits
● Higher yields, reduce electricity costs by 50% per year
● Free energy available at night
● Participate in peak load shifting to gain additional economic benefits
● keeping critical load operation in power off
● Support 7*24 remote service



2 MPPT Single Phase Hybrid Inverter 8 - 12KW Growatt Off Grid 0

Datasheet SNE8K-G3 SNE10K-G3 SNE12K-G3
DC Input
Max. power(kW) 12KW 15KW 18KW
Max. DC voltage(V) 1000V
MPPT voltage range(V) 180V-850V
Max.input current of single MPPT(A) 13A
MPPT tracker/strings 2/1
AC Output
Rated output power(kVA) 8KVA 10KVA 12KVA
Max. output current(A) 12.7A 15.9A 19.1A
Grid voltage/range(V) 400V /360V~440V
Frequency (Hz) 50 /60Hz
PF 1(0.8lagging-0.8leading)
THDI <3%
AC output topology 3W+N+PE
Battery
Battery voltage range(V) 125V~600V
Max. charging voltage(V) 600V
Full battery voltage(V) 250 300 350
Rated charge/discharge current(A) 40A 40A 40A
Battery type lithium /Lead-acid
Communication interface CAN/RS485
EPS Output
Rated power (kVA) 8.8KVA 11KVA 13.2KVA
Rated output voltage(V) 400Vac
Rated output current(A) 12.7A 15.9A 19.1A
Rated frequency (Hz) 50Hz /60Hz
Automatic switching time (ms) <20ms
THDU <2%
Overload capacity 110%, 30S/120%, 10S/150%, 0.02S
General Data
Battery Chage/Dischage 96.6% 96.7% 96.80%
DC Max. Efficiency 97.9% 98.2% 98.2%
Euro Efficiency 97.2% 97.5% 97.5%
MPPT Efficiency 99.5% 99.5% 99.5%
Protection class IP65
Noise Emission (Typical) <35dB
Operation Temperature -25~+60℃
Cooling Natural
Relative Humidity 0 ~95% (non-condensing)
Altitude 2000m(>2,000 Derating)
Dimensions (W/D/H) mm 530*200*600
Weight(kg 29kg
Inverter Topology transformerless
Self-Consumption <3W
Display and communication
Display LCD
Interface:RS485/Wifi/LAN
/CAN/DRM
yes /opt/opt
/yes/yes
Safety standard IEC/EN62109-1/-2, IEC/EN62477-1
EMC IEC/EN 61000-6-1, IEC/EN 61000-6-3
On-grid Europe:EN50549-1, Germany:VDE4105/0124,UK:G99,South Africa:NRS097-2-1:2017
Application
Solar Villa
● Telecom Base Station
● Solar Plus Storage
● Solar Farm
● Residential Rooftop
● Field Power Supply

2 MPPT Single Phase Hybrid Inverter 8 - 12KW Growatt Off Grid 1
