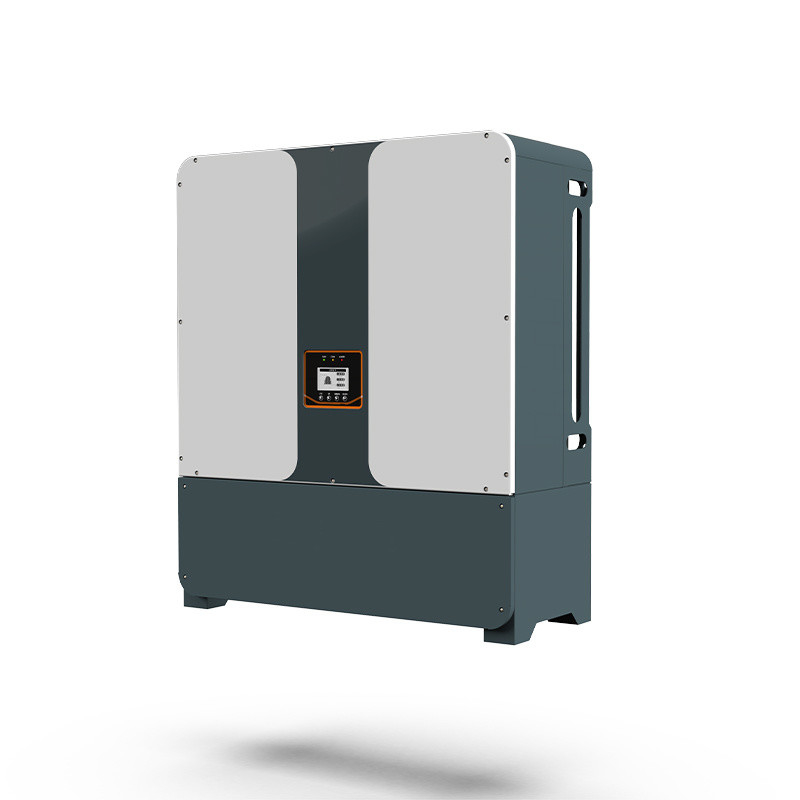

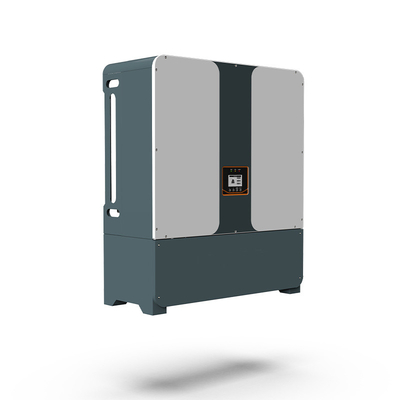

Three Phase Hybrid Inverter 20KW 2 MPPT 20KW

Three Phase Hybrid Inverter 20KW 2 MPPT 20KW

  • Three Phase Hybrid Inverter 20KW 2 MPPT 20KW
  • Three Phase Hybrid Inverter 20KW 2 MPPT 20KW
Three Phase Hybrid Inverter 20KW 2 MPPT 20KW
Product Details:
Place of Origin: China
Brand Name: Fenigal
Certification: ISO, CE
Model Number: 6000 watt PV Solar System
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiate
Packaging Details: Standard export carton
Delivery Time: 5-8 working days bulk order negotiate
Payment Terms: T/T, Western Union
Supply Ability: depend on quantity
Contact Now
All Products
Lighting Distribution Box (32)
Electrical Distribution Box (31)
Weatherproof Distribution Box (29)
Fiberglass Enclosure Box (26)
ATS Automatic Transfer Switch (53)
Industrial Circuit Breaker (78)
Solar PV System (32)
Electric EV Charging Station (8)
Modular Timing Relays (12)
Automation Control Relays (64)
Voltage Regulator Transformer (16)
Film Lighting Balloons (92)
Moon Balloon Light (108)
Tripod LED Balloons (54)
Inflatable Light Tower (26)
Terminal Block Accessories (6)
Detailed Product Description
Product Name: 6000 Watt PV Solar System Solar Panel Type: Grade A Polycrystalline
Output Voltage (V): 230/400V Inverter: Growatt Off-grid Inverter
Panel Power: 10000W Output Frequency: 50/60HZ
Load Power (W): 20KW Solar Panel Max Power Voltage: 47.13V
Solar Module Efficiency: Mono Panel Upto 22%, Poly Panel Upto 19%

Three Phase Hybrid Inverter 20KW 2 MPPT 20KW

FNE single phase hybrid solar Inverter series can convert solar energy to AC energy and store energy into battery. Worked with 48V battery both lead-acid and lithium type, the PV hybrid inverter has multiple application modes such as self-consume, peak shaving and valley filling, and backup power supply. The operating mode of hybrid inverter solar system depends on photovoltaic energy and user preferences. In addition, It supports parallel connection of multiple machines and is suitable for Hybrid energy storage solar system.



Product Features



Flexible configuration

Integrate PV and storage system modem
Support full power discharge, automatic management of battery charge and discharge
Wide PV and battery voltage input range

Safe and reliable

Passed IEC62109-1/-2, EN61000-6-1/-2/-3, IEC61000, AS4777.2,South Africa:NRS097-2-1:2017 certification
IP65 protection, aluminum housing, built-in lightning protection, high-precision leakage protection.


Abundant configuration

It is more economical to support multiple operating modes
Can be as a UPS for the important loads when power off
Support intelligent EMS management function
Support on/off-grid automatic switching function to ensure uninterrupted power when important loads are off-grid
Support three-phase imbalance
Advanced
Home smart energy management system
Support full power discharge, automatic management of battery charge and discharge
Equipped with CAN port, RS485 port, RS232 port for remote control, DRM port, which makes the system smart and flexible
Benefits
● Higher yields, reduce electricity costs by 50% per year
● Free energy available at night
● Participate in peak load shifting to gain additional economic benefits
● keeping critical load operation in power off
● Support 7*24 remote service



Three Phase Hybrid Inverter 20KW 2 MPPT 20KW 0

Datasheet SNE15K-G3 SNE17K-G3 SNE20K-G3
DC Input
Max. power(kW) 19.5KW 22.1KW 26KW
Max. DC voltage(V) 1000V
MPPT voltage range(V) 180V-950V
MPPT tracker/strings 2/2 2/2 2/2
Max.input current of single MPPT(A) 12.5A/23A 23A*2 23A*2
Short-circuit current of PV input(A) 15A/30A 30A/30A 30A/30A
AC Output
Rated output power(kW) 15KW 17KW 20KW
Max. Apparent AC power(KVA) 15KVA 17KVA 20KVA
Max. output current(A) 22A 25A 31A
Grid voltage/range(V) 380V, 3L+N+PE
Frequency (Hz) 50 /60Hz
PF 1(0.8lagging-0.8leading)
THDI <3%
Battery
Battery voltage range(V) 180V~700V
Max. input/output voltage(V) 700V
Rated charge/discharge current(A) 50A 50A 50A
Battery type lithium /Lead-acid
Communication interface CAN/RS485
EPS Output
Rated output power(kW) 15KW 17KW 20KW
Max. Apparent AC power(KVA) 15KVA 17KVA 20KVA
Rated output voltage(V) 380V, 3L+N+PE
Rated output current(A) 22A 25A 31A
Rated frequency (Hz) 50Hz /60Hz
Automatic switching time (ms) <10ms
THDU <3%
Overload capacity 110%, 30S/120%, 10S/150%, 0.02S
General Data
Euro Efficiency 98.2%
Protection class IP65
Noise Emission (Typical) <45dB
Operation Temperature -25～+60℃
Cooling Intelligent Fan
Relative Humidity 0 ~100% (non-condensing)
Altitude 4000m(>2,000 Derating)
Dimensions (W/D/H) mm 505*630*220mm
Weight(kg 23KG 24KG 24KG
Inverter Topology transformerless
Self-Consumption <3W
Display and communication
Display LCD
Interface:RS485/Wifi/GPRS/CAN yes /opt/opt/yes
Safety standard IEC62109-1/-2
EMC EN61000-6-1/-2/-3, IEC61000
On-grid AS4777.2,South Africa:NRS097-2-1:2017
Application
● Solar Villa
● Telecom Base Station
● Solar Plus Storage
● Solar Farm
● Residential Rooftop
● Field Power Supply

Three Phase Hybrid Inverter 20KW 2 MPPT 20KW 1
