Household Solar PV System High Voltage LiFePO4 Energy Storage Battery 25.6KWH
Product Details
| Product Name: | 6000 Watt PV Solar System | Solar Panel Type: | Grade A Polycrystalline |
|---|---|---|---|
| Output Voltage (V): | 230/400V | Inverter: | Growatt Off-grid Inverter |
| Panel Power: | 10000W | Output Frequency: | 50/60HZ |
| Load Power (W): | 6-12KW | Solar Panel Max Power Voltage: | 51.2V |
| Solar Module Efficiency: | Mono Panel Upto 22%, Poly Panel Upto 19% | ||
| Highlight |
Polycrystalline PV Solar Energy Storage System,LiFePO4 Solar Energy Storage System,Solar Storage System 25.6KWH |
||
Product Description

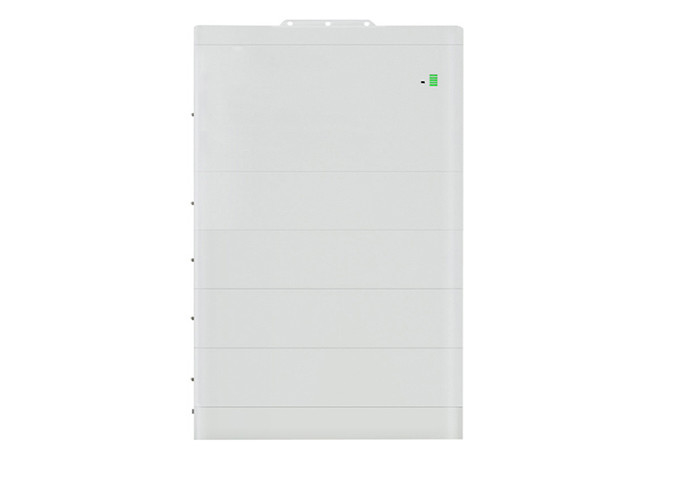

High Voltage Residential LiFePO4 Energy Storage Battery-BYD Cell 15.36KWH 20.48KWH
Fenigal high voltage lifepo4 bess battery cabinet with battery management system(BMS) , compatible with our three phase hybrid solar inverter 8KW/10KW/12KW for residential energy storage systems. Easy to install and dispatch, according the power storage needs and combine different batteries pack. With easy installation and a minimalist design, movable module lithium battery complements a variety of home styles. The battery capacity can be increased freely and flexibly according to the situation of home use. The battery cell uses the best safety LiFePO4 battery to save costs.
Flexible configuration
single module is 51.2V 50Ah
Stackable design and easy installation
Safe and reliable
More safety, longer life cycle
More Usable Energy life up to 10 years；
Applicable for residential
and commercial system applications；
Flexible Scalable from 12 to 24 KWH；
Optimization of high-powered emergency-backup
and off-grid function；
More Safety, Longer life Cycle
More Usable Energy life up to 10 years；
Applicable for residential and commercial system applications；
Flexible Scalable from 10 to 20 KWH;
Optimization of high-powered emergency-backup and off-grid function；
● BYD original battery PACK module
● BYD original BMS/BMU/BCMU
● BYD original structure design
● BYD original technical solutions
● BYD original sales record
| model | 307.2V 50 Ah | 409.6V 50 Ah | 512V 50 Ah |
| Performance | |||
| Battery type | Iithium-iron phosphate (LiFePO4) | ||
| Battery capacity(KWH) | 15.36KWH | 20.48KWH | 25.6KWH |
| Number of layers | 6 layers | 8 layers | 10 layers |
| Nominal Voltage(V) | 307.2V | 409.6V | 512V |
| Operating Voltage Range(V) | 259.2V～336.96V | 345.6～449.28V | 432V～561.6V |
| MAX. continuous charging current(A) | 50A | ||
| Recommend charge current(A) | 10~25A | ||
| Max.continue discharging current(A) | 50A | ||
| Peak current(A) | 100A | ||
| Depth of discharge(DOD) | 80% | ||
| Design life | 3500 times @80%DOD | ||
| Compatible hybrid inverters | SNE8K-G3/SNE10K-G3/SNE12K-G3 | ||
| Protection function | |||
| Protection | Over-temperature, over charge, under-voltage, over-current, short circuit alarm Function | ||
| Display and Communication | |||
| Display | The information of Battery, such as SOC, battery voltage and so on | ||
| Communication | CAN/RS485 | ||
| General Specification | |||
| Domension (L*W*H)(MM) | 600*210*1300MM | 600*210*1620MM | 600*210*1940MM |
| Weight(KG) | 182KG | 235KG | 288KG |
| Operating Temperature | -20℃-+55℃ | ||
| Max. operating altitude | 3,000m(Derating above 2,000m) | ||
| Protection degree | IP21, indoor installation | ||
| Relative humidity | 5%-95% | ||
| Cooling | Natural convection | ||
| Single module Technical Specification | |||
| Dimension (L*W*H)(MM) | High Voltage Box:600*210*250MM Battery Box:600*210*160MM |
||
| Battery module weight(KG) | 26.5kg | ||
