Three Phase Energy Storage System Three Phase 12KWH-30KWH

Three Phase Energy Storage System Three Phase 12KWH-30KWH

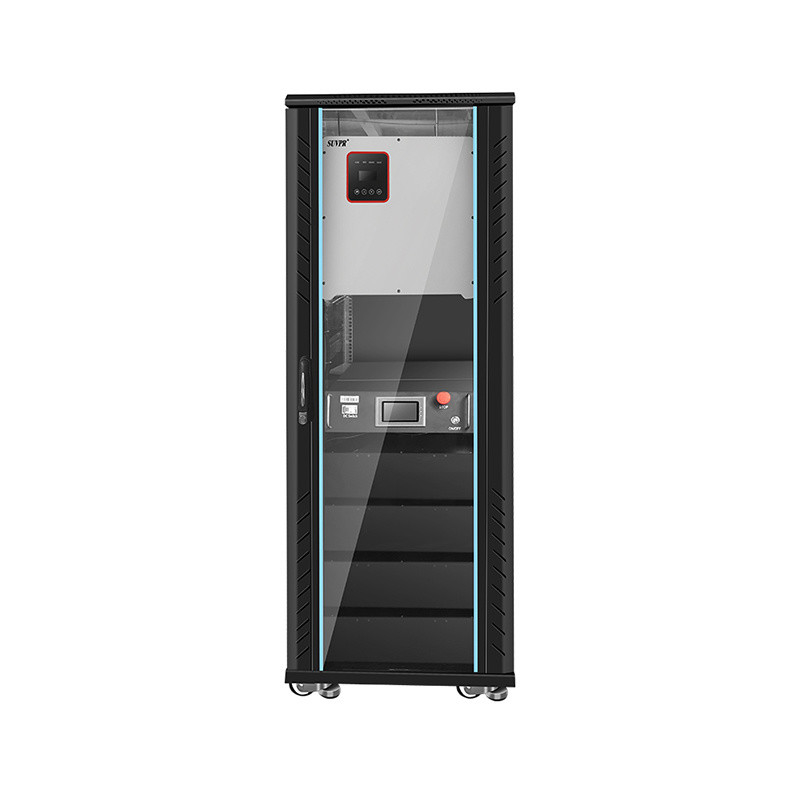

  • Three Phase Energy Storage System Three Phase 12KWH-30KWH

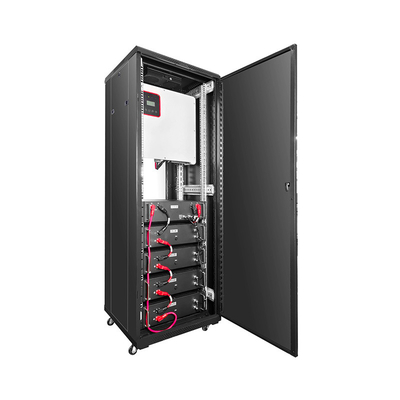

  • Three Phase Energy Storage System Three Phase 12KWH-30KWH

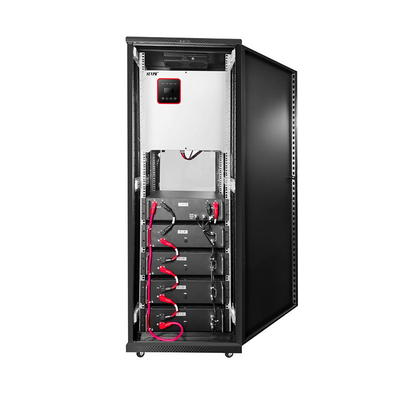

  • Three Phase Energy Storage System Three Phase 12KWH-30KWH
Three Phase Energy Storage System Three Phase 12KWH-30KWH
Product Details:
Place of Origin: China
Brand Name: Fenigal
Certification: ISO, CE
Model Number: 6000 watt PV Solar System
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiate
Packaging Details: Standard export carton
Delivery Time: 5-8 working days bulk order negotiate
Payment Terms: T/T, Western Union
Supply Ability: depend on quantity
Contact Now
All Products
Lighting Distribution Box (32)
Electrical Distribution Box (31)
Weatherproof Distribution Box (29)
Fiberglass Enclosure Box (26)
ATS Automatic Transfer Switch (53)
Industrial Circuit Breaker (78)
Solar PV System (32)
Electric EV Charging Station (8)
Modular Timing Relays (12)
Automation Control Relays (64)
Voltage Regulator Transformer (16)
Film Lighting Balloons (92)
Moon Balloon Light (108)
Tripod LED Balloons (54)
Inflatable Light Tower (26)
Terminal Block Accessories (6)
Detailed Product Description
Product Name: 6000 Watt PV Solar System Solar Panel Type: Grade A Polycrystalline
Output Voltage (V): 230/400V Inverter: Growatt Off-grid Inverter
Panel Power: 10000W Output Frequency: 50/60HZ
Load Power (W): 6-12KW Solar Panel Max Power Voltage: 47.13V
Solar Module Efficiency: Mono Panel Upto 22%, Poly Panel Upto 19%

Three Phase Energy Storage System Three Phase 12KWH-30KWH

Fenigal Indoor cabinet ESS compatible with three phase 8kw/10KW/12KW hybrid inverter, most 19-inch-rack-mounted battery and battery management system(BMS) for residential energy storage system application.

Product Features



Flexible configuration

Modular design, easy installation and operation
Support battery expansion

Safe and reliable

System cycle life ≥ 10 years
Support peak load shifting and important load backup



Advanced
Integrated BMS management system to support intelligent management
Compatible with CANbus/RS485 communication interface

Benefits
● Integrated design for easy installation
● Highly cost-effective
● Support mainstream hybrid inverters
● Capacity can be flexibly configured
● Support 7*24 remote service









Datasheet SNE8K-G3-A SNE10K-G3-A SNE12K-G3-A
DC Input
Max. power(kW) 12KW 15KW 18W
Max. DC voltage(V) 1000V
MPPT voltage range(V) 180V-850V
Max.input current of single MPPT(A) 13A
MPPT tracker/strings 2/1
AC Output
Rated output power(kVA) 8KVA 10KVA 12KVA
Max. output current(A) 12.7A 15.9A 19.1A
Grid voltage/range(V) 400V /360V~440V
Frequency (Hz) 50 /60Hz
PF 1(0.8lagging-0.8leading)
THDI <3%
AC output topology 3W+N+PE
EPS Output
Rated power (kVA) 8.8KVA 11KVA 13.2KVA
Rated output voltage(V) 400Vac
Rated output current(A) 12.7A 15.9A 19.1A
Rated frequency (Hz) 50Hz /60Hz
Automatic switching time (ms) <20ms
THDU <2%
Overload capacity 110%, 30S/120%, 10S/150%, 0.02S
Battery technical parameters
battery module Customizable
Battery capacity 12kWh~30.72kWh
MAX. parallel batteries 50Hz /60Hz
Service Life ＞10years(25℃/77F)
Rated charge/discharge current(A) 40A 40A 40A
Battery type lithium
Communication interface CAN/RS485
General Data
Euro Efficiency 97.2% 97.5% 97.5%
MPPT Efficiency 99.5% 99.5% 99.5%
Protection class IP20
Noise Emission (Typical) <60dB
Operation Temperature -10～+60℃
Cooling forced air cooling
Relative Humidity 15%~85%(non-condensing)
Altitude 2000m(>2,000 Derating)
Dimensions (W/D/H) mm 600*600*1610mm/600*600*1833mm
Weight(kg Customized
Inverter Topology transformerless
Self-Consumption <3W
Display and communication
Display LCD
Interface:RS485/Wifi/LAN
/CAN/DRM		 yes /opt/opt
/yes/yes
Safety standard IEC 62109-1&-2, IEC 62477, CE-EMC
Application
● Solar House
● Telecom Base Station
● Solar Plus Storage
● Farm
● Residential Rooftop
● Field Power Supply

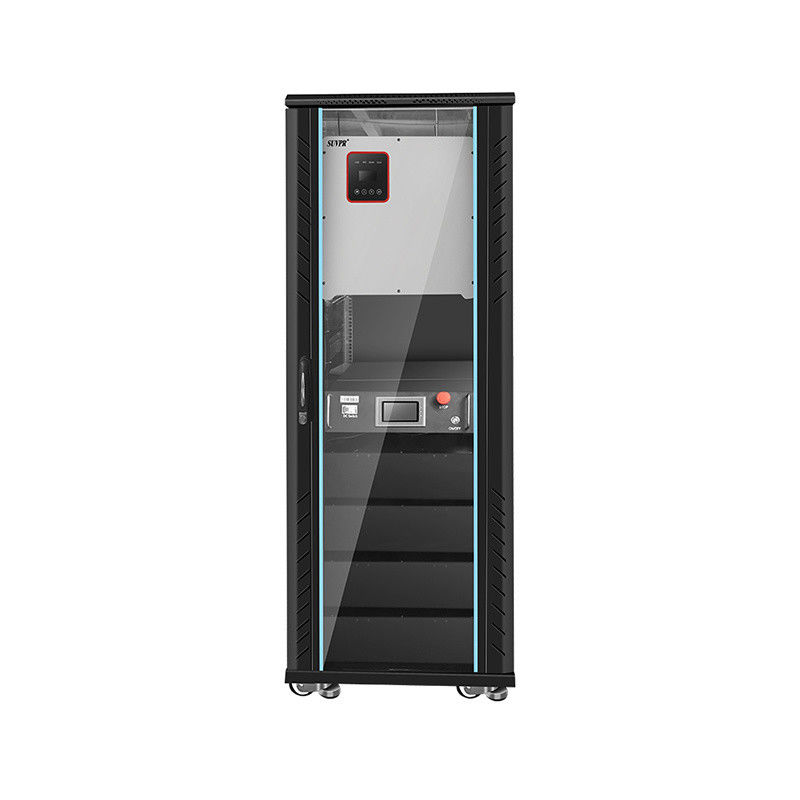

Three Phase Energy Storage System Three Phase 12KWH-30KWH 0
