| Place of Origin: | China |
| Brand Name: | Fenigal |
| Certification: | ISO, CE |
| Model Number: | 6000 watt PV Solar System |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Standard export carton |
| Delivery Time: | 5-8 working days bulk order negotiate |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | depend on quantity |
| Product Name: | 6000 Watt PV Solar System | Solar Panel Type: | Grade A Polycrystalline |
|---|---|---|---|
| Output Voltage (V): | 230/400V | Inverter: | Growatt Off-grid Inverter |
| Panel Power: | 10000W | Output Frequency: | 50/60HZ |
| Load Power (W): | 6-12KW | Solar Panel Max Power Voltage: | 47.13V |
| Solar Module Efficiency: | Mono Panel Upto 22%, Poly Panel Upto 19% | ||
| High Light: | LiFePO4 Battery Solar Offgrid PV System,Wall mounted 48V Solar PV System,5.12 KWH Solar PV System |
||

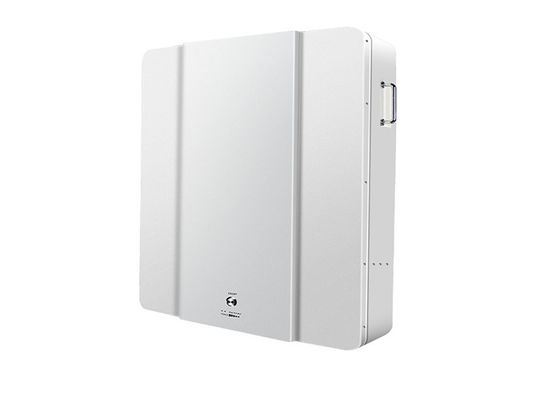

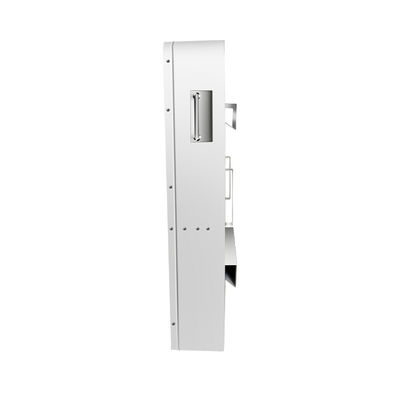

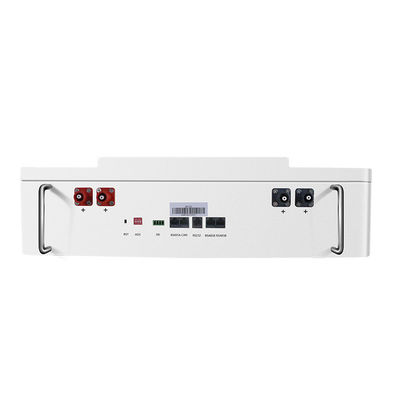

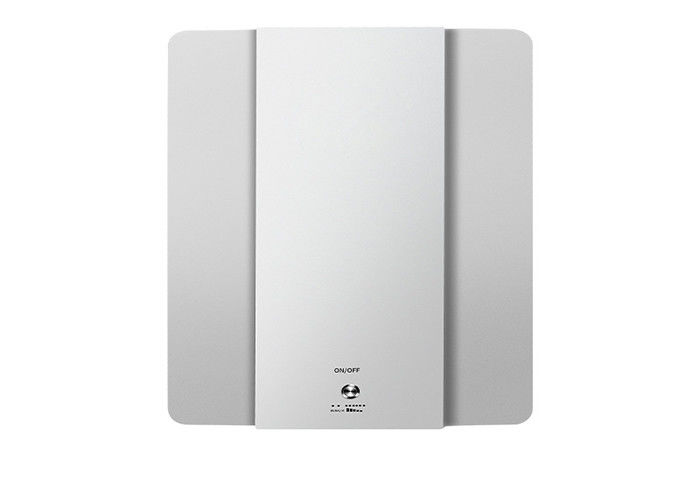

Fenigal high quality wall-mounted 48V 5KWH and 10KWH lifepo4 bess battery cabinet with battery management system(BMS) ,compatible with our single phase hybrid solar inverter 5KW/6KW, 8kw split phase hybrid inverter and 10KW hybrid inverter for residential energy storage projects. Easy to install and dispatch, and could be used in parallel.
Flexible configuration
Safe and reliable
Abundant configuration
| model | LFP4805 | LFP4810 |
| Performance | ||
| Battery capacity(KWH) | 5.12KWH | 10.24KWH |
| Battery type | Iithium-iron phosphate (LiFePO4) | |
| Nominal Voltage(V) | 51.2V | |
| Depth of discharge(DOD) | 80% | |
| Design life | ＞10years(25℃/77F) | |
| Charge limit voltage(V) | 57.6V | |
| Shipping voltage requirements(V) | 50V-53V | |
| Discharge cut-off voltage(V) | 43.2V | |
| Standard charging current(A) | 30A | 30A |
| Standard discharging current(A) | 30A | 30A |
| Max. charging current(A) | 100A | 100A |
| Max. discharging current(A) | 100A | 100A |
| Scalability | Max. 6 strings in parallel | |
| Compatible hybrid inverters | SNE5K-D1/SNE6K-D1/SNE8K-DA | |
| Protection function | ||
| Protection | Over-temperature, over charge, under-voltage, over-current, short circuit alarm Function | |
| Display and Communication | ||
| Display | LED indicatior | |
| Communication | CAN/RS485/RS232 | |
| General Specification | ||
| Domension(H*W*D) | 580*415*150MM | 680*485*200MM |
| Weight | 55KG | 92KG |
| Installation | Wall Mount | |
| Operating Temperature | -20℃-+60℃ | |
| Max. operating altitude | 4,000m(Derating above 2,000m) | |
| Protection degree | IP21, indoor installation | |
| Relative humidity | 5%-75% | |
| Cooling | Natural cooling | |
| Noise emission | ＜29db | |
| Certificate | CE, UN38.3 | |
