Class CB Transfer Switch For Automatic Change And Recovery With Overcurrent Release

Class CB Transfer Switch For Automatic Change And Recovery With Overcurrent Release

  • Class CB Transfer Switch For Automatic Change And Recovery With Overcurrent Release
  • Class CB Transfer Switch For Automatic Change And Recovery With Overcurrent Release
Class CB Transfer Switch For Automatic Change And Recovery With Overcurrent Release
Product Details:
Place of Origin: china
Brand Name: Fenigal
Certification: CE
Model Number: Fenigal
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Packaging Details: standard export packing
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union
Supply Ability: 60000 Unit/Units per Month
Contact Now
Detailed Product Description
Operation: -5~40℃ Storage And Transport: -25~55℃
Rated Operation Voltage (V): Ue AC50Hz Ultimate Breaking Capacity: Icu AC50Hz 220/240V
(kA Effective Value): 380/400V Electrical Endurance: AC50Hz 440V-In
Highlight:

Recovery Transfer Switch

,

Overcurrent Release Transfer Switch

,

Automatic Change Transfer Switch

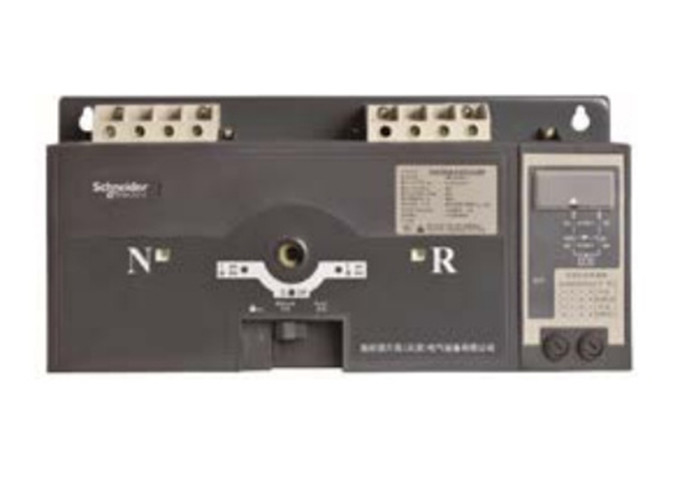

Class CB Transfer Switch for Automatic Change and Recovery with Overcurrent Release​ 1-63A





Class CB
ATSE with overcurrent release
Its main contact can be closed and used to break short-circuit current
WATSN series automatic transfer switch is a class CB automatic transfer switch if it
adopts a circuit breaker with overcurrent release as the actuator. With selective
protective function, it can provide short-circuit and overload protection for
downstream loads and cables. Its making and breaking capacity is significantly
higher than other components such as contactors and relays.

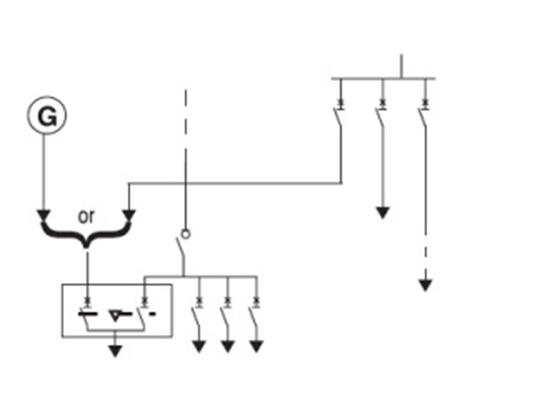

Class CB Transfer Switch For Automatic Change And Recovery With Overcurrent Release 0
Class CB Transfer Switch For Automatic Change And Recovery With Overcurrent Release 1

Wide application
● Used in AC220V and AC380V systems
● Three operation modes configurable on the site: automatic change and automatic
recovery, automatic change without automatic recovery, and mutual standby.
● Can be easily connected to a smart monitoring system
High-performance product
● High breaking capacity (class CB)
● Operation breaking capacity is equal to 100% of ultimate breaking capacity (class
CB)
● Provide high current-limiting capacity and total economic selectivity (class CB)
● Provide high short-circuit making capacity and rated short-time withstand capacity
(class PC)
Easy connection and installation
● No need to derate in both horizontal and vertical installation
● No need to derate for lower incoming lines
Higher reliability
● Alarm for wrong neutral connection
● Automatic signal cutoff in case of unsuccessful transfer
Smart communication
● RS485 communication interface and Modbus-RTU communication protocol
● Provide four remote functions including telecommand, telemetry, telecontrol, and
telereg
