SMC Polyester FRP Box 220/380V Power Distribution Box IP66 Waterproof Electrical Box
Product Details
| Fiberglass Content: | 70% Glass Fiber And 30% Resin | Tensile Strength: | 150 MPa |
|---|---|---|---|
| Insulation Resistancee: | 1000 MΩ | Flame Retardancy: | UL94 V-0 Rating |
| Operating Temperature Range: | -40°C To +80°C | Protect Level: | IP66 |
| UV Resistance: | Can Withstand Prolonged Exposure To Sunlight Without Significant Degradation | Moisture Resistance: | Impervious To Moisture Penetration |
| Mounting Options: | Wall Mountable With Four Mounting Holes Or Can Also Be Placed On A Flat Surface | Accessibility: | Hinged Door With A Key Lock |
| Door Opening Angle: | 120 Degrees | ||
| Highlight |
IP66 Waterproof Electrical Box,SMC Polyester Electrical Box,220/380V Power Distribution Box |
||
Product Description
Benefits for You:
- SMC composite material offers numerous advantages, including high mechanical strength, lightweight nature, long service life, high insulation strength, and flame retardancy.
- The SMC outdoor cable junction box is fully insulated.
- SMC outdoor cable distribution box is made of SMC composite material. It is easy to install and transport, with a beautiful appearance that beautifies the city environment.
- Anti-rust: Rain-proof and suitable for various adverse weather conditions and different acid and alkali soils.
- Anti-theft: Features advanced composite materials and a sophisticated structural design.
- Rainproof: With a reasonable structure and European rubber sealing strips, rainwater is kept out.
- Anti-leakage: The insulated box body eliminates the risk of leakage or electric shock in any weather. Even in densely populated areas, where children play and on narrow streets, it reflects respect for life.
- Impact resistance: The product has strong impact resistance, protects against external force damage, prevents electricity theft, and does not deform.
- Full specifications: Suitable for precision processing with a complete range of specifications that can be expanded.
- Easy to install: Lightweight for easy transportation and featuring a flexible structure. All components are plate products, making installation and replacement easier than current production.
- Recyclable.
Technical Parameters and Advantages:
- The glass fiber reinforced polyester material box resolves issues of rust, leakage, and roughness found in metal boxes.
- Easy to install for both indoor and outdoor use.
- The cabinet is equipped with a door lock, reliable and able to meet diverse power station needs.
- The whole box has an attractive appearance and is highly sturdy.
- Uniform color and height, integrated design for easy construction and operation.
- An ideal product for the power system to meet the "healthy" standard.
Order Description:
- Before placing an order, confirm whether the material of the waterproof box (SMC) is flame-retardant or if there are any specific requirements. If you need to change the color of the waterproof box, book in advance.
- If you need to open holes for cable entry and exit, provide the hole drawing. If you require waterproof connectors or other accessories such as wiring terminals, confirm with the salesperson.
| Polyester box(fiber glass box) | inner door | Polyester mounting plate | Steel mounting plate | ||||||||||||||
| Model | Dimension(mm) | Model | Dimension(mm) | Model | Dimension(mm) | Model | Dimension(mm) | ||||||||||
| Grey door | Clear door | W | H | D | lnner door | A | B | M | N | C | E | ||||||

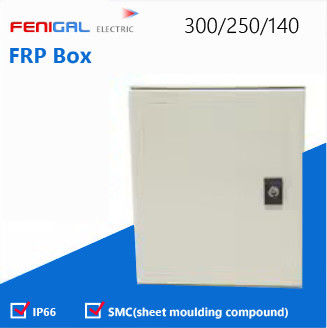

| SMC-302514 | SMT-302514 | 250 | 300 | 140 | PM-325 | 221 | 238 | SM-325 | 263 | 201 | |||||||

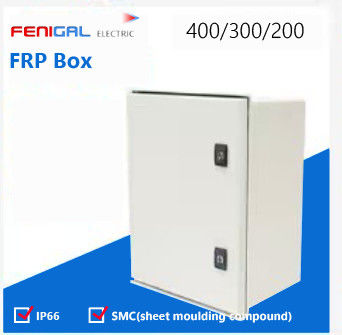

| SMC-403020 | SMT-403020 | 300 | 400 | 200 | ID-43 | 364 | 245 | PM-43 | 311 | 286 | SM-43 | 353 | 245 | ||||

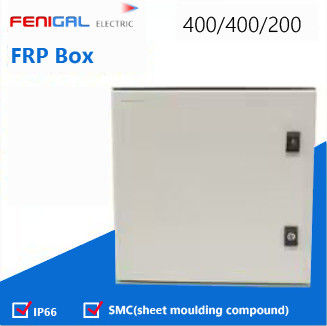

| SMC-404020 |
SMT- 404020 |
400 | 400 | 200 | ID-44 | 364 | 345 | PM-44 | 308 | 356 | SM-44 | 349 | 345 | ||||

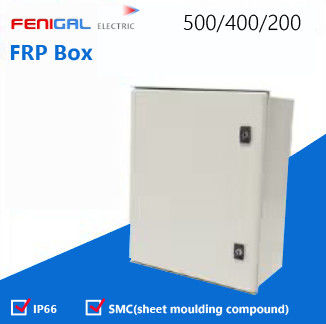

| SMC-504020 |
SMT- 504020 |
400 | 500 | 200 | ID-54 | 464 | 345 | PM-54 | 408 | 386 | SM-54 | 453 | 345 | ||||

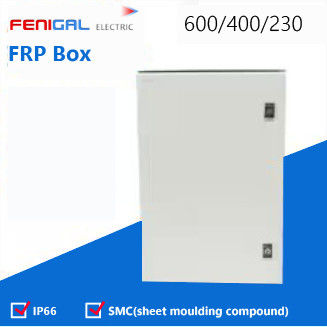

| SMC-604023 |
SMT-604023
|
400 | 600 | 230 | ID-64 | 564 | 345 | PM-64 | 511 | 386 | SM-64 | 553 | 345 | ||||

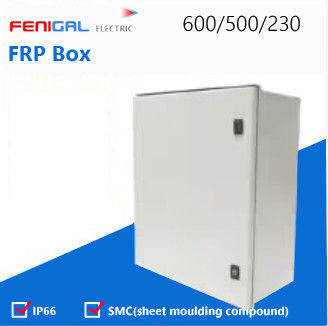

| SMC-605023 | SMT-605023 | 500 | 600 | 230 | ID-65 | 564 | 445 | PM-65 | 508 | 486 | SM-65 | 553 | 447 | ||||

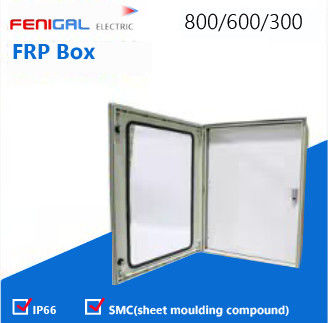

| SMC-806030 | SMT-806030 | 600 | 800 | 300 | ID-86 | 764 | 545 | PM-86 | 706 | 581 | SM-86 | 749 | 540 | ||||
The following are the models of our SMC box
