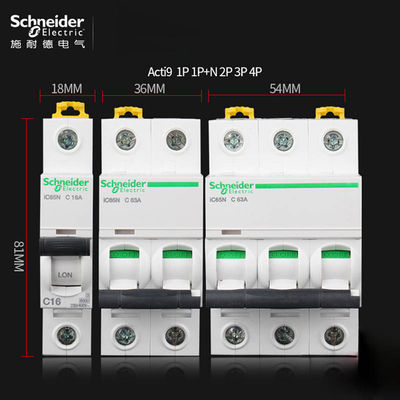

Acti9 MCB Schneider Electric Miniature Circuit Breaker 6~63A, 1P,2P,3P,4P,DPN for electrical distribution
Product Details
| Model: | Acti9 IC65, IDPN | Pole(s): | 1,2,3,4, DPN/1P+N |
|---|---|---|---|
| Volt: | 220~240VAC, 380~400VAC | Hz: | 50~60Hz |
| Phase: | 1/3 | Standard: | EN/IEC60898 |
| Certification: | CCC, CE, GS Etc. | Breaking Capacity: | Ics=Icn=6000A |
| Thermal Trip Curve: | B,C,D | Case Material: | Nylon 66 Recylable |
| Wiring: | Terminal Block, Busbar Duct Etc. IP20B | Electric Shock Protection: | Class II |
| Mechanical Life: | 20,000 | Electrical Life: | 10,000 |
| Highlight |
molded case circuit breaker,electric circuit breaker |
||
Product Description
Acti9 iC65 Schneider Electric Original Made In China Miniature Circuit Breakers up to 63 A
Specification

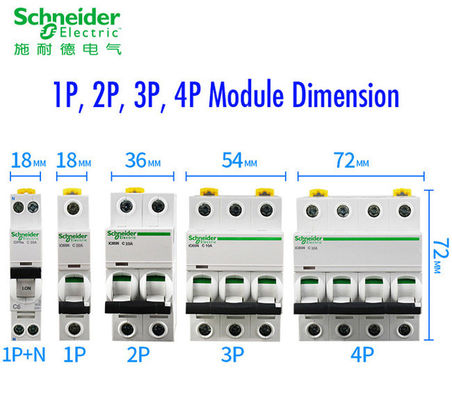

| Pole | Voltage | Rated In | Function | Module | Standard | Certification |
| 1P MCB | 230/400VAC | 6~63A | 1 | |||
| 2P MCB | 6~63A | 2 | ||||
| 3P MCB | 10~63A | 3 | IEC/EN | |||
| 4P MCB | 10~63A | Short circuit | 4 | 60898 | CE | |

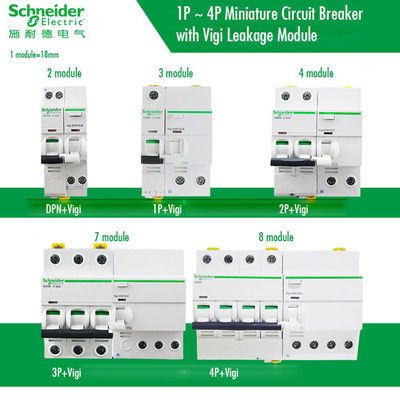

| 1P MCB+Vigi | 6~63A | Overload | 3 | CCC | ||
| DPN MCB+Vigi | 6~40A | Protection | 2 | GB | CCS | |
| 2P MCB+Vigi | 10~63A | Isolation | 4 | 10963.1 | ||
| 3P MCB+Vigi | 10~63A | 7 | ||||
| 4P MCB+Vigi | 10~63A | 8 |
Giving you absolute peace of mind when it comes to circuit protection and continuity of service, the miniature circuit breakers are especially ideal if you are working within polluted environments and networks
Features
With exclusive features, the Acti9 iC65 DIN rail miniature circuit breakers have been specifically designed to provide first-rate protection and continuity of service.
- VisiSafe: provides protection during maintenance work on downstream circuits
- VisiTrip: signals with a redflag the faulty miniature circuit breaker outgoers to reduce intervention time
- Class-2 insulation: double insulation distance to ensure continuous protection for both operators and unqualified persons
- Pollution Class 3 for operation in more polluted environments such as some industrial applications
- Fully compliant with standards IEC/EN 60898-1 and IEC/EN 60947-2
- Add-on fully immune Acti9 iC65 Vigi earth leakage protection devices: improved continuity of service, especially in polluted environments and networks
- Offers a wide range of electrical auxiliaries: remote indication of Acti9 iC65 status and several tripping actuators: shunt trip, undervoltage trip, overvoltage trip.
Acti9 iC65 MCBs belong to Acti 9 complete electrical system providing protection, monitoring and control of your electrical installation.
- Full system and electrical compatibility with the Acti9 range and with compact NSX molded case circuit breakers (MCCBs)
- Acti 9 iC65 miniature circuit breakers are divided in three ranges Acti9 iC65N, iC65H and iC65L to cover your electrical requirements:
•Nominal current: 1 to 63 A
•Large choice of breaking capacities— up to 100 kA— and tripping curves: B, C, D, K, Z and MA - Suitable for isolation in compliance with industrial standard IEC 60947
- Operating voltage: up to 440 V AC, insulation voltage: 500 V.
Benefits
Complete with VisiSafe and VisiTrip, Acti9 iC65 miniature circuit breakers expertly combine reliability, protection and ease of use.
- Set a new benchmark in final distribution circuit breakers
- Enhanced security when it comes to circuit protection thanks to VisiSafe
- Provide greater continuity of service thanks to VisiTrip
- Come with easily identifiable part numbers, making Acti9 iC65 miniature circuit breakers simple to order and use
- Easy installation with quick and ergonomic IP20B terminal shutters
- Highly durable with robust connections that provide twice the standard tightening torque
- Environmentally friendly with 100% recyclable and recoverable materials.
Applications
Providing essential protection in industrial and commercial buildings, our miniature circuit breakers work especially well in polluted environments and networks.
- For the enhanced protection of electrical circuits in all types of industrial and commercial buildings
- Suitable for all settings, particularly polluted environments and networks
- Motor circuit protection
- DC current circuit protection.
