Pragma C Lighting Distribution Box Electric Plastic Terminal 8 12 16 20 24 36 Ways
Product Details
| Material: | Self-extinguishable Or UV Material Are On Request.,ABS&Iron | Color: | White,RAL 7035 |
|---|---|---|---|
| Application: | To Protect Circuit Breakers Installed In The Panel Box,Indoor Or Outdoor | Type: | Distribution Box,Surface/Flush Type,waterproof Box/control Box/distribution Box/junction Box/switch Box |
| Protection Level: | IP30/IP32/IP40/IP65/IP66 | Rated Voltage: | 120V/240V,100 - 240 V |
| Standard: | IEC60439-3,IEC/GB | ||
| Highlight |
power distribution box,electrical db box |
||
Product Description

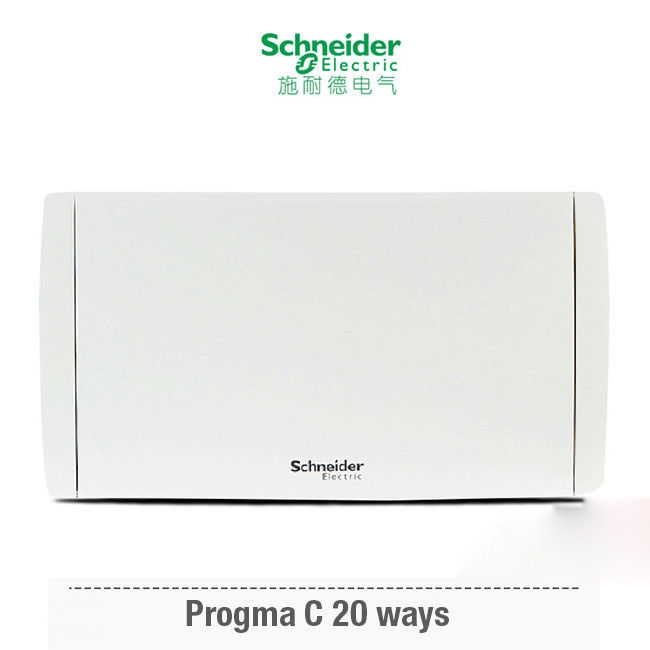

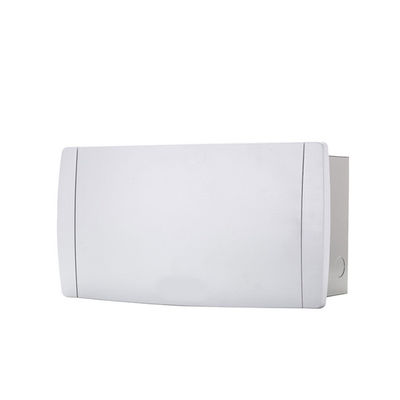

Pragma C Schneider Electric Plastic Terminal Lighting Distribution Box 8,12,16,20,24,36 ways
Pragma C
Terminal Distribution Box
Surface and Flush Plastic enclosures
Applications
The appearance of this enclosure, its mechanical strength and its level of electrical safety make it a product fully suitable for residential and small commercial needs.
|
range |
Pragma C |
|---|---|
|
product or component type |
Enclosure |
|
enclosure type |
Distribution enclosure |
|
width |
Actual mm |
|
height |
Actual mm |
|
depth |
Actual mm |
|
Nb of 18 mm modules per row |
8,12,16,20 |
|
Nb of horizontal rows |
1,2,3 |
|
electrical insulation class |
Class II |
|
provided equipment |
Marking kit ( 1 ) |
|
Type of door |
Customizable |
|
enclosure mounting |
Surface/Flush mount |
|---|---|
|
9 mm pitches |
48 |
|
total number of 18 mm modules |
72 |
|
power dissipation in W |
76 W |
|
[In] rated current |
160 A |
|
type of rail |
Multifix |
|
cable entry |
Cable or tube |
|
enclosure material |
Back part : technoplastic |
|
colour |
Enclosure : white ( RAL 9016 ) |
|
targeted country |
Italy |
|
fire resistance |
Back part : 650 °C conforming to IEC 60695-2-1 |
|---|---|
|
IP degree of protection |
IP30 without door conforming to EN/IEC 60529 |
|
IK degree of protection |
IK08 without door conforming to EN/IEC 62262 |
|
overvoltage category |
II |
|
ambient air temperature for operation |
-25...60 °C |
|
standards |
IEC 60670-24 |
Installations
Part of Pragma Series
Pragma C enclosures are designed for installing modular devices in residential and small building, light commercial environments. They are used indoors and are available in
Single row - 8, 12, 16, 20 of 18 mm
Double row – 24, 36 modules of 18 mm.
Features
Pragma C are distribution enclosures for flush and surface mounting.
This range of indoor plastic enclosure with 1 to 3 rows, is designed for the execution of sub-distribution switchboards for residential units and small commercial buildings.
Benefits
-
Stability and ease of installation
-
Removable chassis for flush version
-
Modular capacity : 8, 12, 16, 20, 24 and 36 modules of 18 mm
-
Integrated smoked or plain reversible door opening to 180°
-
Double brass terminal block included
-
IP40 and Class2.
