Single Three Phase Automatic Voltage Stabilizer Steel Case Pure Copper Coil

Single Three Phase Automatic Voltage Stabilizer Steel Case Pure Copper Coil

  • Single Three Phase Automatic Voltage Stabilizer Steel Case Pure Copper Coil
  • Single Three Phase Automatic Voltage Stabilizer Steel Case Pure Copper Coil
  • Single Three Phase Automatic Voltage Stabilizer Steel Case Pure Copper Coil
  • Single Three Phase Automatic Voltage Stabilizer Steel Case Pure Copper Coil
  • Single Three Phase Automatic Voltage Stabilizer Steel Case Pure Copper Coil
  • Single Three Phase Automatic Voltage Stabilizer Steel Case Pure Copper Coil
Single Three Phase Automatic Voltage Stabilizer Steel Case Pure Copper Coil
Product Details:
Place of Origin: China
Brand Name: Chint
Certification: CE,CCC
Model Number: TND1(SVC)-TNS1(SVC)
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: USD40~USD1,500/unit
Packaging Details: Standard export carton
Delivery Time: 5-8 working days or bulk order negotiate
Payment Terms: T/T, Western Union
Supply Ability: 1,000pcs/month
Contact Now
Detailed Product Description
Voltage: 230V/400V Power: 0.5kVA~30kVA(1phase), ~60kVA(3phase)
Material: Steel Case + Pure Copper Coil
High Light:

digital multifunction meter

,

industrial control transformer

Chint Low Voltage TND/TNS(SVC) Single Phase Three Phase Automatic Voltage Stabilizer Power Supply Quality Component





TND1(SVC) Single-phase Automatic Voltage Regulator (0.5~30kVA)

TNS1(SVC) Three-phase Automatic Voltage Regulator (1.5~60kVA)





Application

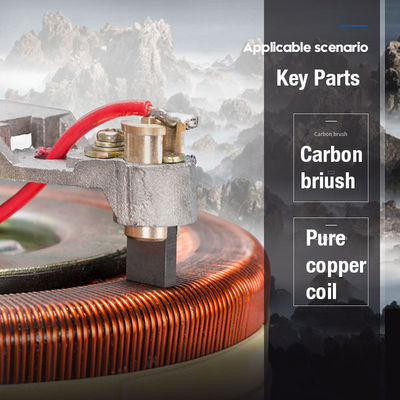

TND/TNS(SVC) series full-automatic AC voltage regulator collects sample and amplifies it and automatically control circuit, and drives the servomotor to rotate the rocker arm and brush in required direction, and finally adjusts the output voltage to the rated value, finally reaches the aim of stabilizing the voltage. It can be widely used in areas, where the mains voltage often comes across sharp fluctuation or sharp seasonal variation, such as industrial production, scientific research medical treatment & hygiene, household electrical appliances, it can provide any loads with excellent power supply.





Features

Elegant appearance, compact structure, light weight, low power waste, complete protection functions, stable and reliable, low output waveform distortion and so on.





Operation conditions

Ambient temperature: -15℃~+45℃.

Relative humidity ≤90%(at +25℃).

Altitude: ≤1000m.

Working environment: Indoors, be free from chemical deposition, dirt, harmful corrosive medium, or flammable or explosive gas.




Technical Data

Chint TND/TNS voltage stabilizer
Model TND TNS
Phase Single Three
Power (kVA) 0.5,1,1.5,2,3,5,10,
15,20,30
1.5,3,4.5,6,9,15,
20,30,45,60
Input volt 160~250V 280~430V(3P4L)
Output volt 220V+/-4% 380V+/-4%
Frequncy 50-60Hz
Stabilizing time <=3s with input volt fluactuating less than 20V
Harmonic distortion No additional distortion
Output over-voltage
protection set value
246+/-4V phase voltage 246+/-4V
Output under-voltage
protection set value
180+/-4V phase voltage 180+/-8V





Single Three Phase Automatic Voltage Stabilizer Steel Case Pure Copper Coil 0

Single Three Phase Automatic Voltage Stabilizer Steel Case Pure Copper Coil 1

Single Three Phase Automatic Voltage Stabilizer Steel Case Pure Copper Coil 2

Single Three Phase Automatic Voltage Stabilizer Steel Case Pure Copper Coil 3

Technical characteristics

Output capacity

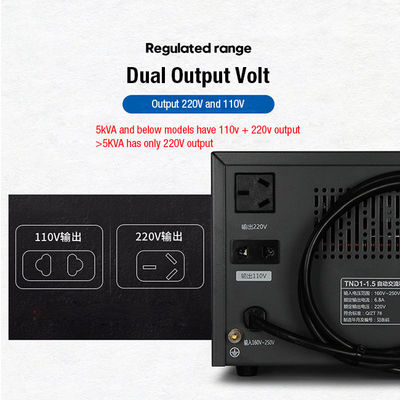

The relation between output capacity and input voltage refer to as fig. 1 When input voltage less than 198V, the output capacity of product will decrease, the working capacity of stabilizer shall come down; when you choose output voltage of 110V, the out put capacity shall be not more than 50% rated capacity,to prevent overload.



Overload capacity

The stabilizer is not allowed for working overloading long time, when the input phase voltage fluctuate within 198V ~ 250V (line voltage from 342V ~ 430V), at emergent case, it is allowed to work as specified



Single Three Phase Automatic Voltage Stabilizer Steel Case Pure Copper Coil 4

Single Three Phase Automatic Voltage Stabilizer Steel Case Pure Copper Coil 5

Single Three Phase Automatic Voltage Stabilizer Steel Case Pure Copper Coil 6
