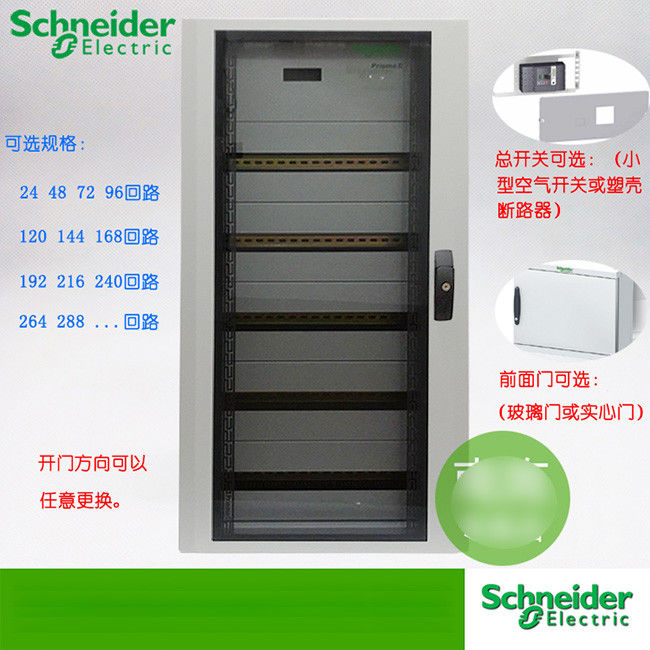

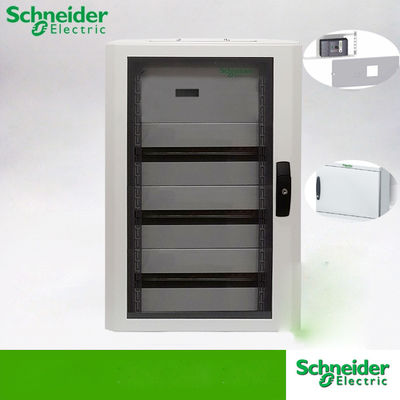

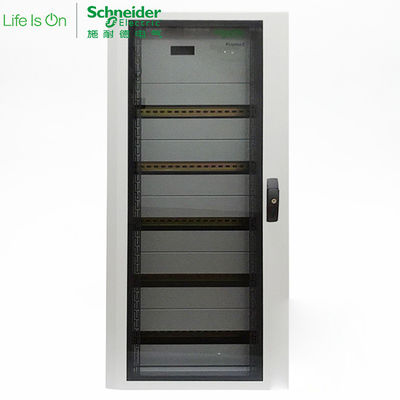

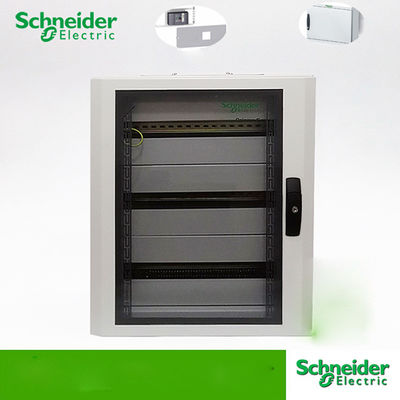

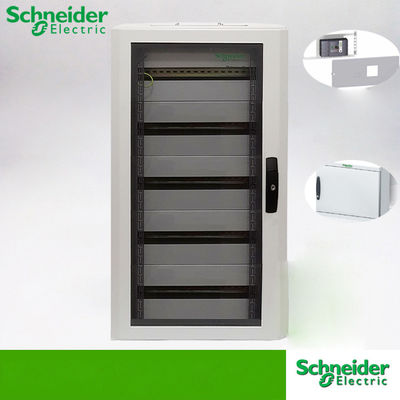

Prisma E Metal Power Distribution Board 100~630A External 810x610x156mm 96 - Way

Prisma E Metal Power Distribution Board 100~630A External 810x610x156mm 96 - Way

  • Prisma E Metal Power Distribution Board 100~630A External 810x610x156mm 96 - Way
  • Prisma E Metal Power Distribution Board 100~630A External 810x610x156mm 96 - Way
  • Prisma E Metal Power Distribution Board 100~630A External 810x610x156mm 96 - Way
  • Prisma E Metal Power Distribution Board 100~630A External 810x610x156mm 96 - Way
  • Prisma E Metal Power Distribution Board 100~630A External 810x610x156mm 96 - Way
  • Prisma E Metal Power Distribution Board 100~630A External 810x610x156mm 96 - Way
Prisma E Metal Power Distribution Board 100~630A External 810x610x156mm 96 - Way
Product Details:
Place of Origin: China
Brand Name: Schneider Electric
Certification: CE,CCC
Model Number: Prisma E
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: USD500~USD3,000
Packaging Details: Standard export carton
Delivery Time: 15-20 working days or bulk order negotiate
Payment Terms: T/T
Supply Ability: 100pcs/month
Contact Now
Detailed Product Description
Material: Sheet Steel Color: Grey White/Transparent Cover
Application: Power Distributing Type: Distribution Box Electrical Board
Installation Type: Surface Type/ Flush Type Standard: IEC60439-3
Rated Voltage: 220V-380V,220/110V Rated Current: 100~630A
Frequency: 50 HZ/60HZ External Size: 810x610x156mm (96-way)
Way: Up To 288 Ways Working Temperature: -40 To +80 Degrees Centigrade
Highlight:

power distribution box

,

electrical db box

Prisma E Metal Distribution Board 48,96,144,168,192,240 ways 100~630A made by Schneider Electric



Rated Current:630A
Rated Insulation Voltage Ui:1000V AC
Rated Work Voltage:≤690V AC
Rated impulse withstand voltage:8KV
Rated short-time withstand current Icw:20KA 1s
Rated peak withstand current Ipk:42 KA
IP degree:IP30,IP40,IP54
Board dimension(mm):500,700,900,1100,1300,1650,1850
