Product Details:
Place of Origin: China
Brand Name: Chint
Certification: CE,CCC

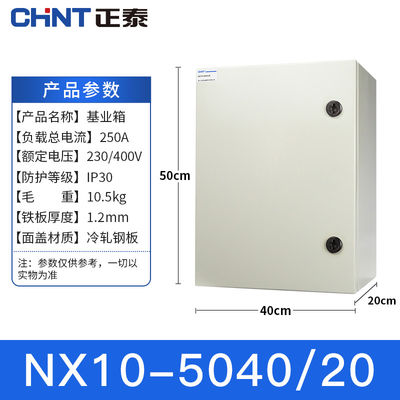

Model Number: NX10
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: USD20~USD400
Packaging Details: Standard export carton
Delivery Time: 5-8 working days or bulk order negotiate
Payment Terms: T/T
Supply Ability: 500pcs/month
Contact Now
Detailed Product Description
Material: Galvanized Sheet Steel Or Aluminum Alloy Application: Power Distribution
Type: JXF Distribution Enclosure Boxes Installation Type: Wall Surface / Flush Mount Or Free Floor Standing
Standard: IEC60439-3 Rated Voltage: 220V-380V,220/110V
Rated Current: 63A, 100A, 125A, 160A Up To 630A Frequency: 50 HZ/60HZ
External Size: 810x610x156mm (96-way) Way: 8,10,12,16,20,24,32,36,40,45,48,60
Working Temperature: -40 To +80 Degrees Centigrade Color: White,Grey,Ral7035 Or Ral7032
High Light:

distribution board box

,

industrial power distribution board

Chint NX10 Installation Enclosures JXF in Sheet Steel For indoor or Outdoor Electrical Distribution Motor Control



NX10 /JXF is a metal enclosure providing the function of Control, monitering, measurement and protection  for the electric power loops and main power controlling equipment.

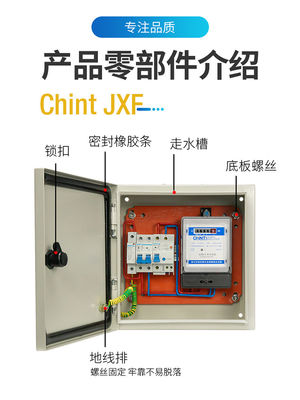

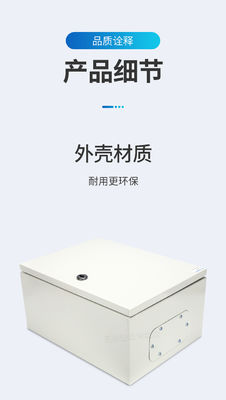

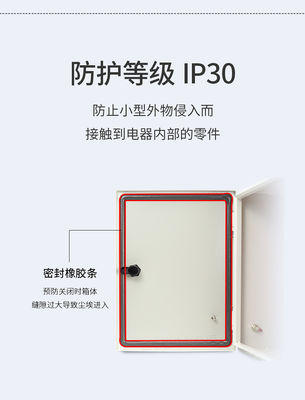

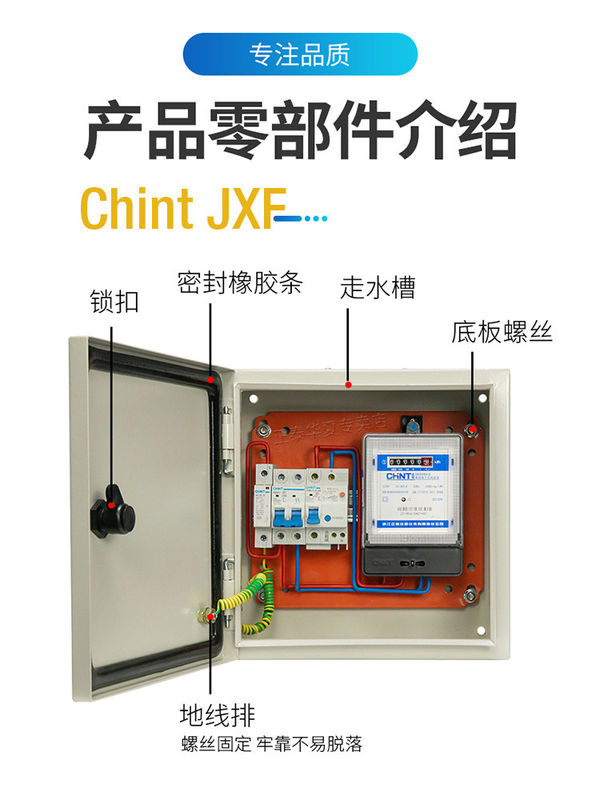

Supplied with a special lock, metal plate for fixing of electrical devices, lid for the input-output conductors, grounded dowel pin, gaskets, etc. Option to change the opening direction. Made of single steel sheet, treated with decorative powder coating.



Technical data:

Rated voltage: up to 1000V

Maximum current: up to 1250A

Material: steel white / RAL 7032 / other custom

Coating: powder style painting

IP code: IP 65

Mounting:  vertically on flat surface





Technical Parameter











Type

JXF IP43 improved





Protection grade

IP43





Rated voltage

220/400V





Rated operating current

400A





withstand current

15kA





Hinge

Enhanced





Sealing rubber gasket

Black rubber gasket





Cable gland

Bottom only

















Standard & Certificate











Standard

EN60529



Certificate

CE
