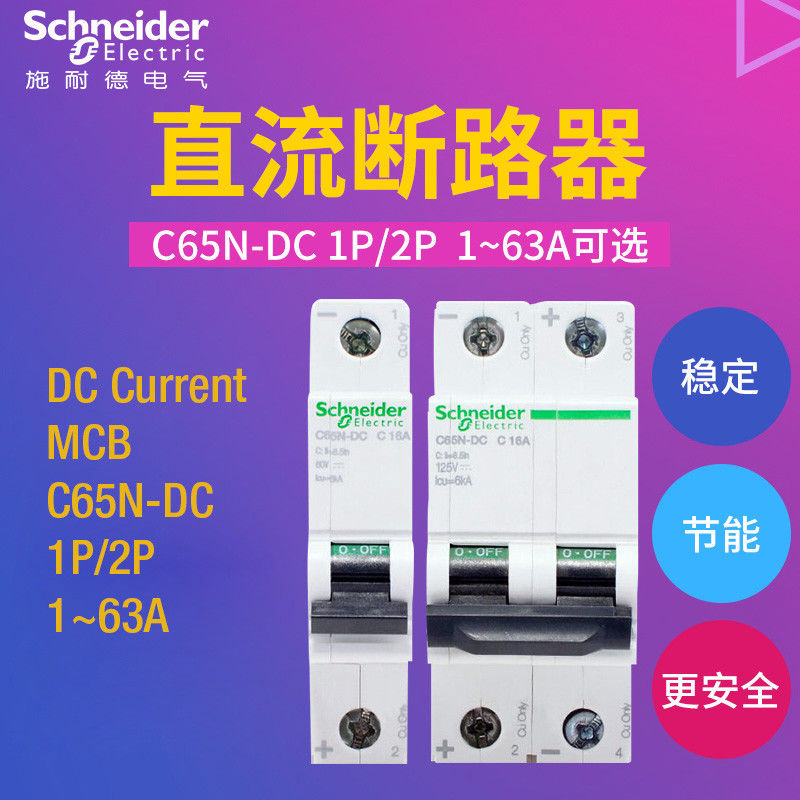

Acti9 DC Current MCB C65N-DC Miniature Circuit Breaker 1~63A, 1P,2P for photo-voltaic PV 60VDC or 125VDC application
Product Details
| Model: | C65N-DC | Pole(s): | 1,2 |
|---|---|---|---|
| Volt: | 1P-60Vdc, 2P-125Vdc | Hz: | 50~60Hz |
| Phase: | 1/3 | Standard: | EN/IEC60898 |
| Certification: | CCC, CE, GS Etc. | Breaking Capacity: | Ics=Icn=6000A |
| Thermal Trip Curve: | B,C,D | Case Material: | Nylon 66 Recylable |
| Wiring: | Terminal Block, Busbar Duct Etc. IP20B | Electric Shock Protection: | Class II |
| Mechanical Life: | 20,000 | Electrical Life: | 10,000 |
| Highlight |
industrial type circuit breaker,electric circuit breaker |
||
Product Description

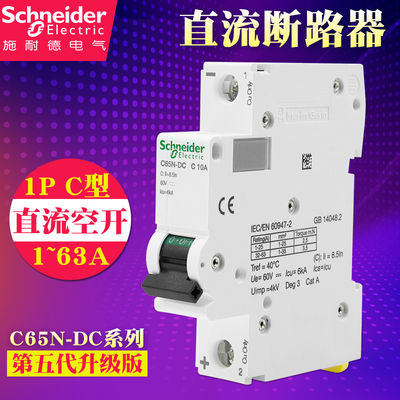

Acti9 C65N-DC
Schneider Electric Original Made In China
DC Current Photo-voltaic Use Miniature Circuit Breakers 1~63 A
Miniature Circuit Breakers for Direct Current circuits, offering photovoltaic installation protection
The Acti9 C60N-DC is a miniature circuit breaker that offers direct current circuit protection. It protects circuits against short-circuit currents and overload currents.
- Compliant with IEC60947-2
- Available in 1P or 2P
- C tripping curve
- Up to 500V DC.
C65N-DC combines the following functions:
b Protection of circuits against short-circuit currents
b Protection of circuits against overload currents
b Control
b isolation
The Acti9 C60PV-DC is a miniature circuit breaker that is designed for photovoltaic (PV) installations. It protects the cables between each string of a photovoltaic module against short-circuit currents and overload currents.
- Compliant with IEC/EN 60947-2
- Available in 2P
- B or C tripping curves
- Up to 800V DC
- Pre-wired
- Non-polarized: wires can be inverted without risk
- Locakable for improved operational safety
- Delivered with three interpole barriers, for improved isolation between connectors.
Benefits
- Enhanced operational safety thanks to green strip toggle indicator which increases safety of downstream current flow when breaker is in open position
- Improved service life thanks to fast closing of breaker, independent of operator
- Short-circuit current limitation thanks to fast opening of contacts, to reduce risk of damage to circuit loads.
- Enhanced operational safety thanks to green strip toggle indicator which increases safety of downstream current flow when breaker is in open position
- Improved service life thanks to fast closing of breaker, independent of operator
- Short-circuit current limitation thanks to fast opening of contacts, to reduce risk of damage to circuit loads
- Easier installation as wires can be inverted without risk (non-polarized).
Applications
Direct current circuits such as industrial control, automation, transportation and renewable energy.
Acti9 C60PV-DC:
Designed for direct current photovoltaic installations.
Applicable Industries
- Telecommunication infrastructure:
- Electrical supply for industrial PLCs:
- PLCs and peripheral devices (24 or 48 V DC).
- Auxiliary uninterruptible direct current power supply:
- relays or electronic protection units for MV cubicles,
- switchgear opening / closing coils and motors,
- LV control and monitoring relays,
- indicator lights,
- circuit-breaker or on/off switch motor drives,
- power contactor coils,
- communicating control/monitoring and supervision devices
