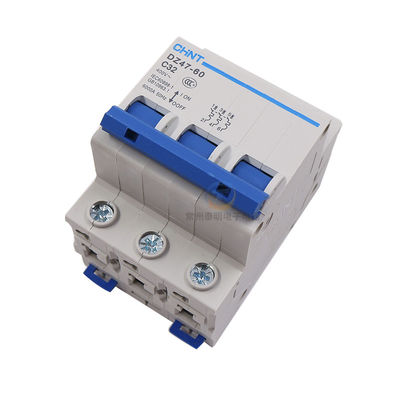

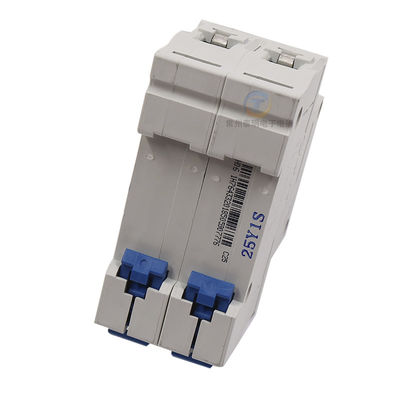

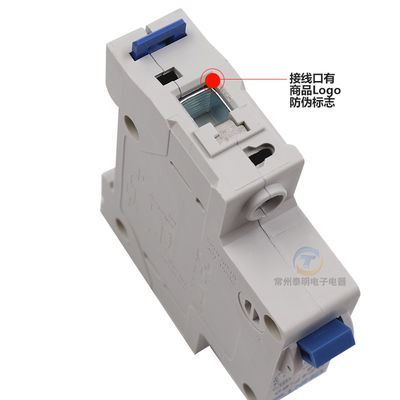

Chint DZ47-60 Miniature Circuit Breaker 6~63A, 80~125A, 1P,2P,3P,4P for Circuit Protection AC220, 230V, 240V Use

Chint DZ47-60 Miniature Circuit Breaker 6~63A, 80~125A, 1P,2P,3P,4P for Circuit Protection AC220, 230V, 240V Use

  • Chint DZ47-60 Miniature Circuit Breaker 6~63A, 80~125A, 1P,2P,3P,4P for Circuit Protection AC220, 230V, 240V Use
  • Chint DZ47-60 Miniature Circuit Breaker 6~63A, 80~125A, 1P,2P,3P,4P for Circuit Protection AC220, 230V, 240V Use
  • Chint DZ47-60 Miniature Circuit Breaker 6~63A, 80~125A, 1P,2P,3P,4P for Circuit Protection AC220, 230V, 240V Use
  • Chint DZ47-60 Miniature Circuit Breaker 6~63A, 80~125A, 1P,2P,3P,4P for Circuit Protection AC220, 230V, 240V Use
  • Chint DZ47-60 Miniature Circuit Breaker 6~63A, 80~125A, 1P,2P,3P,4P for Circuit Protection AC220, 230V, 240V Use
Chint DZ47-60 Miniature Circuit Breaker 6~63A, 80~125A, 1P,2P,3P,4P for Circuit Protection AC220, 230V, 240V Use
Product Details:
Place of Origin: China
Brand Name: Chint
Certification: CE, CCC etc.
Model Number: DZ47-60
Payment & Shipping Terms:
Minimum Order Quantity: 12pcs / 1doz.
Price: USD1~15/unit
Packaging Details: standard in carton box
Delivery Time: 2~15days
Payment Terms: T/T, Western Union
Supply Ability: 100,000 pcs/month
Contact Now
Detailed Product Description
Model: DZ47-60 Pole(s): 1,2,3,4,1P+N
Volt: 1P,2P-220/230/240V, 3P,4P-380~415V Hz: 50~60Hz
Phase: 1/3 Standard: EN/IEC60898, IEC60947
Certification: CCC, CE, GS Etc. Breaking Capacity: Ics=Icn=6000A, 4500A
Thermal Trip Curve: B,C,D Case Material: Nylon PA6 Recyclable
Wiring: Terminal Block, Busbar Duct Etc. IP20B Electric Shock Protection: Class II
Mechanical Life: 10,000 Electrical Life: 5,000
High Light:

molded case circuit breaker

,

electric circuit breaker

MCB DZ47-60, C45

CHINT Made In China

AC Use Miniature Circuit Breakers 6~63 A, 80~125A,



Miniature Circuit Breakers for AC Current circuits, offering terminal distribution installation protection



The DZ47-60 is a miniature circuit breaker that offers AC current circuit protection. It protects circuits against short-circuit currents and overload currents.

DZ47-60 mini circuit breaker is used in lighting distribution system or motor distribution system for protection overload and short-circuit in the system. The product is neoteris in structure, light in weight, reliable and excellent in performance. It has high breaking capacity, can trip quickly, and its case and items are adopted by high fire-resistant and shockproof plastics. The product with long life, is mainly used in AC 50Hz/60Hz single-pole 240 or two three, four-pole 415V circuit for overload and short-circuit protection as well as for unfrequent on-and-off switching electric equipment and lighting circuit in normal case. The products comply with IEC 60898 & BS 3711.

  • Compliant with IEC60898
  • Available in 1P, 2P 3P, 4P and 1P+N
  • B, C, D tripping curve
  • Up to 500V AC.

NBE7 MCB combines the following functions:
b Protection of circuits against short-circuit currents
b Protection of circuits against overload currents
b Control
b isolation



Chint DZ47-60 Miniature Circuit Breaker 6~63A, 80~125A, 1P,2P,3P,4P for Circuit Protection AC220, 230V, 240V Use 0

Chint DZ47-60 Miniature Circuit Breaker 6~63A, 80~125A, 1P,2P,3P,4P for Circuit Protection AC220, 230V, 240V Use 1

Chint DZ47-60 Miniature Circuit Breaker 6~63A, 80~125A, 1P,2P,3P,4P for Circuit Protection AC220, 230V, 240V Use 2

Chint DZ47-60 Miniature Circuit Breaker 6~63A, 80~125A, 1P,2P,3P,4P for Circuit Protection AC220, 230V, 240V Use 3

Chint DZ47-60 Miniature Circuit Breaker 6~63A, 80~125A, 1P,2P,3P,4P for Circuit Protection AC220, 230V, 240V Use 4

Chint DZ47-60 Miniature Circuit Breaker 6~63A, 80~125A, 1P,2P,3P,4P for Circuit Protection AC220, 230V, 240V Use 5

Chint DZ47-60 Miniature Circuit Breaker 6~63A, 80~125A, 1P,2P,3P,4P for Circuit Protection AC220, 230V, 240V Use 6



Chint DZ47-60 Miniature Circuit Breaker 6~63A, 80~125A, 1P,2P,3P,4P for Circuit Protection AC220, 230V, 240V Use 7

Chint DZ47-60 Miniature Circuit Breaker 6~63A, 80~125A, 1P,2P,3P,4P for Circuit Protection AC220, 230V, 240V Use 8

Chint DZ47-60 Miniature Circuit Breaker 6~63A, 80~125A, 1P,2P,3P,4P for Circuit Protection AC220, 230V, 240V Use 9



Specification Table

Standard Rated Current (A) Pole Voltage(V) Breaking Capacity(A)
BS3871-1 IEC60898 1 to 40 50 to 63 1 240 6000
2,3,4 415 6000
IEC157-1 50 to 63 1 240 4000
2,3,4 415 4000
1 1 220/240 10000
2,3,4 220/240 20000
2,3,4 380/415 10000
3 1 220/240 8000
2,3,4 220/240 20000
2,3,4 380/415 8000
10 to 40 1 220/240 7000
2,3,4 220/240 16000
2,3,4 380/410 8000
50 1 220/240 6000
2,3,4 220/240 10000
2,3,4 380/410 6000
63 1 220/240 5000
2,3,4 220/240 10000
2,3,4 380/410 5000
Standard Rated Current (A) Pole Voltage(V) Breaking Capacity(A)
BS3871-1 IEC60898 1 to 40 1 240 4000
2,3,4 415 4000
IEC157-1 1 to 40 1 220/240 6000
2,3,4 220/240 12000
2,3,4 380/415 6000

Chint DZ47-60 Miniature Circuit Breaker 6~63A, 80~125A, 1P,2P,3P,4P for Circuit Protection AC220, 230V, 240V Use 10

CONSTRUCTION AND FEATURE
.Capable of switch electric circuit with load
.Capable of quickly releasing stored energy operation
.Adaptable to padlock device
.Contact position indication
.High short-circuit current withstand capacity
.High lighted of high making and breaking capacity
.Used as main switch for household and similar installation

TECHNICAL DATA
.Pole NO.:1,2,3,4
.Rated Current(A):1,2,3,4,6,10,16,20,25,32,40,50,63
.Rated frequency: 50/60Hz
.Rated voltage: 230/400V AC
.Rated withstand current: 1000A Within lesc
.Electro-mechanical endurance: 1000 Cycles
.Rated short-circuit making capacity: 4500A, 6000A
.Connection Capacity: Rigid conductor 25mm2
.Connection Terminal:
.Screw terminal
.Pillar terminal with lamp
.Installation:
.Panel mounting

OVERALL & INSTALLATION DIMENSIONS

  Standard   IEC/EN 60898-1
Mechanical
features
Electrical life   4000
Mechanical life   10000
Protection degree   IP20
Reference temperature for
setting of thermal element
30
Ambient temperature(with daily
average≦35℃
-5..+40
Storage temperation
Installation Terminal connection type   Cable//U-type busbar/pin-type busbar
Terminal size top/bottom for cable mm2 25
AWG 18-3
Terminal size top/bottom for busbar mm2 25
mm2 18-3
Tightening torque N*m 2
In-Ibs. 18
Mounting   On DN rail EN 60715(35mm)by meas of fast clip device
Connection   From top and bottom
Rated current
In (A)
Temperature compensation coefficient under various operational temperature
-10℃ 0℃ 10℃ 20℃ 30℃ 40℃ 50℃ 55℃ 60℃
6 1.2 1.14 1.09 1.05 1.00 0.96 0.8 0.75 0.7
10-32 1.18 1.12 1.08 1.04 100 0.96 0.92 0.88 0.84
40 1.16 1.12 1.07 1.03 1.00 0.97 0.87 0.83 0.80
  Standard   IEC/EN 60898-1
Electrical
features
Rated current In A 6,10,16,20,25,32,40,50,63
poles   1P,2P,3P,4P
Rated voltage Ue V 230/400
Insulation voltage Ui V 500
Rated frequency Hz 50/60Hz
Rated breaking capacity KA 6000
Rated impelse withstand voltage(1.2/50)UimpStandard V 4000
Dielectric test voltage at ind,Fred,for 1 min KV 2
Polluttion degree   2
Themo-magnetic release characteristis   B,C,D
