XL21 Motor Control Cabinet Power Electrical Enclosure Sheet Steel For Switch Panel IEC 60439
Product Details
| Material: | Cold Rolled Sheet Steel | Color: | White,gray,RAL 7035 |
|---|---|---|---|
| Application: | To Protect Circuit Breakers Installed In The Panel Box,Indoor Or Outdoor,Industrial | Type: | Distribution Box,Power Distribution System |
| Protection Level: | IP54 | Rated Voltage: | 220/380V,120V/240V |
| Standard: | IEC60439-3 | Rated Current: | 125A-630A |
| Function: | Waterproof Distribution Box | Certification: | CE |
| Working Temperature: | -40 To +80 Degrees Centigrade | Name: | Distribution Cabinet/Power Electric Meter Box |
| Mounting Type: | Flush Or Surface | ||
| Highlight |
distribution board box,industrial power distribution board |
||
Product Description
XL21 Motor Control Cabinet Power Electrical Enclosure in Sheet Steel for Switch Panel Installation IEC 60439
Panel Building Services for Electrical Installation and Distribution
Designed to enclose electrical and or electronic equipment and protect against harsh,industrial environments.
For use as instrument enclosures,electric hydraulic or pneumatic control housings,electrical junction boxes or terminal wiring enclosures.
Impressive styling features make the enclosure a suitable addition to any high-tech equipment installation
For high temperature applications ,a gasket retainer may be required, please refer to factory
Construction
Body and cover are formed from 1.2mm mild steel. mounting plate in sheet steal or galvanized steel.
Continuously hinged cover has steel hinges and provides 120 º opening.
Finish
Standard cycle epoxy polyester powder finish.
Body and doors RAL 7032 textured finish.
Mounting plate in RAL 2004 smooth finish
Protection degree
Complies with IEC 60529 and NEMA4,12
IP65 waterproof class
Welding Electric Control Panel Cabinet Enclosure is made from Carbon Steel, Cold-rolled Strip. According to the electric protection requirement, the cabinet frame is used to control fire-fighting equipment, electric control cabinets and industrial machinery. It's always used in the power supply substation, power distribution substation and power transformer substation and factory.
XL-21 indoor/outdoor electrical sheet metal enclosures Power distribution Box
XL-21 low-voltage distribution cabinet XL-21 Low-voltage switchgear Low-voltage switchgear (hereinafter referred to as the device) for AC 50Hz, rated working voltage of 400V,
rated current of 4000A and below the low-voltage power grid for power generation, transmission, power distribution system as power lighting, power conversion, Protection and control occasions.
The device is approved by a full type of pilot project (TTA) and a national mandatory product certification (CCC certification). The device complies with the requirements of GB7251.1 and IEC60439.
Feature
1. It is applicable for the start-up control of various types of motors, pumps, fans and other control equipment.It can be installed on the wall, in the wall and on the floor.
2. The box is made of high quality steel plate or stainless steel, and the surface treatment usually uses electrostatic spraying.The control box has outdoor and indoor type.
3. Outdoor box is composed of inside and outside doors, and inside door is safe to operate and outdoor is matched by transparent safety glass protection window.
4. The product meets the requirements of GB7251.3.
Main technical parameters of XLS low voltage switchgear
|
Item |
Parameter |
|
Rated Voltage |
AC380V,AC660V |
|
Rated Frequency |
50/60HZ |
|
Rated insulation voltage |
660V |
|
Material |
Sheet Steel |
|
Paint Finish |
Epoxy Polyester Coating |
|
Lock |
Available on Request |
|
Thickness |
0.8mm, 1.0mm, 1.2mm. 1.5mm. 2.0mm |
|
Height*Width*Depth(mm) |

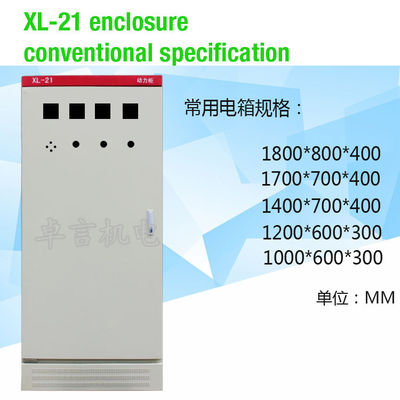

1900/1800/1700*600/700/800*370/450 |

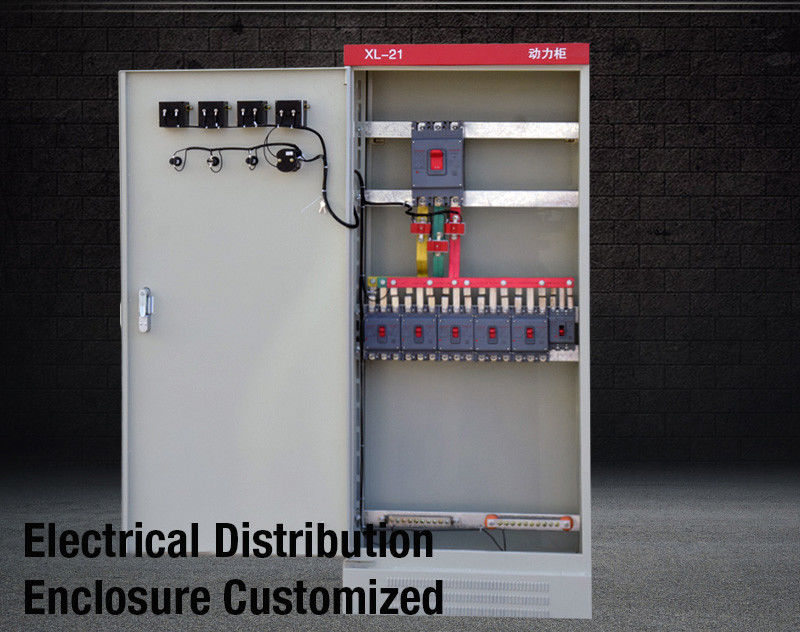

XL-21 Power Distribution Cabinet Electrical control switchboard panel board enclosure
|
Main technical parameters |
|||
|
Sequence number |
Project Name |
Unit |
Electrical parameters |
|
1 |
standards |
|
GB 7251.1-2005 |
|
2 |
The rated voltage insulation Ui |
V |
690V |
|
3 |
Rated voltage Ue |
V |
400V |
|
4 |
Rated current In |
A |
630A~100A |
|
5 |
Short-term tolerance current ability lew |
kA |
20KA |
|
6 |
Shell IP protection grade |
|
IP30/IP55/IP65 |
|
7 |
Environment temperature |
°C |
-20~+40 |
|
8 |
installation |
|
landing |
|
9 |
Case materials |
mm |
1.5-2.0 Cold-rolled steel sheet or stainless steel plate |
|
10 |
Surface treatment |
|
Electrostatic spraying technology |
|
11 |
Open the direction |
|
The opening Angle is equal or greater than 135 ° |
|
Item number |
XL-21(G) |
|
Material |
|
|
Main bus-bar Rated current |
lnA: 400A~10A |
|
lcw: 10kA |
|
|
Rated voltage |
Ue: 380V Ui: 660V |
|
Frequency |
50Hz |
|
Protection level |
IP30 |
|
Suit for |
ac voltage 500V three-phase three-wire three-phase four-wire three-phase five-wire systems |
|
Execution Standard |
IEC60439-1: 1992 ,GB7251 .1-1997 |
|
Electric circuit |
Included Ammeter, voltmeter |
|
Features |
It is applicable in power plants, industrial and mining enterprises which have three-phase-three-wire, three-phase-four-wire and three-phase-five-wire system of AC voltage 550V and below. It is widely used for power, lighting and distribution in industrial and mining enterprises, metallurgical chemical industries, hotels, banks, stations, docks, rail transports and other indoor and outdoor conditions. If used outdoors, please negotiate with us.
|
Product Highlights
XL21 Motor Control Cabinet Power Electrical Enclosure in Sheet Steel for Switch Panel Installation IEC 60439 Panel Building Services for Electrical Installation and Distribution Designed to enclose electrical and or electronic equipment and protect against harsh,industrial environments. For use as ...
