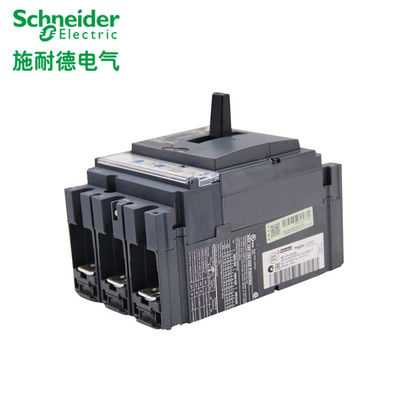

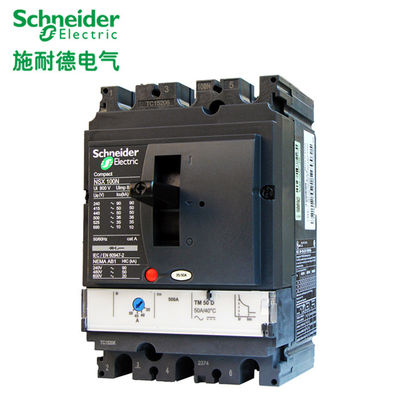

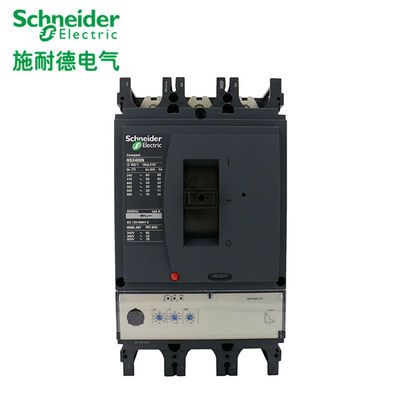

Schneider Electric ComPact NSX Molded-case circuit breakers from 16 to 630 A 36kA,50kA,70kA,100kA 380V 415V IEC-60947
ComPact NSX is a full range of high performance molded case circuit breakers (MCCB) in 2 frame sizes designed to meet your needs from thermal-magnetic to advanced MicroLogic trip units. This range features integrated earth leakage protection.
The CVS moulded case circuit breaker will provide protection for the circuit and equipment in case of overload, short circuit and under voltage condition occurred in the power distribution circuit. Besides, it can also provide protection of overload, short circuit and under voltage for the non-frequent start of motor.
Frame size:
NSX series moulded case circuit breaker:
F/N/H/S type:16, 25, 32, 40, 50, 63, 80, 100, 125, 160, 200, 250, 320, 400, 500, 600, 630
● Rated operational voltage: Ue (VAC): 400/415/500
● Breaking capacity code: 36kA,50kA, 70kA, 100kA
● Number of poles: 3P, 4P
● Release type:
thermal magnetic fixed type;
electronic type - 630A
● Installation method: Fixed type; pulg-in type
|
range |
Compact |
|---|---|
|
product name |
Compact NSX |
|
product or component type |
Circuit breaker |
|
device short name |

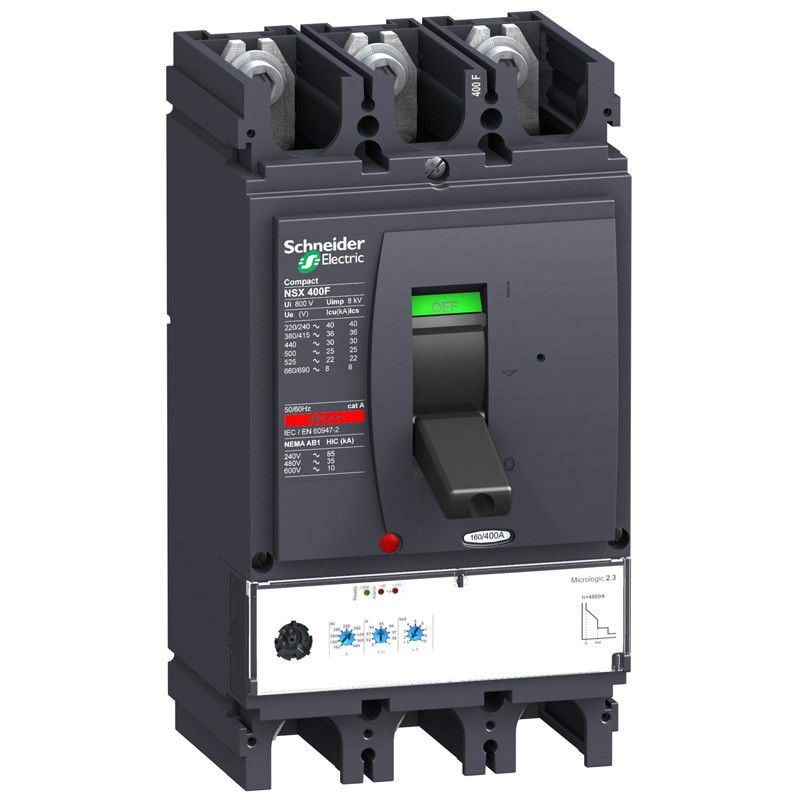

Compact NSX400F |
|
device application |
Distribution |
|
poles description |
3P |
|
protected poles description |
3t |
|
network type |
AC |
|
network frequency |
50/60 Hz |
|
[In] rated current |
400 A at 40 °C |
|
[Ui] rated insulation voltage |
800 V AC 50/60 Hz |
|
[Uimp] rated impulse withstand voltage |
8 kV |
|
[Ue] rated operational voltage |
690 V AC 50/60 Hz |
|
Breaking capacity code |
F 36 kA 415 V AC |
|
breaking capacity |
40 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 |
|
[Ics] rated service breaking capacity |
40 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 |
|
suitability for isolation |
Yes conforming to EN 60947-2 |
|
utilisation category |
Category A |
|
trip unit name |
Micrologic 2.3 |
|
trip unit technology |
Electronic |
|
trip unit protection functions |
LSoI |
|
pollution degree |
3 conforming to IEC 60664-1 |
|
control type |
Toggle |
|---|---|
|
mounting mode |
Fixed |
|
mounting support |
Backplate |
|
upside connection |
Front |
|
downside connection |
Front |
|
auxiliary contact composition |
Without |
|
mechanical durability |
15000 cycles |
|
electrical durability |
12000 cycles 440 V In/2 conforming to IEC 60947-2 |
|
connection pitch |
45 mm |
|
local signalling |
LED 105 % Ir |
|
protection type |
L : for overload protection (long time) |
|
trip unit rating |
400 A at 40 °C |
|
long time pick-up adjustment type Ir |
Adjustable 9 settings |
|
long time pick-up adjustment range |
0.9...1 x Io |
|
long time delay adjustment type |
Fixed |
|
[tr] long-time delay adjustment range |
16 s at 6 x Ir |
|
thermal memory |
20 minutes before and after tripping |
|
short-time pick-up adjustment type Isd |
Adjustable 9 settings |
|
[Isd] short-time pick-up adjustment range |
1.5...10 x Ir |
|
short-time delay adjustment type |
Fixed |
|
instantaneous pick-up adjustment type Ii |
Fixed |
|
instantaneous pick-up adjustment range |
4800 A |
|
height |
255 mm |
|
width |
140 mm |
|
depth |
110 mm |
|
net weight |
6.05 kg |
|
compatibility code |
NSX400 |
|
overvoltage category |
Class II |
|---|---|
|
electrical shock protection class |
Class II |
|
standards |
EN/IEC 60947 |
|
product certifications |
EAC |
|
IP degree of protection |
IP40 conforming to IEC 60529 |
|
IK degree of protection |
IK07 conforming to IEC 62262 |
|
ambient air temperature for operation |
-35…70 °C |
|
ambient air temperature for storage |
-55…85 °C |
Features
The ComPact NSX molded case circuit breaker (MCCB) range is designed to optimize space and breaking capacity. The range comes in two frame sizes with a variety of optional functions and accessories.
Specifications:
Flexible installation: any position; switchboard or wall-mounted
Nominal current: 16 to 630 A
9 Breaking capacities for the 2 sizes of circuit breakers:
- up to 250 A: 25, 36, 50, 70, 100, 150, 200 kA at 415 V
- up to 630 A: 36, 50, 70, 100, 150, 200 kA at 415 V
- both size of circuit breakers with 75 & 100 kA at 690 V
1, 2, 3 and 4 pole versions available
Large range of electronic and thermal-magnetic protections
Advanced trip unit with integrated power metering: I, U, P, E, THD, f, CosPhi
Interchangeable trip-units to upgrade your panel with smarter functions
Plug and ready wiring system and communicating accessories
Wealth of options for auxiliaries and accessories (field installable)
Integrated earth leakage protection via MicroLogic Vigi (earth leakage circuit breaker - ELCB)
Benefits
Easy and efficient
Two standardized frame sizes for your convenience
Save space, time and effort with integrated earth leakage protection (ELCB), in the molded case circuit breaker (MCCB) frame size
Easy to swap trip units and standardized accessories over time
Wide range of online and offline software tools that help to improve productivity at all stages of your project (Product Selector, EcoStruxure Power Design - Ecodial, EcoStruxure Power Build - Low Voltage, EcoStruxure Power Commission)
Optimize safety
Highly resistant to environmental stresses
Roto-active breaking technology helps to reduce early aging effects and increase operation lifespan
Measure and Communicate
Local and remote communication with trip alarm (earth leakage, overload, short circuit) and pre- alarms (earth leakage) allowing you to proactively increase operational and energy efficiency
Advanced MicroLogic trip unit can assist in providing corrective, preventative and predictive maintenance and energy management to identify potential savings
Working with communication devices, the ComPact NSX inside our Smart Panels becomes an EcoStruxure connected product within our EcoStruxure Powerarchitecture.
Applications
An excellent choice for all standard and specific applications, including:
Standard applications: industries, buildings, infrastructures
Specific applications demanding high performance: marine, oil and gas extraction and processing, mining operations, metals and minerals production, and data centers
Source-changeover systems (TransferPact): service sector (hospital operating rooms, computer rooms, ), industry (assembly lines, ship engine rooms, etc.), infrastructures (runway, railway, etc.)
Ensures compliance with international standards:
IEC/EN 60947-1 and 2, IEC 60068-2-30 for type 2 tropicalisation, CCC, EAC and other local certifications
Compliance with specifications of marine classification companies: Bureau Veritas, Lloyd’s Register of Shipping, DetNorske Veritas and RIN
