| Place of Origin: | China |
| Brand Name: | Chint |
| Certification: | CE, CB, KEMA/Dekra etc. |
| Model Number: | NM1 |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | USD2,000~USD4,500 |
| Packaging Details: | Standard export carton |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 200pcs/month |
| Product Name: | EasyPact MVS High Current Air Circuit Breakers Up To 4000A | Rated Voltage: | 380V,380/400V,AC230/440/660,230/400V AC 50/60Hz |
|---|---|---|---|
| Rated Current: | 400~4,000A | Poles Number: | 3,4,3P 4P |
| Breaking Capacity: | 50kA, 65kA, 85kA | Material: | Sheet Steel |
| Installation: | Fixed And Drawer | Standard: | IEC 60947-2 |
| High Light: | industrial type circuit breaker,electric circuit breaker |
||

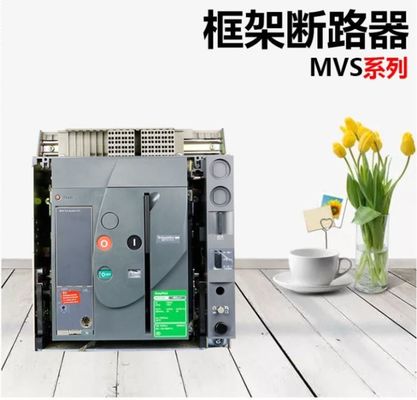

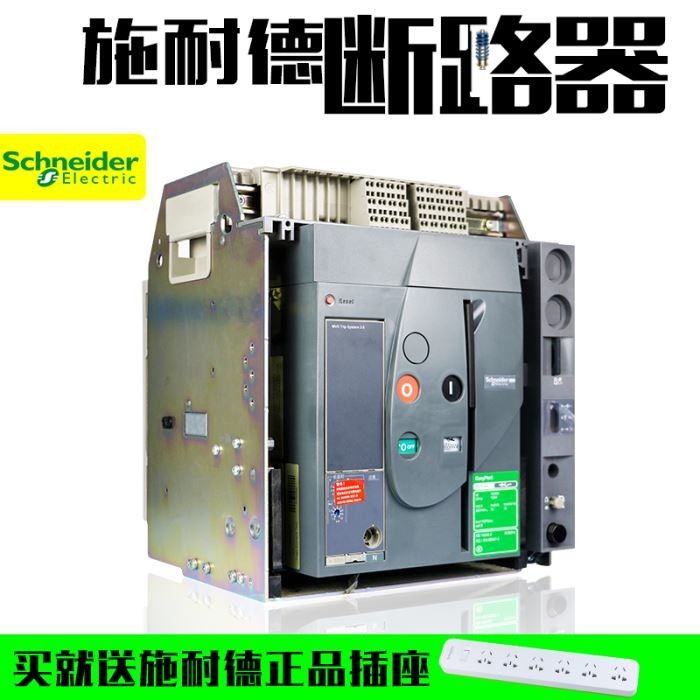

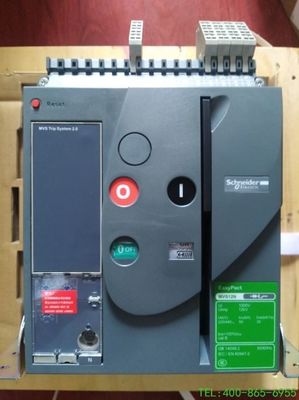

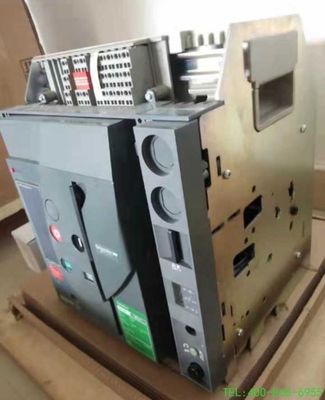

EasyPact MVS High current air circuit breakers up to 4000 A
EasyPact MVS is a range of LV power circuit breakers and switch-disconnectors designed to optimize cost and contribute to the safety and reliable performance of your electrical distribution network. The solution covers ratings from 800 to 4000 A in one single frame size.
Features
The EasyPact MVS range is the easy choice for high current circuit breakers and switch-disconnectors.
It provides performance and reliability needed for most applications from 800 to 4000 A, while offering a cost-effective investment, with no compromise on quality.
Simple and uniform size: 2 sizes
· Complete breaking capacity: 3 breaking capacity ·
N type: current level 400A-1600A, breaking capacity 50kA
· Type H: current class 400A-4000A, breaking capacity 65kA
· T type: current class 2000A-4000A, breaking capacity 85kA
· Wide range of frame currents: 400-4000A
* Rated working voltage: 440VAC/690VAC
* Flexible installation: drawer type, fixed type
* Provide circuit breakers, disconnectors and other products
* Intelligent control unit provides reliable power distribution protection and accurate measurement display: 2.0/5.0/6.0/5.0A/6.0A/5.0V/6.0V
Specification
Single frame size from 800 to 4000 A
Voltage rating up to 690 V AC
Breaking performance (Icu) 50 kA/ 65 kA at 220…440 V AC, and 42 kA/ 50 kA at 690 V AC
Draw out and fixed versions
3-pole and 4-pole construction
Electronic Micrologic control unit, integrating current and voltage monitoring
Optimized range of field-installable auxiliaries and accessories
Compliance with international standard IEC 60947-2 for breakers and IEC 60947-3 for disconnectors
Benefits
EasyPact MVS circuit breakers contribute to reliability and continuity of service of the electrical installation thanks to:
Optimized safety
Faultless protection
Complete selectivity
Integrated monitoring for energy efficiency
Trip unit integrates current and voltage monitoring
Seamless installation
Compactness
Applications
General applications
Suitable in most applications for protection, measurement, monitoring in standard applications:
Commercial buildings
Industrial sites
Electrical utilities and distribution
|
Product Series |
EasyPact |
|---|---|
|
product name |
EasyPact MVS |
|
Product short name |
EasyPact MVS16H |
|
product type |
breaker |
|
Applications |
protection |
|
Number of poles |
3P |
|
Network Type |
AC |
|
Network frequency |
50/60 Hz |
|
Control type |
(press type) button |
|---|---|
|
Installation type |
Fixed |
|
Rated current [In] |
1600 A on 40 °C |
|
Rated insulation voltage [Ui] |
1000 V AC 50/60 Hz in accordance with IEC 60947-2 |
|
Rated impulse withstand voltage [Uimp] |
12 kV in accordance with IEC 60947-2 |
|
Closing capacity [Icm] |
143 kA 220...440 V AC on 50/60 Hz |
|
Rated working voltage [Ue] |
690 V AC 50/60 Hz in accordance with IEC 60947-2 |
|
Circuit breaker model |
H |
|
Transformer rating |
1600 A |
|
Breaking capacity |
65 kA Icu on 220...440 V AC 50/60 Hz in accordance with IEC 60947-2 |
|
Use breaking ability [Ics] |
65 kA on 220...440 V AC 50/60 Hz in accordance with IEC 60947-2 |
|
Isolation function |
Applicable to IEC 60947-2 |
|
Use category |
Category B |
|
Mechanical life |
10,000 times of non-maintenance in accordance with IEC 60947-2 |
|
Electrical life |
6000 times 440 V AC 50/60 Hz not maintained in accordance with IEC 60947-2 |
|
Phase spacing |
115 mm |
|
Rated short-time withstand current [Icw] |
65 kA at 1 s in accordance with IEC 60947-2 on 440 V |
|
Maximum breaking time |
25 ms |
|
Maximum closing response time |
70 ms |
|
height |
352 mm |
|
width |
422 mm |
|
depth |
297 mm |
|
Standards compliant |
IEC 60947-2 |
|---|---|
|
Pollution level |
4 in accordance with IEC 60664-1 |
|
Operating temperature |
-5...70 °C |
|
Storage ambient temperature |
-40...85 °C |
