ABB MS116 Manual Starter Switch 3 Pole 0.1~32A 230/400V 440V Icu Up To 50kA IEC 60947

ABB MS116 Manual Motor Starters 3 Pole 0.1~32A 230/400V 440V Icu up to 50kA in compliance with IEC 60947

MS116 manual motor starters / Motor Protection Circuit Breaker

Description

Manual motor starters (MMS) are protection devices for the main circuit. They combine motor control and protection in a single device. MMS are used mainly to switch motors manually ON/OFF and protect them and the installation fuse less against short-circuit, overload and phase failures. Fuse less protection with a manual motor starter saves costs, space and ensures a quick reaction under short-circuit condition, by switching off the motor within milliseconds.

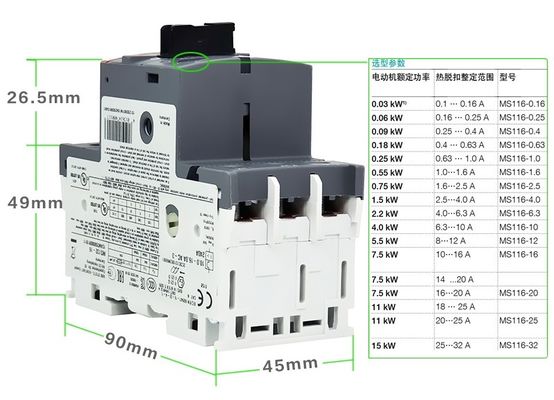

MS116 is a compact and economic range for motor protection up to 15.5 kW (400 V) / 32 A in width of 45 mm. Further features are the build-in disconnect function, temperature compensation, trip-free mechanism and a rotary handle with a clear switch position indication. The manual motor starter is suitable for three- and single-phase applications. Auxiliary contacts, signaling contacts, undervoltage releases, shunt trips, threephase bus bars, power in-feed blocks and locking devices for protection against unauthorized changes are available as accessory.

General Information

• Extended Product Type:

  MS116-6.3

• Product ID:

  1SAM250000R1009

• EAN:

  4013614320323

• Catalog Description:

  MS116-6.3 Manual Motor Starter

• Long Description:

  The MS116-6.3 manual motor starter (also known as motor protection circuit breaker or manual motor protector) is a compact 45 mm width device with a rated operational current of Ie = 6.3 A. This device is used to manually switch on and off motors and to protect them reliably and without the need for a fuse from short-circuits, overload and phase failures. The manual motor starter offers a rated service short-circuit breaking capacity Ics = 50 kA at 400 VAC and trip class 10A. Further features are the build-in disconnect function, temperature compensation, trip-free mechanism and a rotary handle with a clear switch position indication. The manual motor starter is suitable for three- and single-phase applications. Auxiliary contacts, signaling contacts, undervoltage releases, shunt trips, 3-phase bus bars, power in-feed blocks and locking devices for protection against unauthorized changes are available as accessory.

  Technical

• Rated Service Short-Circuit Breaking Capacity (Ics):

  (230 V AC) 50 kA
  (400 V AC) 50 kA
  (440 V AC) 6 kA
  (500 V AC) 6 kA
  (690 V AC) 2 kA

• Rated Ultimate Short-Circuit Breaking Capacity (Icu):

  (230 V AC) 50 kA
  (400 V AC) 50 kA
  (440 V AC) 18 kA
  (500 V AC) 10 kA
  (690 V AC) 3 kA

• Rated Instantaneous Short-Circuit Current Setting (Ii):

  78.8 A

• Setting Range:

  4.0 ... 6.3 A

• Rated Operational Power AC-3 (Pe):

  (400 V) Three Phase 2.2 kW

• Rated Operational Voltage:

  Main Circuit 690 V AC

• Rated Operational Current (Ie):

  6.3 A

• Rated Operational Current AC-3 (Ie):

  6.3 A

• Rated Frequency (f):

  Main Circuit 50 Hz
  Main Circuit 60 Hz

• Rated Impulse Withstand Voltage (Uimp):

  Main Circuit 6 kV

• Rated Insulation Voltage (Ui):

  690 V

• Power Loss:

  at Rated Operating Conditions per Pole 0.7 ... 1.8 W

• Number of Poles:

  3

• Conventional Free-air Thermal Current (Ith):

  Main Circuit 6.3 A

• Degree of Protection:

  Housing IP20
  Main Circuit Terminals IP10

• Pollution Degree:

  3

• Electrical Durability:

  100000 cycle

• Mechanical Durability:

  100000 cycle

• Terminal Type:

  Screw Terminals

• Connecting Capacity Main Circuit:

  Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²
  Flexible with Insulated Ferrule 1/2x 0.75 ... 2.5 mm²
  Flexible 1/2x 0.75 ... 2.5 mm²
  Rigid 1/2x 1 ... 4 mm²

• Tightening Torque:

  Main Circuit 0.8 ... 1.2 N·m

• Wire Stripping Length:

  Main Circuit 9 mm

• Recommended Screw Driver:

  Pozidriv 2

• Mounting Position:

  Position 1 to 6

• Mounting on DIN Rail:

  TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
  TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

• Minimum Mounting Distance:

  Electrical Conductive Board, Horizontal - Up to 400 V 0 mm
  Electrical Conductive Board, Horizontal - Up to 690 V 1.5 mm
  Electrical Conductive Board, Vertical 75 mm
  Other Device Same Type, Horizontal 0 mm
  Other Device Same Type, Vertical 150 mm

• Actuator Type:

  Rotary Handle

• Contact Position Indication:

  ON / OFF

Standards:

IEC/EN 60947-1
IEC/EN 60947-2
IEC/EN 60947-4-1
UL 60947-1
UL 60947-4-1
