| Place of Origin: | China |
| Brand Name: | ABB |
| Certification: | CE, CCC etc. |
| Model Number: | SH200, S200, SN201 |
| Minimum Order Quantity: | 12pcs / 1doz. |
|---|---|
| Price: | USD6~80/unit |
| Packaging Details: | standard in carton box |
| Delivery Time: | 2~15days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100,000 pcs/month |
| Model: | SH200, S200, SN201 | Pole(s): | 1,2,3,4, 1P+N |
|---|---|---|---|
| Volt: | 220~240VAC, 380~400VAC | Hz: | 50~60Hz |
| Phase: | 1/3 | Standard: | EN/IEC60898 |
| Certification: | CCC, CE, GS Etc. | Breaking Capacity: | Ics=Icn=6000A |
| Thermal Trip Curve: | B,C,D | Case Material: | PC Thermal Formed |
| Wiring: | Terminal Block, Busbar Duct Etc. IP20B | Electric Shock Protection: | Class II |
| Mechanical Life: | 20,000 | Electrical Life: | 10,000 |
| High Light: | industrial type circuit breaker,electric circuit breaker |
||

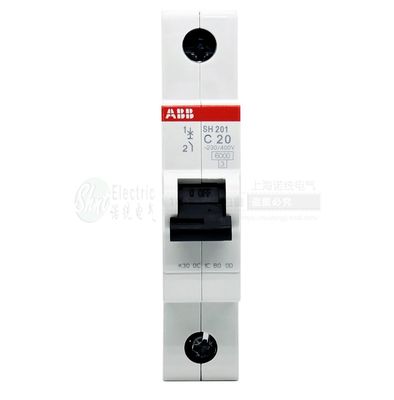

ABB SH200 Series MCB - Miniature Circuit Breaker 1~63A, 1P,2P,3P,4P,1P+N for electrical distribution IEC 60898

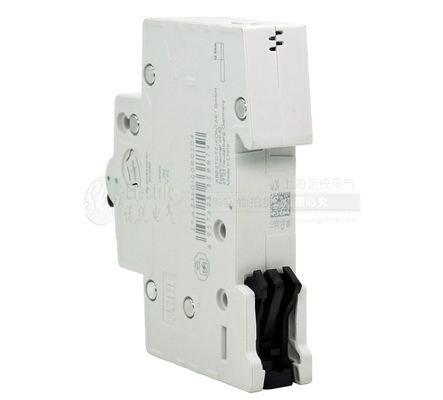

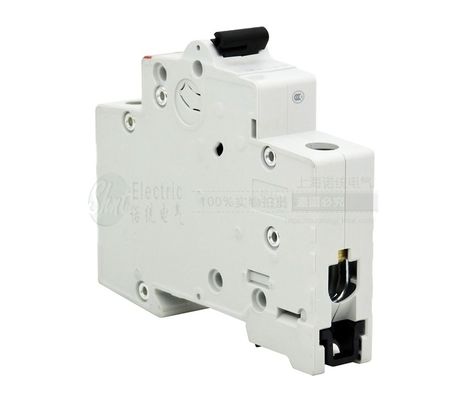

SH200, S200, SN201 Miniature Circuit Breaker - MCB
ABB Brand Original Made In China
Miniature circuit breakers ensure electrical safety in multiple applications. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the magnetic tripping mechanism for short circuit protection.
Main benefits
Extra-wide and complete range of MCBs to cover most applications and markets
Compliance to worldwide product standards (IEC, UL, CSA)
Space and time saving thanks to the unique bottom-fixing auxiliary contact
Established and certified quality
Main features
Characteristics: B, C, D
Configurations: 1P, 1P+N, 2P, 3P, 3P+N, 4P
Breaking capacities up to 15 kA
Rated currents up to 63A
Real contact position indication, directly connected to the moving contact
Product range
S 200
Designed to ensure efficiency and protection
For domestic or small commercial installations up to 10 kA breaking capacity
For industrial installations up to 25 kA breaking capacity
IEC/EN 60898-1, IEC/EN 60947-2 and many other standards and approvals
A wide range of accessories is available!
Special versions
Developed to meet the needs of different segments
S 200MUC for AC/DC applications
S 200MTUC for train-applications
SH 200
For domestic / residential installations in defined markets
Up to 6 kA breaking capacity
According to IEC/EN60898-1
SN 201
1P + N in only one module
Totally integrated in the pro M family
Sharing the wide section of accessories
Label carrier for easier identification of protected line
Contact position indicator on the level, with Green/Red color
SH201-C40NA
General Information
Extended Product Type:
SH201-C40NA
Product ID:
2CDS211103R0404
EAN:
4016779630955
Catalog Description:
Miniature Circuit Breaker - SH200 - 2P - C - 40 ampere
Long Description:
Compact Home SH200 miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C),
configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (up to 40 A). All MCBs of the product range SH200 comply with IEC/EN 60898-1, allowing the use for residential applications.
Technical
Standards:
IEC/EN 60898-1
Number of Poles:
2
Tripping Characteristic:
C
Rated Current (In):
40 A
Rated Operational Voltage:
acc. to IEC 60898-1 230 V AC
Power Loss:
9.6 W
at Rated Operating Conditions per Pole 4.8 W
Rated Insulation Voltage (Ui):
acc. to IEC/EN 60664-1 440 V
Operational Voltage:
Maximum (Incl. Tolerance) 253 V AC
Maximum 253 V AC
Minimum 12 V AC
Rated Frequency (f):
50 Hz
60 Hz
Rated Short-Circuit Capacity (Icn):
(230 / 400 V AC) 10 kA
(230 V AC) 6 kA
Energy Limiting Class:
3
Overvoltage Category:
III
Pollution Degree:
2
Rated Impulse Withstand Voltage (Uimp):
4 kV
(6.2 kV @ sea level)
(5.0 kV @ 2000 m)
Dielectric Test Voltage:
50 / 60 Hz, 1 min: 2 kV
Housing Material:
Insulation Group II, RAL 7035
Actuator Type:
Toggle
Contact Position Indication:
ON / OFF
Degree of Protection:
IP20
Remarks:
IP40 in enclosure with cover
Electrical Endurance:
10000 AC cycle
Mechanical Endurance (Nendu):
20000 cycle
Terminal Type:
Screw Terminals
Screw Terminal Type:
Cage Terminal
Connecting Capacity:
Conductor 25 / 25 mm²
Flexible with Ferrule 0.75 ... 16 mm²
Flexible 0.75 ... 16 mm²
Rigid 0.75 ... 25 mm²
Stranded 0.75 ... 25 mm²
Tightening Torque:
2 N·m
Recommended Screw Driver:
Pozidriv 2
Mounting on DIN Rail:
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
Mounting Position:
Any
Environmental
Ambient Air Temperature:
Operation -25 ... +55 °C
Storage -40 ... +70 °C
Resistance to Shock acc. to IEC 60068-2-27:
25g / 2 shocks / 13 ms
Resistance to Vibrations acc. to IEC 60068-2-6:
5g, 20 cycles at 5 ... 150 ... 5 Hz with load 0.8 In
Environmental Conditions:
28 cycles
with 55 °C / 90-96 %
and 25 °C / 95-100 %
RoHS Status:
Following EU Directive 2002/95/EC August 18, 2005 and amendment
Dimensions
Product Net Width:
35 mm
Product Net Depth / Length:
69 mm
Product Net Height:
85 mm
Product Net Weight:
0.25 kg
Container Information
Package Level 1 Units:
5 piece
Package Level 1 Width:
92 mm
Package Level 1 Depth / Length:
183 mm
Package Level 1 Height:
80 mm
Package Level 1 Gross Weight:
1.3 kg
Package Level 2 Units:
60 piece
Package Level 2 EAN:
4016779987707
Ordering
Minimum Order Quantity:
1 piece
Customs Tariff Number:
85362010
