Place of Origin: | China |
Brand Name: | None |
Certification: | CE |
Model Number: | ATS-Q2263 |
Minimum Order Quantity: | 1 unit |
---|---|
Price: | USD20~USD30/unit |
Packaging Details: | Standard export carton |
Delivery Time: | 5-8 working days bulk order negotiate |
Payment Terms: | T/T, Western Union |
Supply Ability: | 1,000pcs/month |
Max. Current: | 63A | Max. Voltage: | 400V |
---|---|---|---|
Pole: | 2P | Rated Voltage: | 380V,220V/400V |
Rated Current: | 63A | Product Name: | Dual Power Automatic Transfer Switch ATS |
Color: | White,black | Frequency: | AC 50 Hz/60Hz |
Operation Type: | Manual Operation,Auto&Manual | Standard: | IEC60947-6-1 |
Highlight: | 3 phase automatic transfer switch,ats power automatic transfer switch |

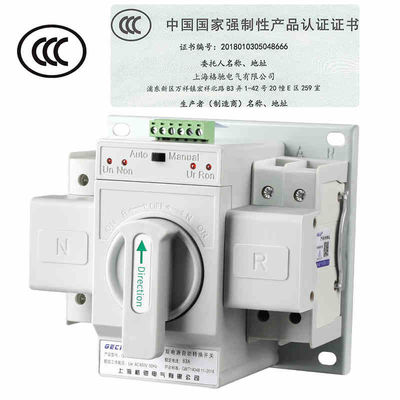

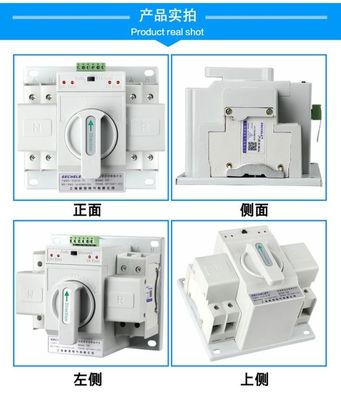

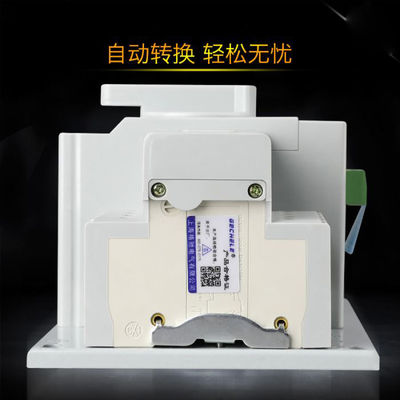

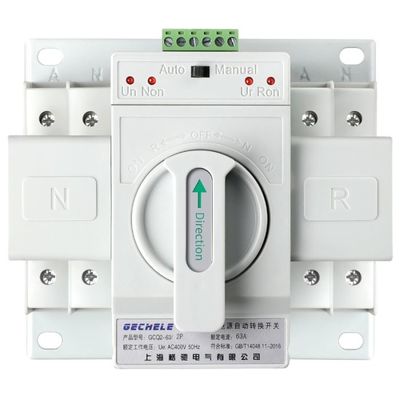

Compact Automatic Transfer Switch ATS CB class Single Phase 2 Pole 63A for Home Use up to 400V IEC 60947-6
Integrates electrical and mechanical interlocking systems to guarantee safe transfer operation.
It is applicable for the three-phase four-wire power supply system of AC 50Hz, rated voltage AC 230V, rated current 63A.
It can realize automatic and manual changeover between normal and back up power supply power, and stop power supplying to load when changeover process of power supply is carried out.
The switch is applicable for two circuits power supply and in the condition which requires high quality power supply.
Standard: IEC 60947-6-1
Technical Data
|
|
Rated current Ie(A) |
63A |
Installation |
Din rail |
Rated insulation voltage Ui (V) |
AC400, 50HZ |
Rated working voltage Ue (V) |
AC230V 50/60Hz |
Grade |
Grade PC: able to male and withstand, not to break short-circuit current |
Use category |
AC-33iB |
Rated impulse withstand voltage(KV) |
8KV |
Poles |
2P |
Weight (KG) |
0.81 |
LIFE |
Electrical:2000times; Mechanical: 5000times |
Rated limited short-circuit current Iq |
50KA |
SCPD (FUSES ) |
RT16-00-63A |
Control circuit |
Rated supply voltage Us: AC230V, 50Hz Correct Working condition:85% Us~110% Us |
Ancillary circuit |
Contact capacity: AC230V 50Hz, Ie=5A |
Contact transfer time |
<50ms |
Operating transfer time |
<50ms |
Return transfer time |
<50ms |
Off-time |
<50ms |
