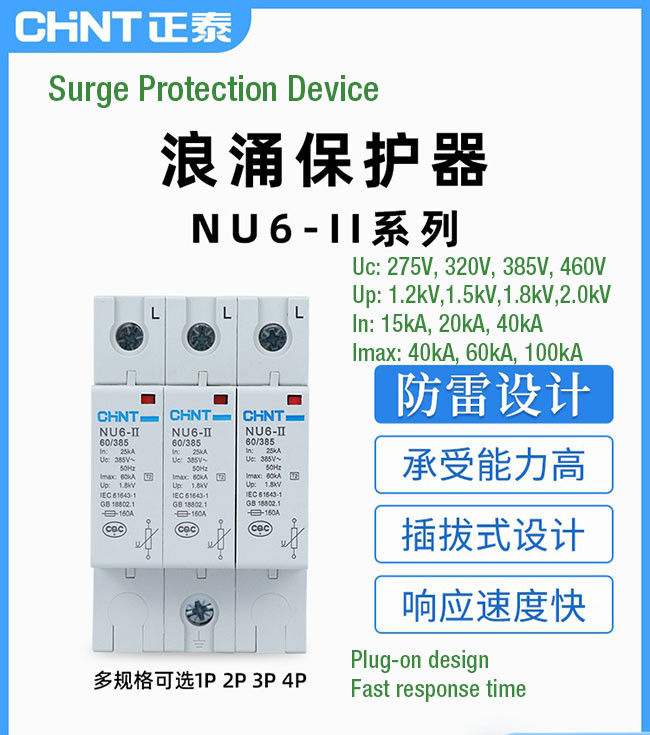

Max. Discharge Current: | 40kA, 60kA, 100kA | Max. Continuous Working Voltage: | 275VAC, 320VAC, 385VAC, 460VAC |
---|---|---|---|
Nominal Discharge Current: | 15kA、25kA、40kA | Up: | 1.2kV, 1.5kV, 1.8kV, 2.0kV |
Pole: | 1,2,3,4 | ||
Highlight: | ac contactor switch,electrical control equipment |
Chint Over-voltage Under-voltage Protection Relay 230V/400V Home or Industrial Use in 1-phase or 3-phase
General

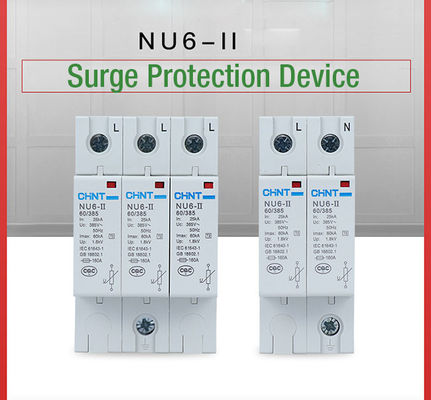

NU6-II series surge protector is suitable for AC 50Hz, rated voltage 230V/400V three-phase power distribution and control system, meets SPD level test, used to suppress transient overvoltage lower than equipment withstand shock overvoltage, discharge discharge Energy to protect system circuits and equipment.
It is suitable for grading with other series of surge protectors to realize a layered protection system, so that the low-voltage distribution system can be more widely and effectively protected.
Meet the standards: GB/T 18802.1, IEC 61643-1, EN 61643-11, and obtain CQC, CE, CB and other certifications.
1.1 IEC test category: Class II test (8/20us)
1.2 Number of poles: 1, 2,3, 4;
1.3 Electric ratings: 230/400V, AC50/60Hz;
1.4 Application: Protect electric system and on-loading electrical apparatus from thunder and instantaneous over-voltage;
1.5 Standard: IEC 61643-1, EN 61643-11

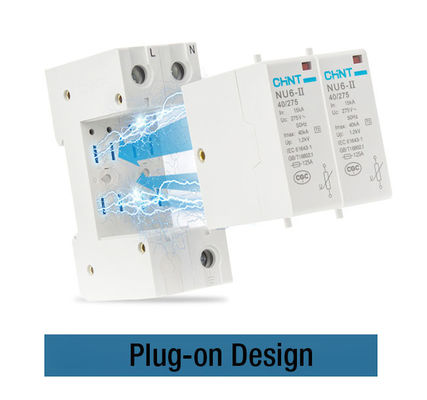

Complete flow capacity level to meet different location installation requirements
Uc (L-N) reaches 350V, Uc (L-PE) reaches 440V, and the work after accessing the system is safe and reliable.
The full range of 1P/2P/3P/4P pole products provides phase-to-phase and neutral-to-ground common-mode protection. The full range of 1P+N/3P+N poles provides phase-to-neutral and phase-to-phase Full-mode protection from neutral to ground, suitable for grounding systems such as TT and TN
GB 18802.1-2011 conformity assessment, CQC comprehensive certification
The cooperation relationship between SPD and backup protection circuit breaker has been fully verified by Shanghai Lightning Protection Center.
How to select surge protectors
a. The voltage should be ≤Uc; b. Up<maximum impulse withstands; c. Different protectors should be selected according to various grounding system and protection mode.
Product Series |
NU6-II |
---|---|
product type |
Pluggable surge protector |
Product short name |
SPD |
Number of poles |
1P |
Output type |
Remote indication signal |
Surge protector application type |
Power distribution network |
Grounding system |
TN |
Surge protector test category |
(Type II) |
---|---|
Structure principle and action characteristics of surge protector |
MOV |
Rated working voltage [Ue] |
230 V 50/60 Hz |
Maximum continuous operating voltage [Uc] |
Common mode: 350 V (L - PE) |
Maximum [Up] voltage protection level |
Common mode <1.7 kV (L - PE) |
Local signal indication |
White/red mechanical indicator window |
Installation type |
Locking clip locking |
Installation method |
DIN rail mounting |
Width (multiple of 9mm) |
2 |
height |
85 mm |
width |
18 mm |
depth |
64 mm |
colour |
White (RAL 9003) |
Response time |
<= 25 ns |
Wiring ability |
Wiring or lower wiring on tunnel terminals 2.5...35 mm2 single strand hard wire |
Recommended cable |
4 mm2 fire (L) |
Tightening torque |
3.5 Nm |
standard |
GB 18802.1:2011 |
---|---|
certified product |
CQC |
IP protection level |
Front panel: IP40 |
Operating temperature |
-25...60 °C |
Storage ambient temperature |
-40...70 °C |
