Modular AC Contactor Low Voltage Components 1 2 3 4 Pole 20A 25A 40A 63A 230V/400V

Modular AC Contactor Low Voltage Components 1 2 3 4 Pole 20A 25A 40A 63A 230V/400V

  • Modular AC Contactor Low Voltage Components 1 2 3 4 Pole 20A 25A 40A 63A 230V/400V
  • Modular AC Contactor Low Voltage Components 1 2 3 4 Pole 20A 25A 40A 63A 230V/400V
  • Modular AC Contactor Low Voltage Components 1 2 3 4 Pole 20A 25A 40A 63A 230V/400V
  • Modular AC Contactor Low Voltage Components 1 2 3 4 Pole 20A 25A 40A 63A 230V/400V
Modular AC Contactor Low Voltage Components 1 2 3 4 Pole 20A 25A 40A 63A 230V/400V
Product Details:
Place of Origin: China
Brand Name: Chint
Certification: CE,CCC
Model Number: NCH8
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: USD4~USD20
Packaging Details: Standard export carton
Delivery Time: 5-8 working days or bulk order negotiate
Payment Terms: T/T, Western Union
Supply Ability: 5,000pcs/month
Contact Now
Detailed Product Description
Rated Current: 20A, 25A, 40A, 63A Rated Voltage: 230/400VAC
Pole: 2P,4P, 18mm-36mm-54mm Insulation Voltage: 500V
Install: DIN Rail Mount
High Light:

ac contactor switch

,

electrical control equipment

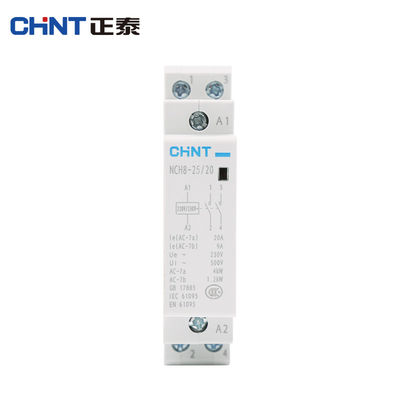

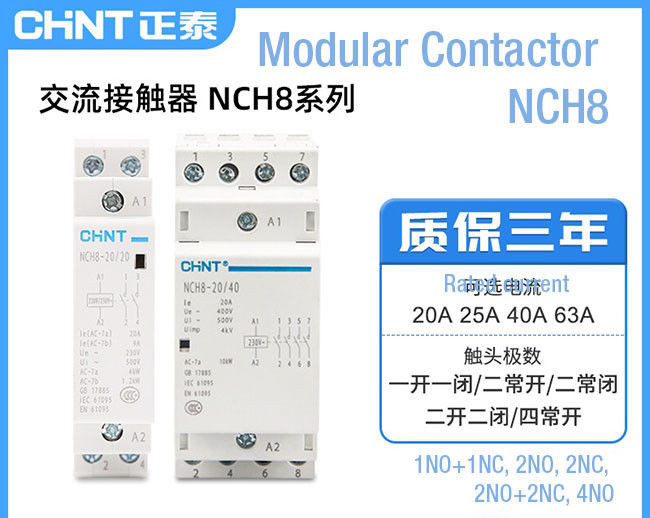

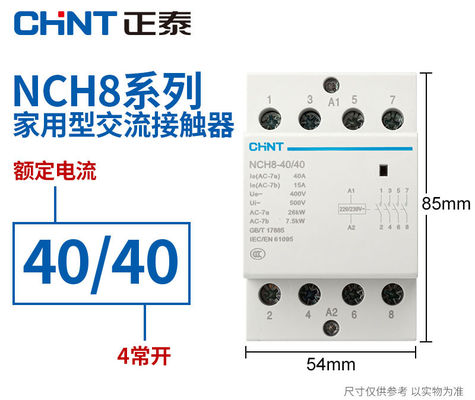

Chint NCH8 Modular AC Contactor 1,2,3,4 Pole 20A,25A,40A,63A 230V/400V Home or Industrial Use IEC 61095

General

  • Product standard IEC61095/GB17885
  • Product Certification CCC CE
  • Product poles 1,2,3,4
  • Rated current 16,25,40A,63A,100A
  • Main contact type NO, NC, NO+NC
  • Protection class IP20B (terminal), IP40 (installed in the distribution box)
  • Ambient temperature -5 ° C to +60 ° C (When the contactor is installed in a distribution box with an internal temperature range of 50 ° C to 60 ° C, there is a need to use a spacer between the contacts , its product number is A9A27062)
  • Storage ambient temperature -40°C~+70°C
  • Minimum noise
  • Indicate mechanical position

Features

1.1 Electric ratings: up to 20A, 25A, 40A, 63A, 230V, 400V AC50/60Hz;

1.2 Utilization category: AC-1, AC-7a, AC-7b; 1

1.3 Standard: IEC/EN 61095

2.1 Compact design and modularization design;

2.2 Insulation material with excellent performances has been adopted to enhance the operation security to a great extent;

2.3 Elegant appearance. A mounting instruction diagram is appended for convenient operation; 2.4 No noise during operation



main information
Range of product
Chint Modular
product name
modular AC Contactor
product type
Contactor
Product short name
NCH8
Applications
Motor heating and lighting
Poles
1P
Rated operating current [Ie]
25 A AC-7A
8.5 A AC-7B
Loop contact type
1 NO
Network Type
AC
Control type
remote control
Control loop voltage
230...240 V AC 50 Hz
Additional information
Network frequency
50 / 60Hz
Rated working voltage [Ue]
250 V AC 50 Hz
Maximum power
1.2 W on 250 V AC
Rated insulation voltage [Ui]
500 V AC 50/60 Hz
Rated impulse withstand voltage [Uimp]
4 kV
Control signal type
Self-holding
operating frequency
Number of switching operations / per day
Local signal indication
Trip indicator window
Pulling power (VA)
2.7 VA
(~50Hz pull-in) power consumption (VA)
9.2 VA
Installation type
Locking clip locking
Installation method
35 mm DIN rail
Width (multiple of 9mm)
2
height
81 mm
width
18 mm
depth
60 mm
colour
white
Mechanical life
1000000 times
Electrical life
100000 times IEC/EN 61095 25 A 50 Hz AC-7A
30000 times IEC/EN 61095 8.5 A 50 Hz AC-7B
30000 times IEC/EN 61095 50 Hz AC-7C
100000 EN/IEC 60947-4-1 50 Hz AC-1
30000 times EN/IEC 60947-4-1 50 Hz AC-3
30000 times EN/IEC 60947-4-1 50 Hz AC-5A
30000 times EN/IEC 60947-4-1 50 Hz AC-5B
Wiring ability
Control circuit: tunnel terminal 2 cable 1.5 mm2 single strand hard wire
Power circuit: tunnel terminal 1 cable 1...4 mm2 cord
Power circuit: tunnel terminal 1 cable 1.5...6 mm2 single strand hard wire
Control circuit: tunnel terminal 1 cable 1.5...2.5 mm2 single strand hard wire
Control circuit: tunnel terminal 2 cable 1.5...2.5 mm2 cord
Tightening torque
Control loop: 0.8 Nm
Power circuit: 0.8 Nm
