ABB S201S202S203S204 Miniature Circuit Breaker , MCB Circuit Breaker 1~100A 1 2 3 4P 1P+N

ABB S201S202S203S204 Miniature Circuit Breaker , MCB Circuit Breaker 1~100A 1 2 3 4P 1P+N

  • ABB S201S202S203S204 Miniature Circuit Breaker , MCB Circuit Breaker 1~100A 1 2 3 4P 1P+N
  • ABB S201S202S203S204 Miniature Circuit Breaker , MCB Circuit Breaker 1~100A 1 2 3 4P 1P+N
  • ABB S201S202S203S204 Miniature Circuit Breaker , MCB Circuit Breaker 1~100A 1 2 3 4P 1P+N
  • ABB S201S202S203S204 Miniature Circuit Breaker , MCB Circuit Breaker 1~100A 1 2 3 4P 1P+N
ABB S201S202S203S204 Miniature Circuit Breaker , MCB Circuit Breaker 1~100A 1 2 3 4P 1P+N
Product Details:
Place of Origin: China
Brand Name: ABB
Certification: CE, CCC etc.
Model Number: S201,S202,S203,S204
Payment & Shipping Terms:
Minimum Order Quantity: 12pcs / 1doz.
Price: USD6~80/unit
Packaging Details: standard in carton box
Delivery Time: 2~15days
Payment Terms: T/T, Western Union
Supply Ability: 100,000 pcs/month
Contact Now
Detailed Product Description
Model: S201,S202,S203,S204 Pole(s): 1,2,3,4, 1P+N
Volt: 220~240VAC, 380~400VAC Hz: 50~60Hz
Phase: 1/3 Standard: EN/IEC60898
Certification: CCC, CE, GS Etc. Breaking Capacity: Ics=Icn=6000A
Thermal Trip Curve: B,C,D Case Material: PC Thermal Formed
Wiring: Terminal Block, Busbar Duct Etc. IP20B Electric Shock Protection: Class II
Mechanical Life: 20,000 Electrical Life: 10,000
Highlight:

molded case circuit breaker

,

electric circuit breaker

ABB S201S202S203S204 MCB - Miniature Circuit Breaker 1~100A, 1P,2P,3P,4P,1P+N for electrical distribution IEC 60898





S200, SN201 Miniature Circuit Breaker - MCB

ABB Brand Original Made In China

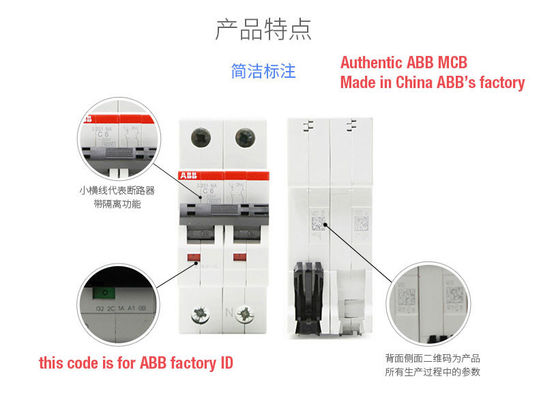

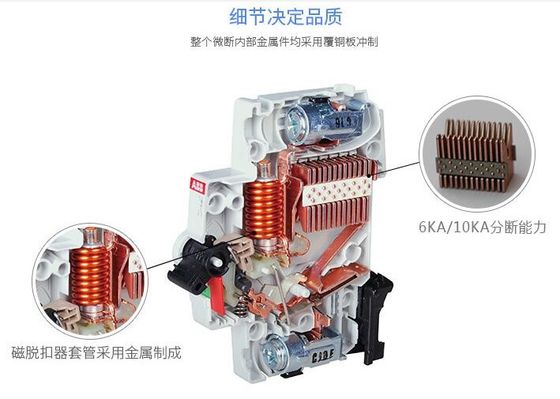

Miniature circuit breakers ensure electrical safety in multiple applications. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the magnetic tripping mechanism for short circuit protection.

Main benefits

  • Extra-wide and complete range of MCBs to cover most applications and markets

  • Compliance to worldwide product standards (IEC, UL, CSA)

  • Space and time saving thanks to the unique bottom-fixing auxiliary contact

  • Established and certified quality

Main features

  • Characteristics: B, C, D

  • Configurations: 1P, 1P+N, 2P, 3P, 3P+N, 4P

  • Breaking capacities up to 15 kA

  • Rated currents up to 63A

  • Real contact position indication, directly connected to the moving contact



Product range

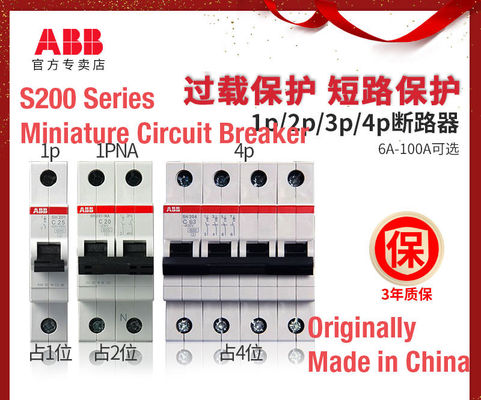

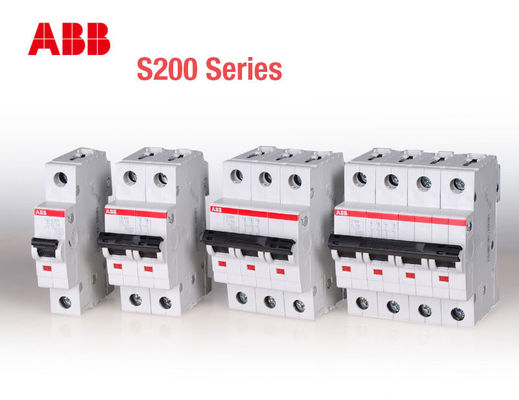

S 200

Designed to ensure efficiency and protection

  • For domestic or small commercial installations up to 10 kA breaking capacity

  • For industrial installations up to 25 kA breaking capacity

  • IEC/EN 60898-1, IEC/EN 60947-2 and many other standards and approvals

  • A wide range of accessories is available!

Special versions

  • Developed to meet the needs of different segments

  • S 200MUC for AC/DC applications

  • S 200MTUC for train-applications



SN 201

  • 1P + N in only one module

  • Totally integrated in the pro M family

  • Sharing the wide section of accessories

  • Label carrier for easier identification of protected line

  • Contact position indicator on the level, with Green/Red color



S201-C63

General Information

  • Extended Product Type:

    S201-C63

  • Product ID:

    2CDS251001R0634

  • EAN:

    4016779551014

  • Catalog Description:

    Miniature Circuit Breaker - S200 - 1P - C - 63 ampere

  • Long Description:

    System pro M compact S200 miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200 comply with IEC/EN 60898-1, IEC/EN 60947-2, UL1077 (for this code purchased in South America there is no UL certificate), allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200 to save 50% space.


  • ABB S201S202S203S204 Miniature Circuit Breaker , MCB Circuit Breaker 1~100A 1 2 3 4P 1P+N 0

    ABB S201S202S203S204 Miniature Circuit Breaker , MCB Circuit Breaker 1~100A 1 2 3 4P 1P+N 1

    ABB S201S202S203S204 Miniature Circuit Breaker , MCB Circuit Breaker 1~100A 1 2 3 4P 1P+N 2

    ABB S201S202S203S204 Miniature Circuit Breaker , MCB Circuit Breaker 1~100A 1 2 3 4P 1P+N 3

    Technical

    • Standards:

      IEC/EN 60898-1
      IEC/EN 60947-2
      UL 1077

    • Number of Poles:

      1

    • Tripping Characteristic:

      C

    • Rated Current (In):

      63 A

    • Rated Operational Voltage:

      acc. to IEC 60898-1 230 / 400 V AC
      acc. to IEC 60947-2 230 V AC

    • Power Loss:

      4.8 W
      at Rated Operating Conditions per Pole 4.8 W

    • Rated Insulation Voltage (Ui):

      acc. to IEC/EN 60664-1 440 V

    • Operational Voltage:

      Maximum (Incl. Tolerance) 253 V AC
      Maximum (Incl. Tolerance) 72 V DC
      Maximum 253 V AC
      Maximum 72 V DC
      Minimum 12 V AC
      Minimum 12 V DC

    • Rated Frequency (f):

      50 Hz
      60 Hz

    • Rated Short-Circuit Capacity (Icn):

      (230 / 400 V AC) 6 kA

    • Rated Ultimate Short-Circuit Breaking Capacity (Icu):

      (133 V AC) 20 kA
      (230 V AC) 10 kA

    • Rated Service Short-Circuit Breaking Capacity (Ics):

      (133 V AC) 15 kA

    • Energy Limiting Class:

      3

    • Overvoltage Category:

      III

    • Pollution Degree:

      3

    • Rated Impulse Withstand Voltage (Uimp):

      4 kV
      (6.2 kV @ sea level)
      (5.0 kV @ 2000 m)

    • Dielectric Test Voltage:

      50 / 60 Hz, 1 min: 2 kV

    • Housing Material:

      Insulation Group II, RAL 7035

    • Actuator Type:

      Insulation group II, black, sealable

    • Contact Position Indication:

      Red ON / Green OFF

    • Degree of Protection:

      IP20

    • Remarks:

      IP40 in enclosure with cover

    • Electrical Endurance:

      10000 AC cycle

    • Mechanical Endurance (Nendu):

      20000 cycle

    • Terminal Type:

      Screw Terminals

    • Screw Terminal Type:

      Failsafe Bi-directional Cylinder-lift Terminal

    • Connecting Capacity:

      Busbar 10 / 10 mm²
      Flexible with Ferrule 0.75 ... 25 mm²
      Flexible 0.75 ... 25 mm²
      Rigid 0.75 ... 35 mm²
      Stranded 0.75 ... 35 mm²

    • Tightening Torque:

      2.8 N·m

    • Recommended Screw Driver:

      Pozidriv 2

    • Mounting on DIN Rail:

      TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
      TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715

    • Mounting Position:

      Any

    Environmental

    • Ambient Air Temperature:

      Operation -25 ... +55 °C
      Storage -40 ... +70 °C

    • Resistance to Shock acc. to IEC 60068-2-27:

      25g / 2 shocks / 13 ms

    • Resistance to Vibrations acc. to IEC 60068-2-6:

      5g, 20 cycles at 5 ... 150 ... 5 Hz with load 0.8 In

    • Environmental Conditions:

      28 cycles
      with 55 °C / 90-96 %
      and 25 °C / 95-100 %

    • RoHS Status:

      Following EU Directive 2002/95/EC August 18, 2005 and amendment

    Technical UL/CSA

    • Maximum Operating Voltage UL/CSA:

      60 V DC
      480Y/277 V AC

    • Connecting Capacity UL/CSA:

      Busbar 18-8 AWG
      Conductor 18-4 AWG

    • Tightening Torque UL/CSA:

      25 in·lb

    • Interrupting Rating acc. to UL1077:

      (133 V AC) 6 kA
      (277 V AC) 6 kA
      (480Y / 277 V AC) 6 kA
      (60 V DC) 10 kA

    Dimensions

    • Product Net Width:

      17.5 mm

    • Product Net Depth / Length:

      69 mm

    • Product Net Height:

      88 mm

    • Product Net Weight:

      0.125 kg

    Container Information

    • Package Level 1 Units:

      10 piece

    • Package Level 1 Width:

      92 mm

    • Package Level 1 Depth / Length:

      183 mm

    • Package Level 1 Height:

      80 mm

    • Package Level 1 Gross Weight:

      1.295 kg

    • Package Level 1 EAN:

      4016779607360

    • Package Level 2 Units:

      120 piece

    • Package Level 2 Width:

      275 mm

    • Package Level 2 Depth / Length:

      395 mm

    • Package Level 2 Height:

      210 mm

    • Package Level 2 Gross Weight:

      14.8 kg

    • Package Level 2 EAN:

      4016779971256

    Ordering

    • Minimum Order Quantity:

      1 piece

    • Customs Tariff Number:

      85362010
