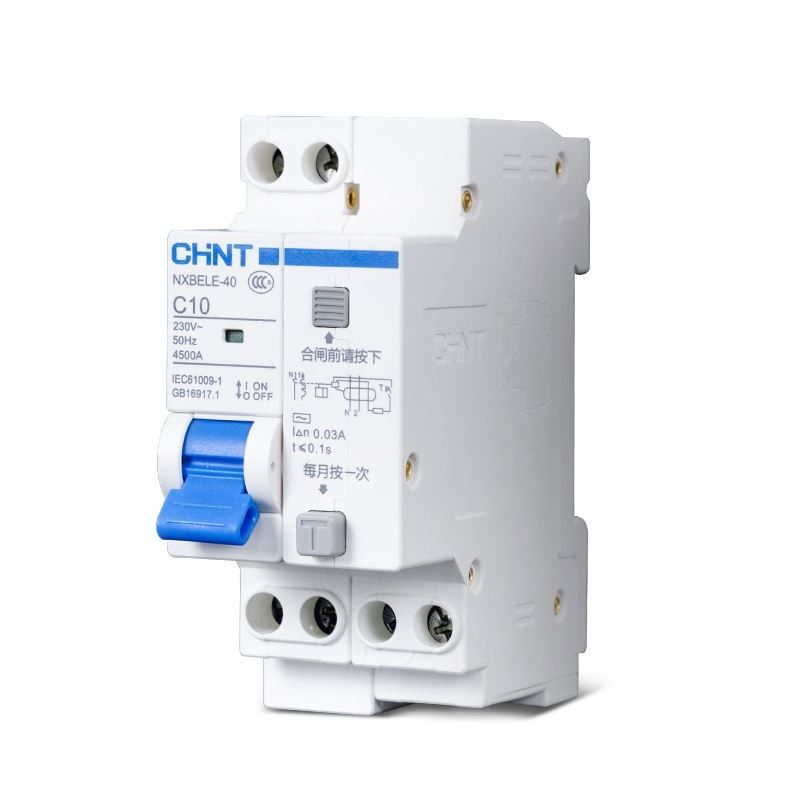

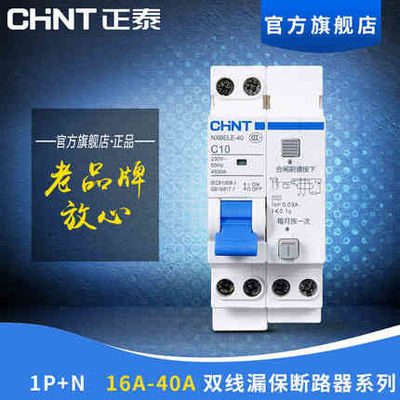

Earth Leakage Industrial Circuit Breaker 10~40A 1P+N AC230/400V 50~60Hz

Earth Leakage Industrial Circuit Breaker 10~40A 1P+N AC230/400V 50~60Hz

  • Earth Leakage Industrial Circuit Breaker 10~40A 1P+N AC230/400V 50~60Hz
  • Earth Leakage Industrial Circuit Breaker 10~40A 1P+N AC230/400V 50~60Hz
  • Earth Leakage Industrial Circuit Breaker 10~40A 1P+N AC230/400V 50~60Hz
  • Earth Leakage Industrial Circuit Breaker 10~40A 1P+N AC230/400V 50~60Hz
Earth Leakage Industrial Circuit Breaker 10~40A 1P+N AC230/400V 50~60Hz
Product Details:
Place of Origin: China
Brand Name: Chint
Certification: CE, CCC etc.
Model Number: NXBLE-40, NXBELE-40
Payment & Shipping Terms:
Minimum Order Quantity: 12pcs / 1doz.
Price: USD25~35/unit
Packaging Details: standard in carton box
Delivery Time: 2~15days
Payment Terms: T/T, Western Union
Supply Ability: 100,000 pcs/month
Contact Now
Detailed Product Description
Model: NXBLE-40, NXBELE-40 Pole(s): 1P+N
Volt: 220/230/240V Hz: 50~60Hz
Phase: 1/3 Standard: EN/IEC60898, IEC60947
Certification: CCC, CE, GS Etc. Breaking Capacity: Ics=Icn=6000A, 4500A
Thermal Trip Curve: C,D Case Material: Nylon PA6 Recyclable
Wiring: Terminal Block, Busbar Duct Etc. IP20B Electric Shock Protection: Class II
Mechanical Life: 10,000 Electrical Life: 5,000
Highlight:

industrial type circuit breaker

,

electric circuit breaker

Chint NXBLE-40 Earth Leakage Circuit Breaker with Overload Protection 10~40A 1P+N for AC230/400V Use





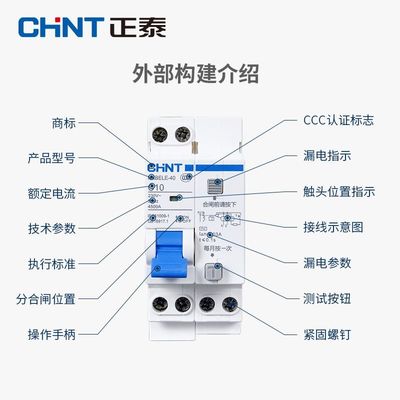

RCBO, ELCB NXBLE-40

CHINT Made In China

AC Use Earth Leakage Circuit Breakers 10403 A



Miniature Circuit Breakers for AC Current circuits, offering terminal distribution installation protection



The NXBLE-40 is a miniature circuit breaker that offers AC current circuit protection. It protects circuits against short-circuit currents and overload currents.

NXBLE-40 mini circuit breaker is used in lighting distribution system or motor distribution system for protection overload and short-circuit in the system. The product is neoteris in structure, light in weight, reliable and excellent in performance. It has high breaking capacity, can trip quickly, and its case and items are adopted by high fire-resistant and shockproof plastics. The product with long life, is mainly used in AC 50Hz/60Hz single-pole 240 or two three, four-pole 415V circuit for overload and short-circuit protection as well as for unfrequent on-and-off switching electric equipment and lighting circuit in normal case. The products comply with IEC 60898 & BS 3711.

  • Compliant with IEC60898, IEC61009

  • Available in 1P+N

  • C, D tripping curve

  • Up to 500V AC.

NXBLE MCB combines the following functions:
b Protection of circuits against short-circuit currents
b Protection of circuits against overload currents
b Control
b isolation



Specification Table

Standard

Rated Current (A)

Pole

Voltage(V)

Breaking Capacity(A)

BS3871-1 IEC60898

1 to 40

1P+N

230/240














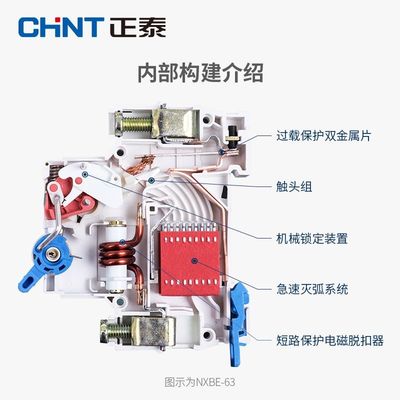

CONSTRUCTION AND FEATURE
. Capable of switch electric circuit with load
. Capable of quickly releasing stored energy operation
. Adaptable to padlock device
. Contact position indication
. High short-circuit current withstand capacity
. High lighted of high making and breaking capacity
. Used as main switch for household and similar installation

TECHNICAL DATA
. Pole NO.:1P+N
. Rated Current(A):10,16,20,25,32,40
. Rated frequency: 50/60Hz
. Rated voltage: 230/400V AC
. Rated withstand current: 1000A Within lesc
. Electro-mechanical endurance: 10000 Cycles
. Rated short-circuit making capacity: 4500A, 6000A
. Connection Capacity: Rigid conductor 25mm2
. Connection Terminal:
. Screw terminal
. Pillar terminal with lamp
. Installation:
. Panel mounting

OVERALL & INSTALLATION DIMENSIONS



Standard



IEC/EN 61009-1

Mechanical
features

Electrical life



4000

Mechanical life



10000

Protection degree



IP20

Reference temperature for
setting of thermal element

30

Ambient temperature(with daily
average≦35℃

-5..+40

Storage temperation



Installation

Terminal connection type



Cable//U-type busbar/pin-type busbar

Terminal size top/bottom for cable

mm2

25

AWG

18-3

Terminal size top/bottom for busbar

mm2

25

mm2

18-3

Tightening torque

N*m

2

In-Ibs.

18

Mounting



On DN rail EN 60715(35mm)by meas of fast clip device

Connection



From top and bottom

Rated current
In (A)

Temperature compensation coefficient under various operational temperature

-10℃

0℃

10℃

20℃

30℃

40℃

50℃

55℃

60℃

6

1.2

1.14

1.09

1.05

1.00

0.96

0.8

0.75

0.7

10-32

1.18

1.12

1.08

1.04

100

0.96

0.92

0.88

0.84

40

1.16

1.12

1.07

1.03

1.00

0.97

0.87

0.83

0.80



Standard



IEC/EN 61009-1

Electrical
features

Rated current In

A

6,10,16,20,25,32,40,50,63

poles



1P+N,2P,3P,4P

Rated voltage Ue

V

230/400

Insulation voltage Ui

V

500

Rated frequency

Hz

50/60Hz

Rated breaking capacity

KA

6000

Rated impelse withstand voltage(1.2/50)UimpStandard

V

4000

Dielectric test voltage at ind,Fred,for 1 min

KV

2

Polluttion degree



2

Themo-magnetic release characteristis



B,C,D
